Quick Start
Step 2: Opening an Offline Configuration Window
To open an offline Configuration Window, click the New icon from the toolbar or select New
from the File menu.

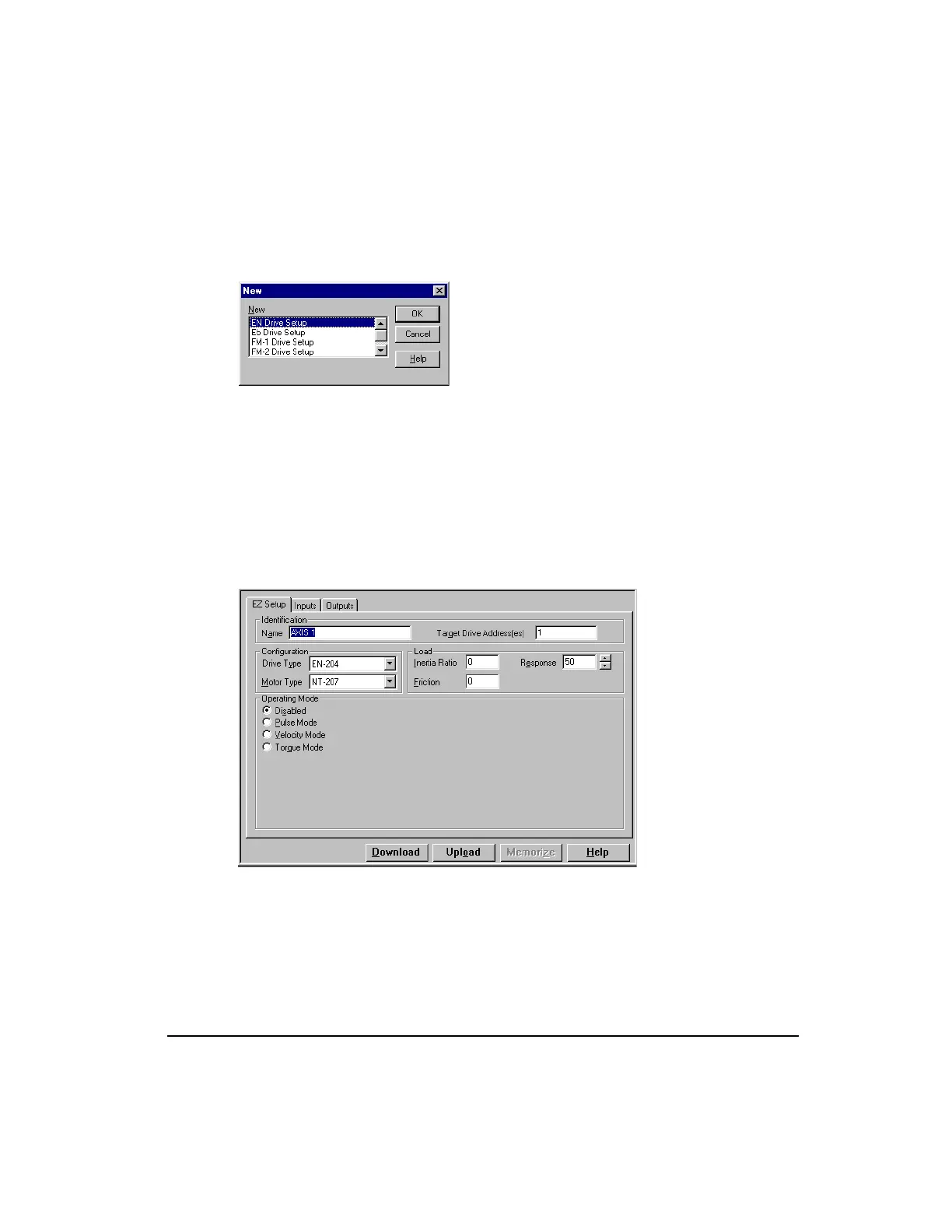

Figure 96: New Dialog Box
When the Predefined Setup Selection dialog box appears, select the desired predefined setup
and press the OK button. A new Configuration Window will be displayed.
All drive setup parameters are accessible in the tabs of the offline configuration window.
You can now proceed to setup the drive parameters as desired.
Step 3: Entering General Drive Setup Information
The EZ Setup tab contains system data such as drive type, motor type and axis name.
Figure 97: Offline EZ Setup Tab
Identification Group:
1. Enter an identifying name in the “Name” box for the drive you are setting up. You can
use up to 24 alpha-numeric characters.
