Epsilon Eb and EN Drives Reference Manual
2. Enter the “Target Drive Address(es)” to which you wish to download the setup
information. Unless you have changed the Modbus address of your drive, leave this
parameter set to the default value of 1.
You may use commas (,) or spaces ( ) to separate individual drive addresses or you may
use hyphens (-) to include all the drive addresses within a range. For example, if you
wanted to download to drives 1, 3, 4, 5, 6, 7 and 9 you could enter the addresses like this:
1,3-7,9.
Configuration Group:
EZ Setup view, drive type and motor type are available. Detail Setup view, drive type and line
voltage are available. Motor type is selected using the Motor tab.
1. Click the down arrow of the “Drive Type” list box, then select the drive model for the
drive you are currently setting up.
2. Click the down arrow of the “Motor Type” list box, then select the motor connected to
the drive you are setting up. PowerTools FM will only display the motor models that are
compatible with the “Drive Type” you selected.
3. Click the down arrow of the “Line Voltage” list box and select the voltage (115 or 230)
which will be powering the drive (EN drive only).
Positive Direction Selections:
In Detail Setup view, click which direction, clockwise (CW) or counterclockwise (CCW), is
to be considered as motion in the positive direction.
Note
CW and CCW rotation is determined by viewing the motor from the shaft end.

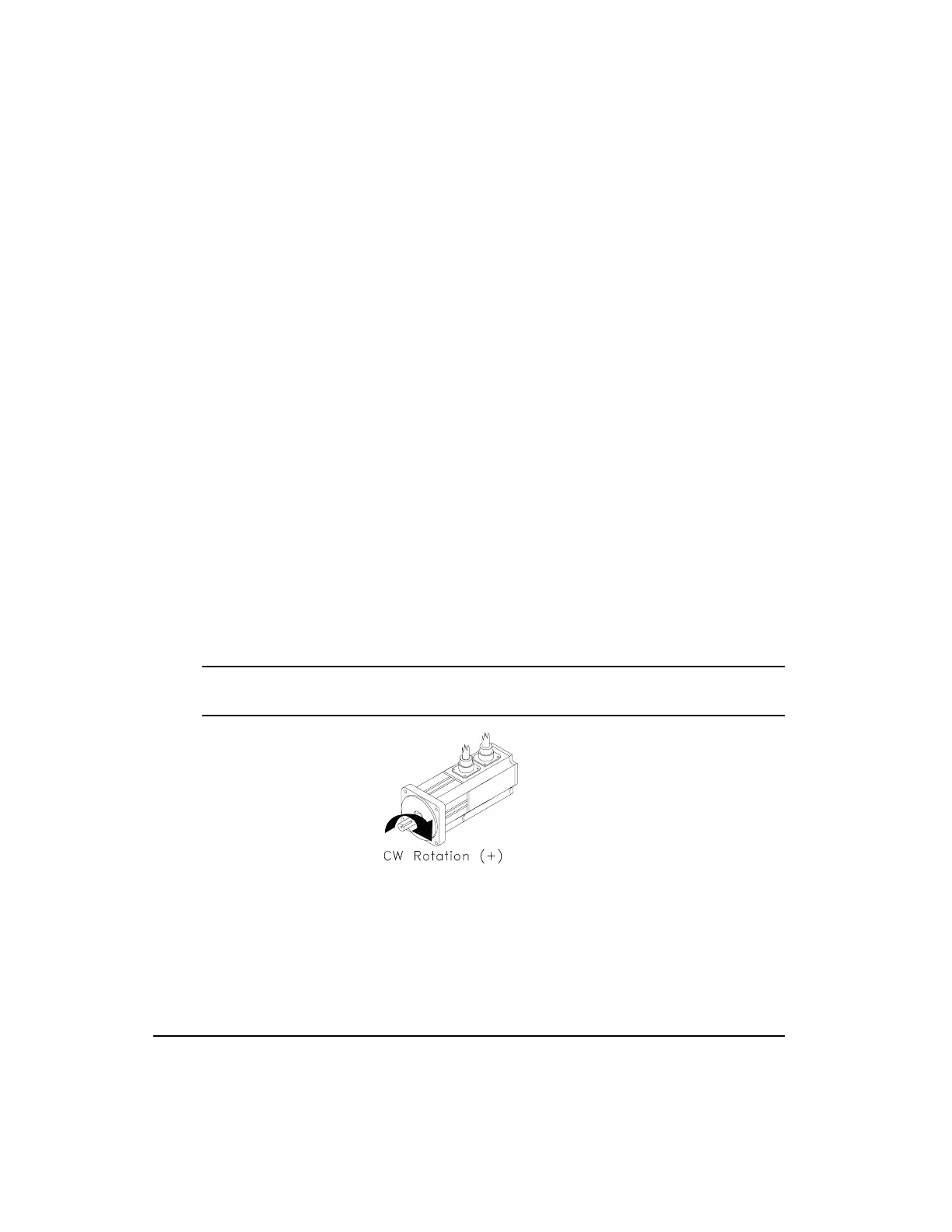

Figure 98: Clockwise Motor Rotation
Step 4: Selecting an Operating Mode
Depending on the mode you select, PowerTools FM software will display related submodes
and/or additional parameters that pertain to the main operating mode you selected.
