CI-ControlWave EFM Appendix F / F-3

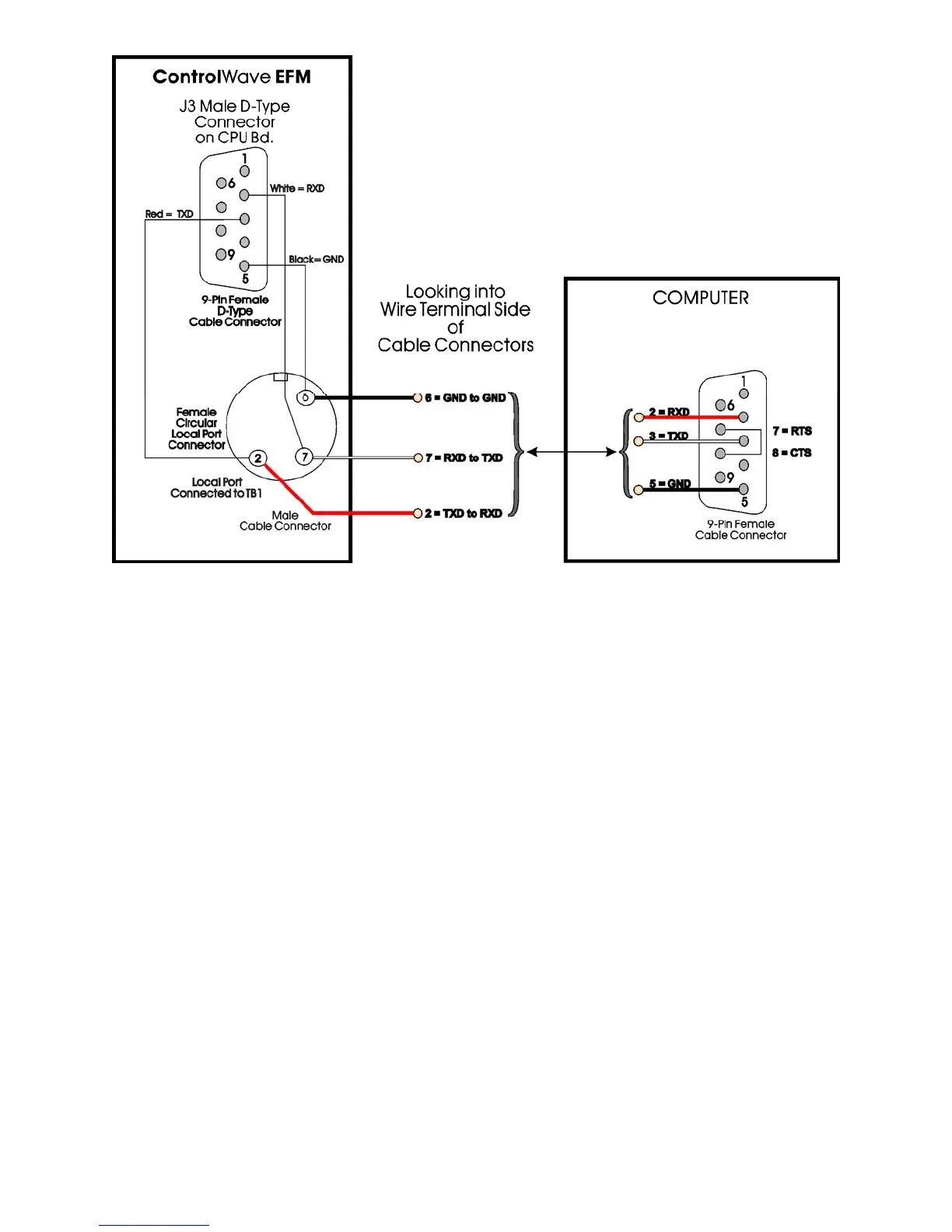

Figure F-2B - PC Connected to ControlWave EFM (via Circular Local Port)
Bristol Cable Part Number 395402-01-8 = 10 Foot Comm. Cable
Bristol Cable Part Number 395402-02-6 = 25 Foot Comm. Cable
F.3 WebBSI PROGRAM STARTUP
Ensure that the Local Communications Cable connections (at both the ControlWave EFM
& the PC) are secure.
If the WebBSI Web pages for the ControlWave EFM have been assigned as the default
Web pages for a node in OpenBSI, they can be invoked either from OpenBSI by right
clicking on the appropriate RTU and selecting RTU -> WebPage Access. Web pages are also
accessible by selecting Start -> Programs-> OpenBSI Tools-> WebPage Access -> CW EFC
Pages.
Six Category Functions are provided as follows:
Section F.4 (Security) Section F.7 (Chromatograph) Section F.10 (Special Functions)
Section F.5 (Station) Section F.8 (Logs)
Section F.6 (Meter Run) Section F.9 (Load/Save)
F.4 SECURITY CATEGORY FUNCTIONS
Three Web pages are accessible from the Security category section of WebBSI.
• Sign On/Off (Section F.4.1) • Contacts (Section F.4.3)
• Locate Nodes (Section F.4.2)
