CI-ControlWave EFM Appendix F / F-7
When the Digital Output Mode is used, the user must enter the frequency of the pulses per
volume through the meter (in cubic feet).

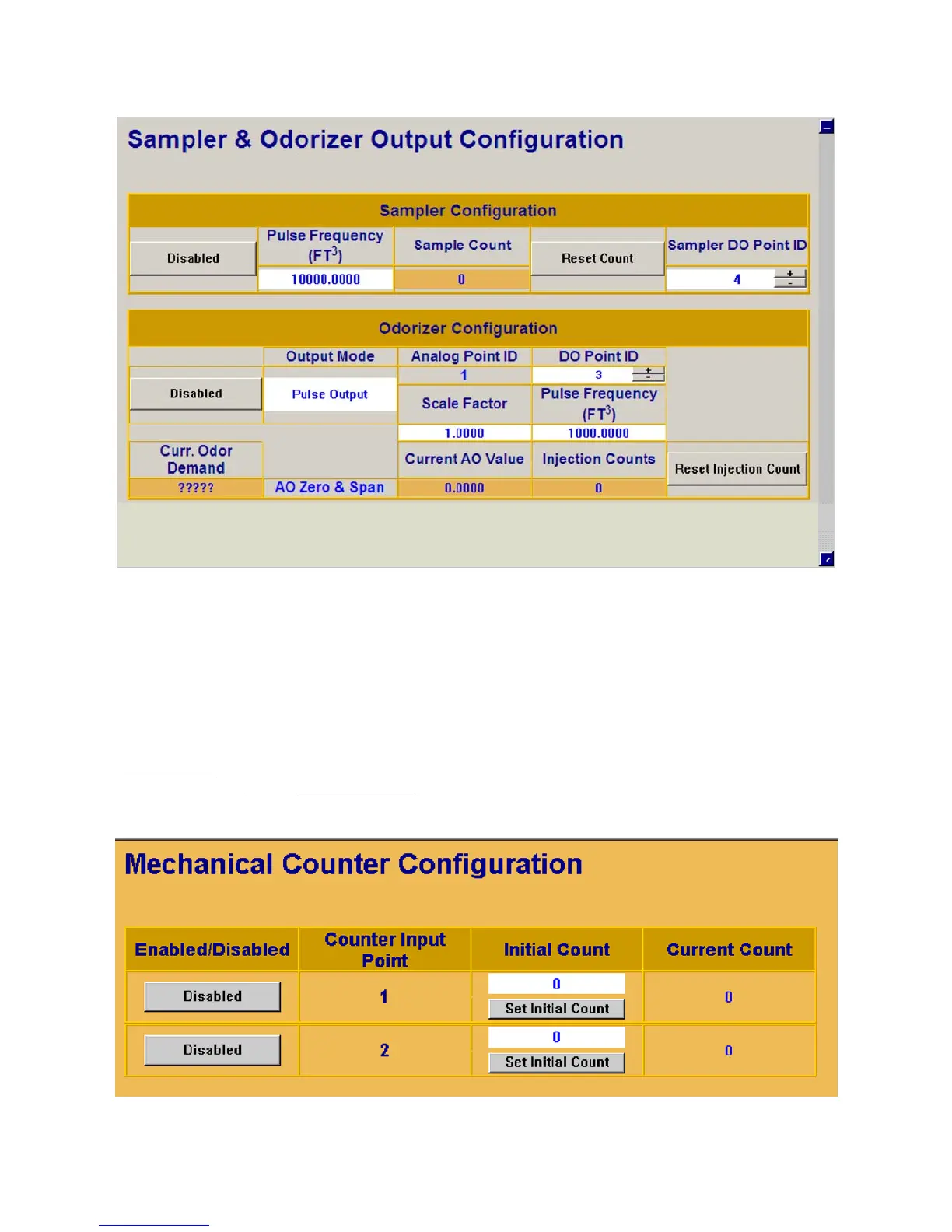

Figure F-6 - Sampler & Odorizer Configuration Web Page
F.5.3 Mechanical Counter Configuration
The Mechanical Counter Configuration section of the Sampler & Mechanical
Counter Configuration Web Page is used to simulate a mechanical counter. An
Enable/Disable button is used to activate/deactivate this function. Synchronization of the
ControlWave EFM Counter with an external Mechanical Counter is achieved via the
Initial Count
field. Determination of the volume of gas per pulse is performed utilizing the
Pulse
Frequency field. Current Count is the actual number of pulses received by the unit.
Users must select which HSC Input will be used with the Mechanical Counter.
Figure F-7 - Mechanical Counter Configuration Web Page
