F-20 / Appendix F CI-ControlWave EFM

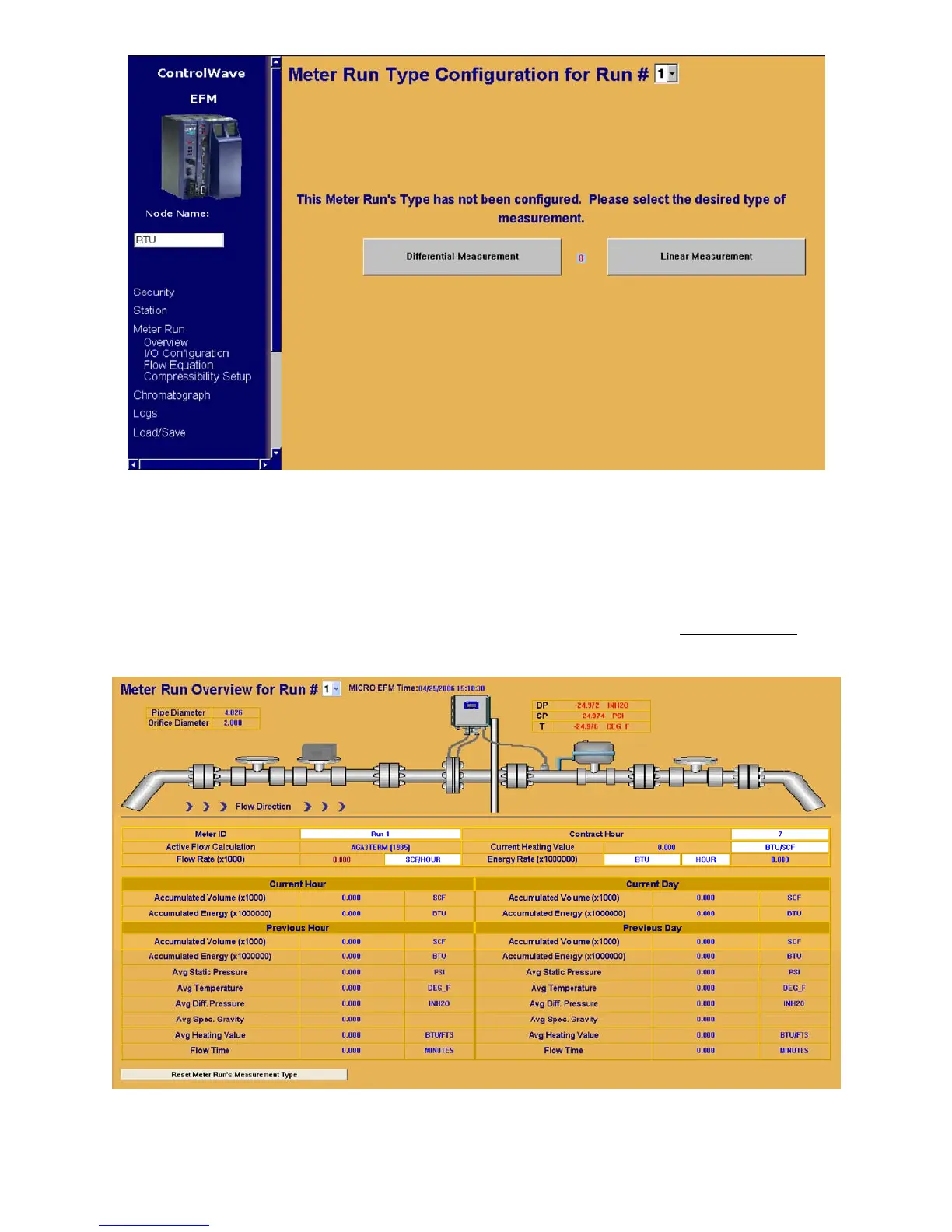

Figure F-12 - Meter Run Type Configuration WebPage
F.6.1.1 AGA3 - Orifice Meter
If the meter is configured as an Orifice Meter the following Read Only items are displayed:
Pipe Diameter & Orifice Diameter – To change these items, select Flow Equation
from
the left side menu section.
Figure F-13A - Meter Run Overview (1985 AGA3 – Orifice Meter) Web Page
To Next Page
