F-22 / Appendix F CI-ControlWave EFM
Reset Meter Run’s Measurement Type – This button (bottom of menu) allows the user
to reset the meter run’s measurement type (if a mistatke hass occurred during
configuration).
F.6.1.2 AGA7 Frequency Meter
If the meter is configured as a Linear Meter, following Read Only items are displayed:
Active Flow Calculation – Always AGA7
Corrected Flow Rate – Instantaneous Value
Uncorrected Flow Rate – Instantaneous Value
Current Heating Value – Instantaneous Value
Energy Value – Instantaneous Value
The following information is displayed for the Current Hour and Current Day:
Corrected Volume
Uncorrected Volume
Accumulated Energy
The following information is displayed for the Previous Hour and Previous Day:
Corrected Volume
Uncorrected Volume
Accumulated Energy
Average Static Pressure
Average Temperature
Average Specific Gravity
Average Heating Value
Flow Time

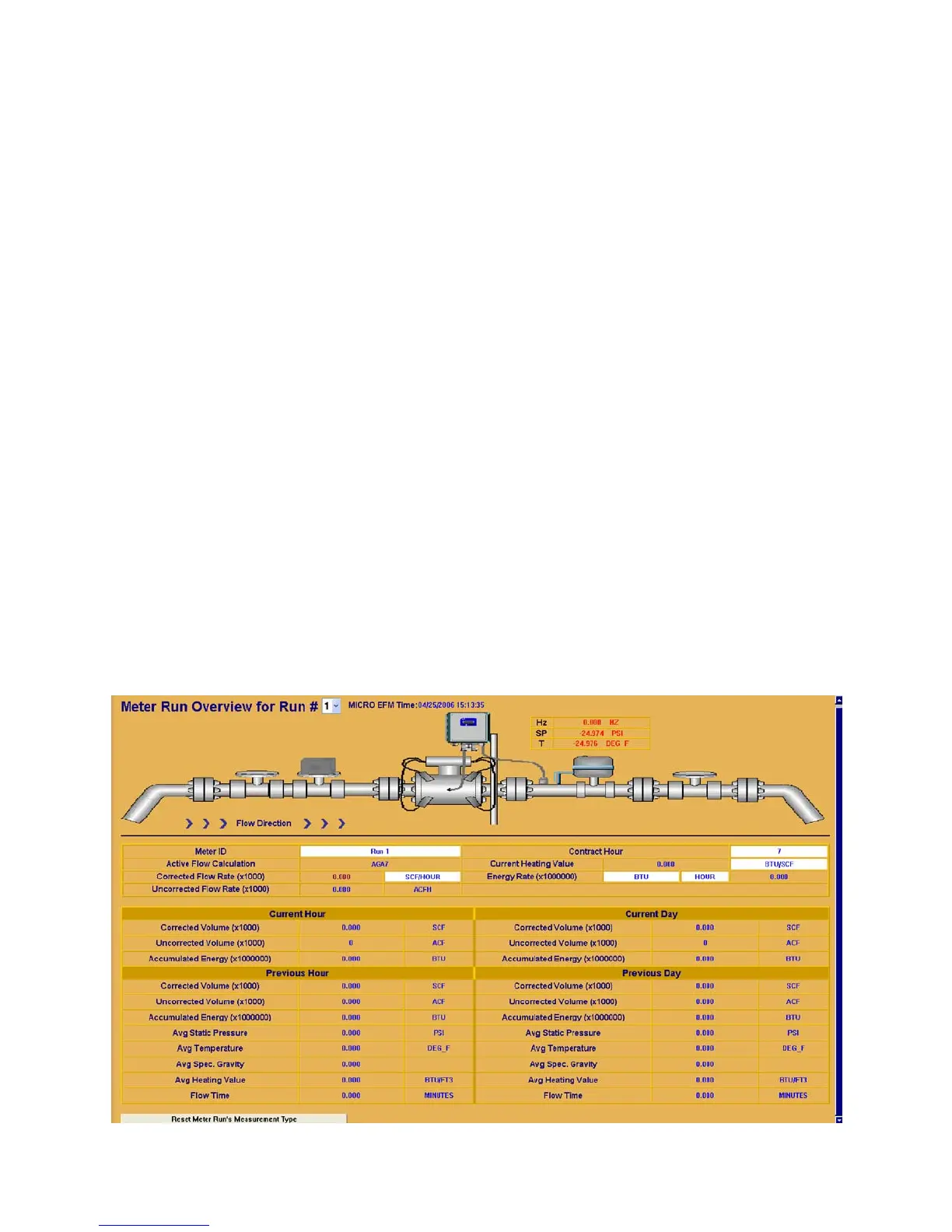

Figure F-14 - Meter Run Overview (AGA7 - Frequency Meter) Web Page
