F-34 / Appendix F CI-ControlWave EFM
F.7 CHROMATOGRAPH CATEGORY FUNCTIONS
The standard application program is configured for communicating with a Daniel 2251 Gas
Chromatograph, via a serial MODBUS interface. Users will configure the Chromatograph
interface from the “Chromatograph Setup” Web Page (Figure F-21).

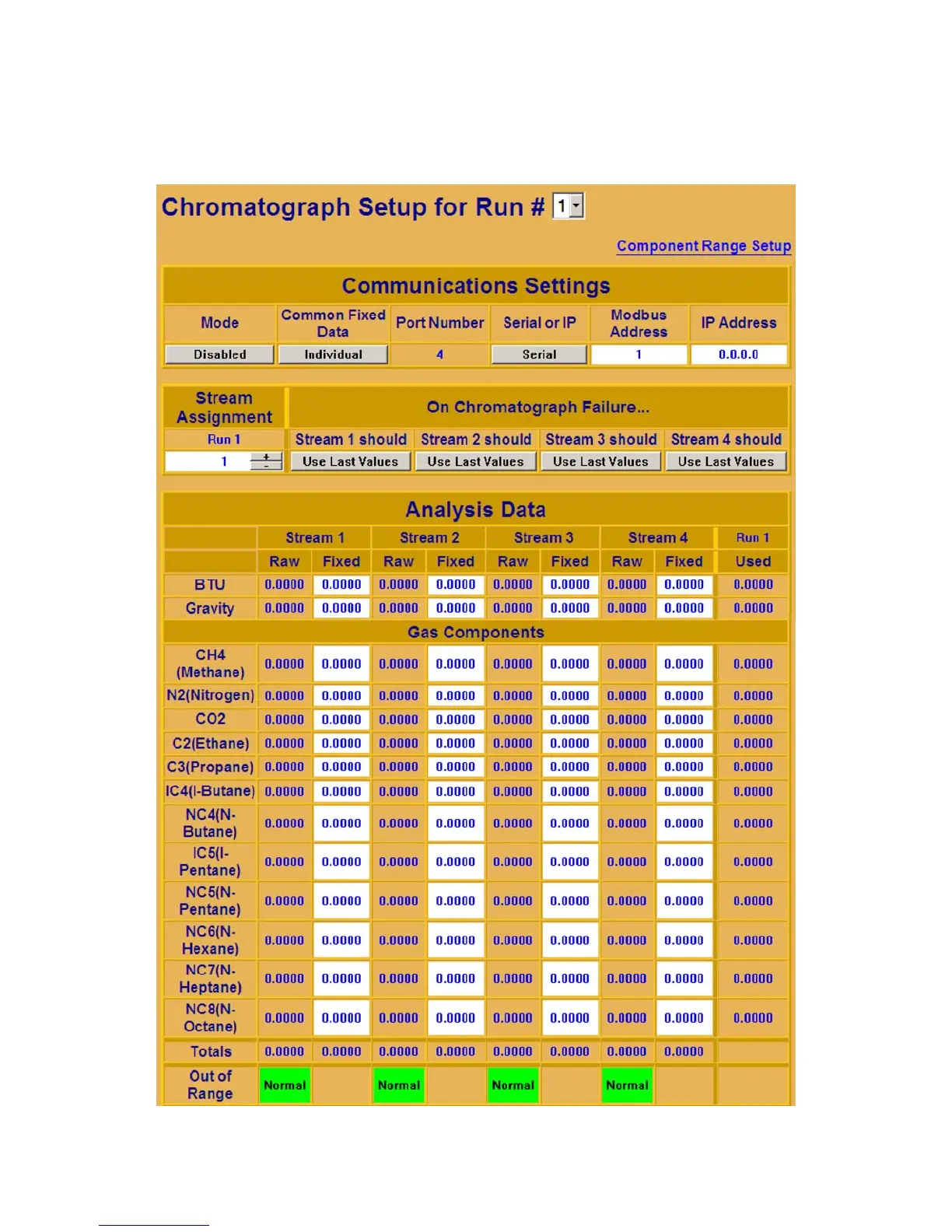

Figure F-21 - Chromatograph Setup Web Page
