1-18 / Introduction CI-ControlWave EFM

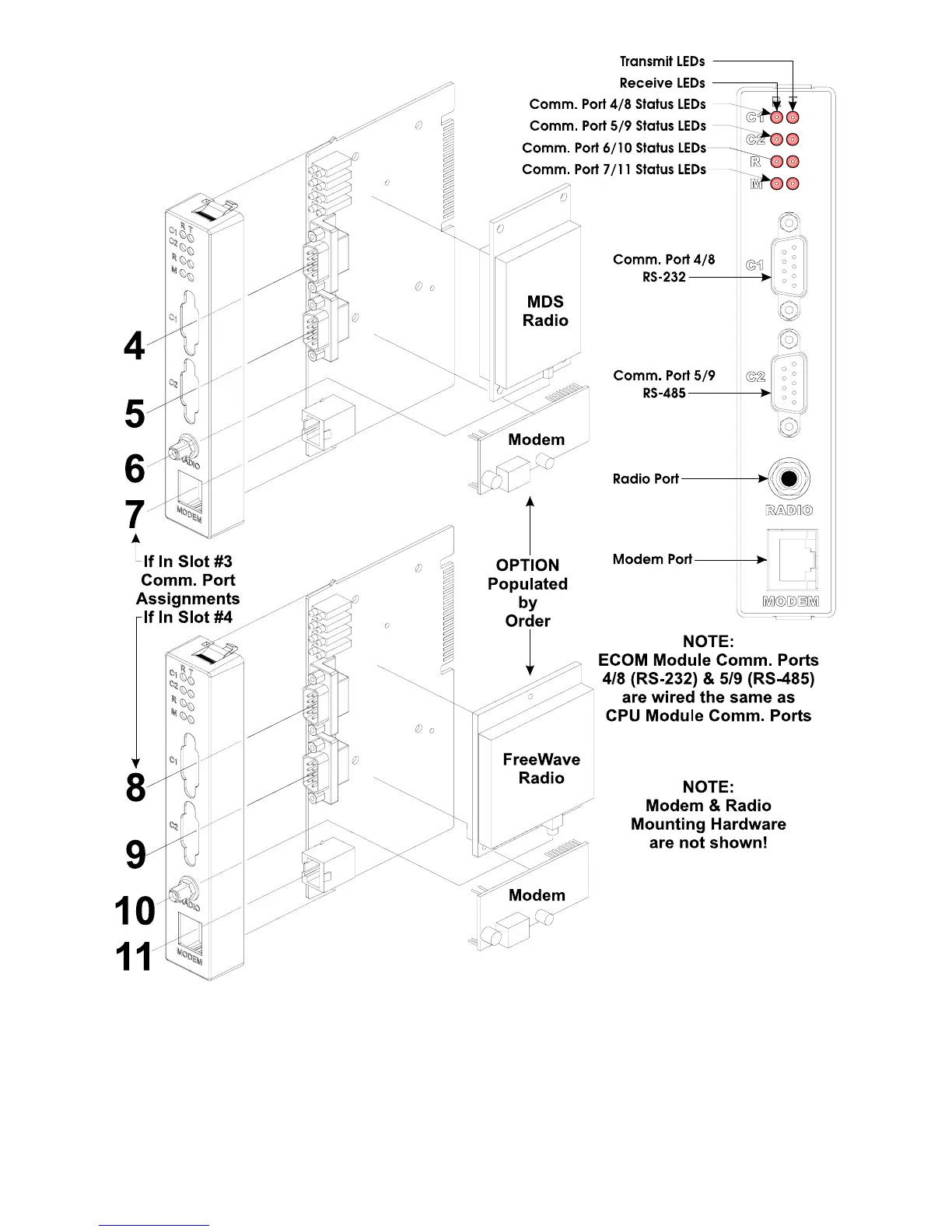

Figure 1-9 - ControlWave EFM Communications Module
1.3.8 Internal Mounting Brackets
Internal mounting brackets that support the various system components, such as the
Battery, ControlWave EFM Base Assembly, etc., are mounted on the ‘Fabrication Panel,’
which in turn is secured to the inner rear wall of the enclosure. An External radio or
