AGL_HA_ST_Discus_A2L_A1_EN_Rev00 23
4.8.2 200-Watt heater element
In compressors equipped with a deep oil sump, the heater element is inserted into a special chamber
and fixed to the compressor body.

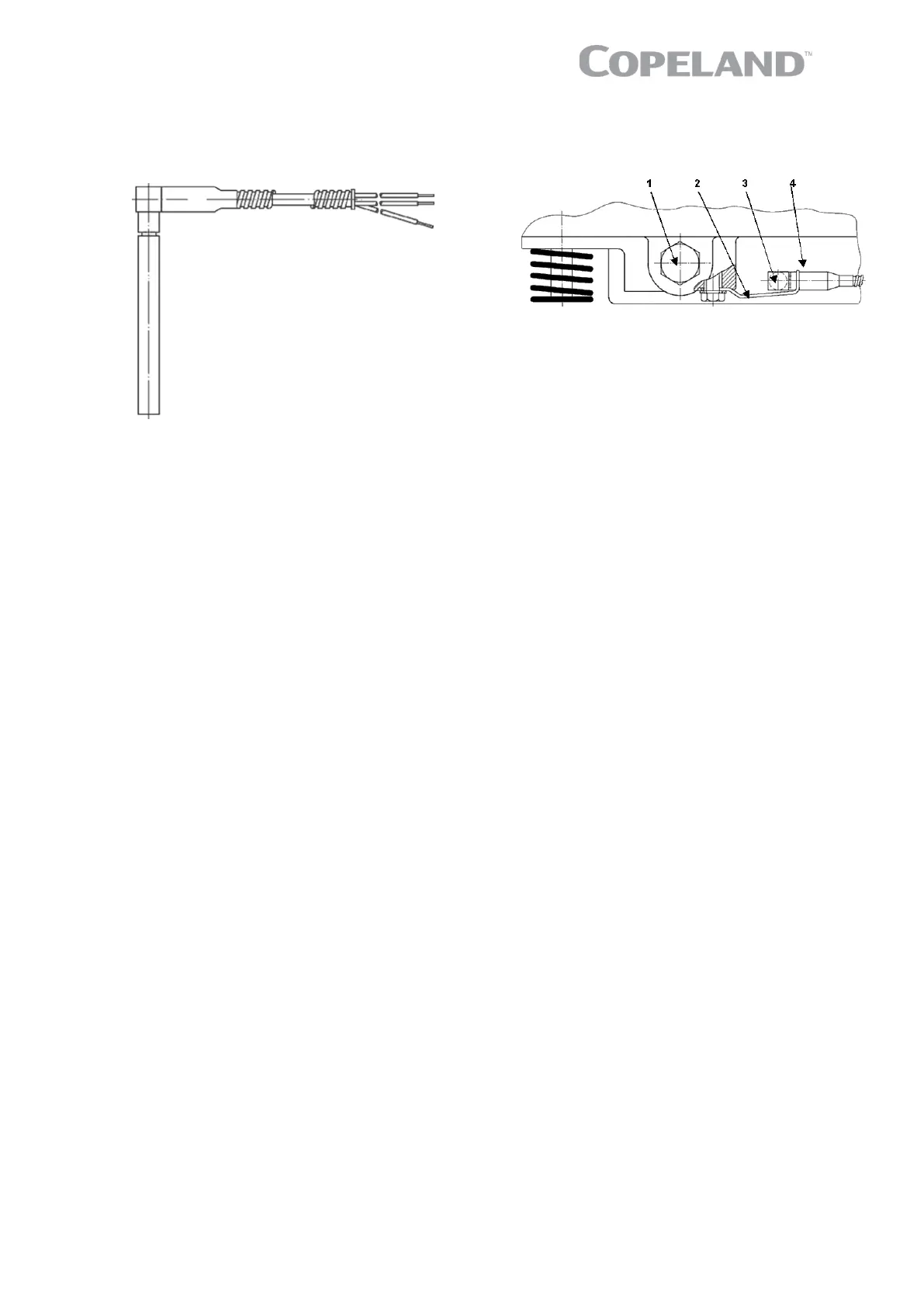

Figure 28: 200-Watt crankcase heater element
1. Magnetic plug
2. Securing piece
3. Heater element 200 W
4. Deep oil sump
