C6.2.24/0215-0515/E 5
A
mm
B
mm
C
mm
D
mm
E
mm
H
mm
ZBD58KCE
476.3
444.3
211.7
93.6
201.5
74.3
ZBD76KCE
533.2
501.2
253
122.1
242.8
92.3
ZBD76K5E
533.6
501.8
253.7
277.3
245.7
93
ZBD114K5E
881.5
519.5
271.3
295
263.3
93

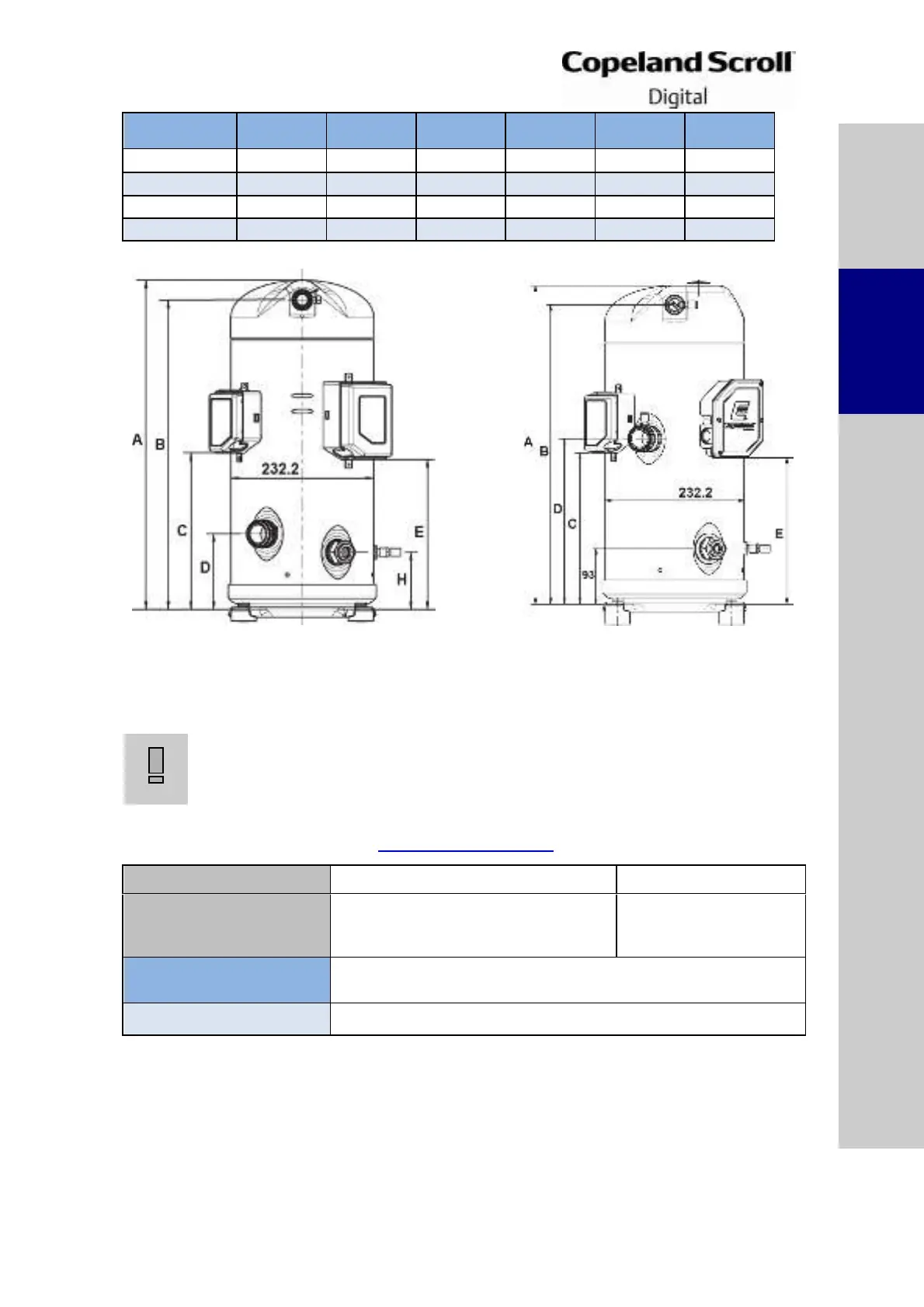

Figure 3: Dimensions ZBD58KCE & ZBD76KCE Figure 4: Dimensions ZBD76K5E & ZBD114K5E
2.4 Application range
2.4.1 Qualified refrigerants and oils
Oil recharge values can be taken from Copeland Scroll compressors brochures or Copeland
brand products Select software at
www.emersonclimate.eu.
Compressor
ZBD21K* to ZBD114K*
ZFD13K* to ZFD41K*
Qualified refrigerants
R404A, R407A, R407F, R448A,
R449A, R134a, R450A, R513A, R507;
R22 for ZBD30K* & ZBD45K* only
R404A, R407A, R407F,
R448A, R449A, R507
Copeland brand products
standard oil
Emkarate RL 32 3MAF
Servicing oils
Emkarate RL 32 3MAF / Mobil EAL Arctic 22 CC
Table 4: Qualified refrigerants and oils
Safety
instructions
Product
description
Installation
Electrical
connection
Starting up &
operation
Maintenance &
repair
Dismantling &
disposal

Table of Contents
