Dual-Compressor Module Installation
TOP
VIEW
FRONT
VIEW
SIDE
VIEW
BOTTOM
VIEW
2.4 Installation Clearance and Dimensions
Allow sufcient clearance on all sides for service access, especially for gas and electrical connections at
the rear of the Compressor Module. Check applicable national and local electrical codes.
Cooling air ow is back to front—from the gas connection end to the oil cooler end. Do not block or restrict
the cooler fans or oil cooler.
Refer to Figure 4 for the dimensions of the Compressor Module.

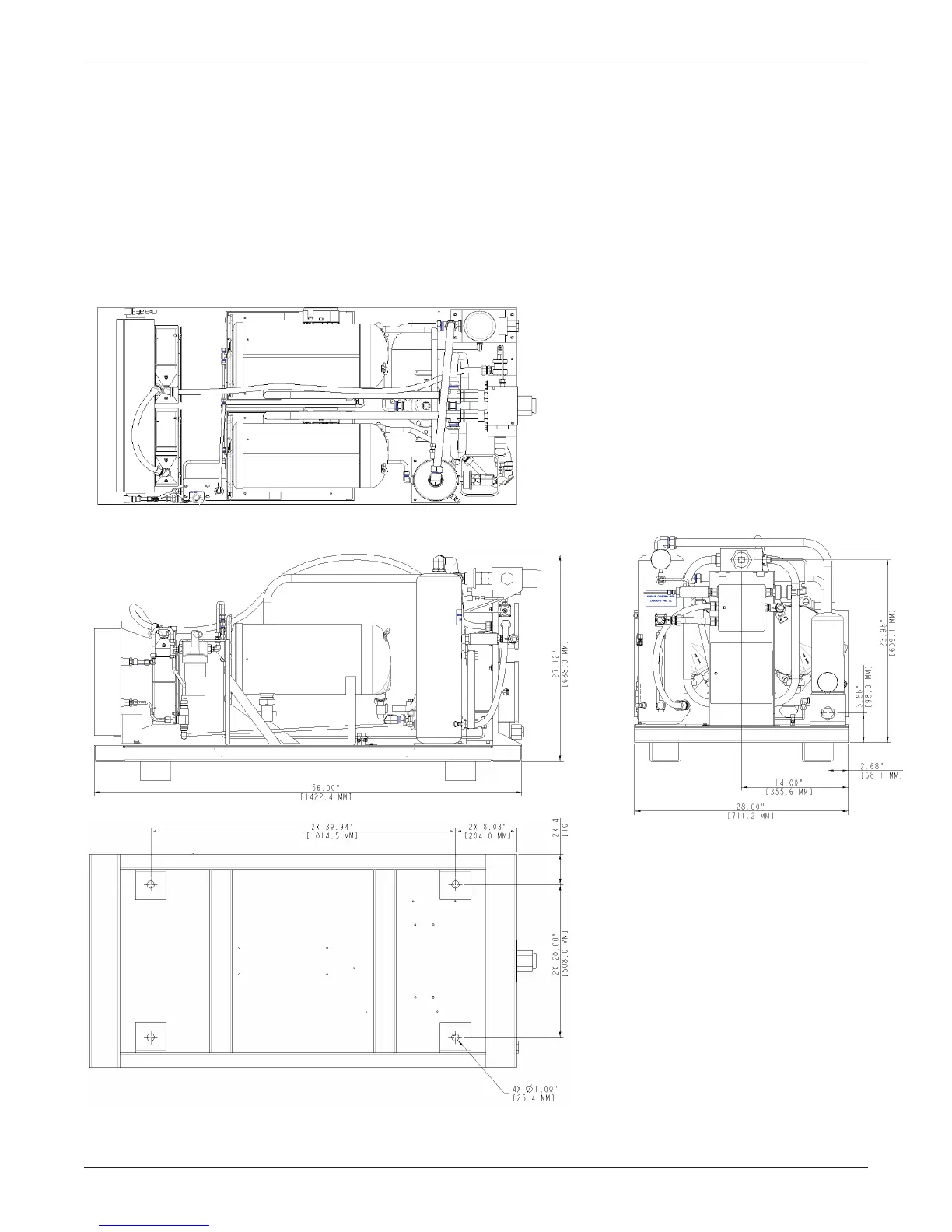

Figure 4 Compressor Module Dimensions, in. (mm)
