Dual-Compressor Module Maintenance
4.6 Cleaning the Inlet Screen
The 30-mesh screen in the inlet block must remain unobstructed for optimal ow rate. If the ow rate is
lower than expected even when the Compressor is running properly, this screen may be obstructed.

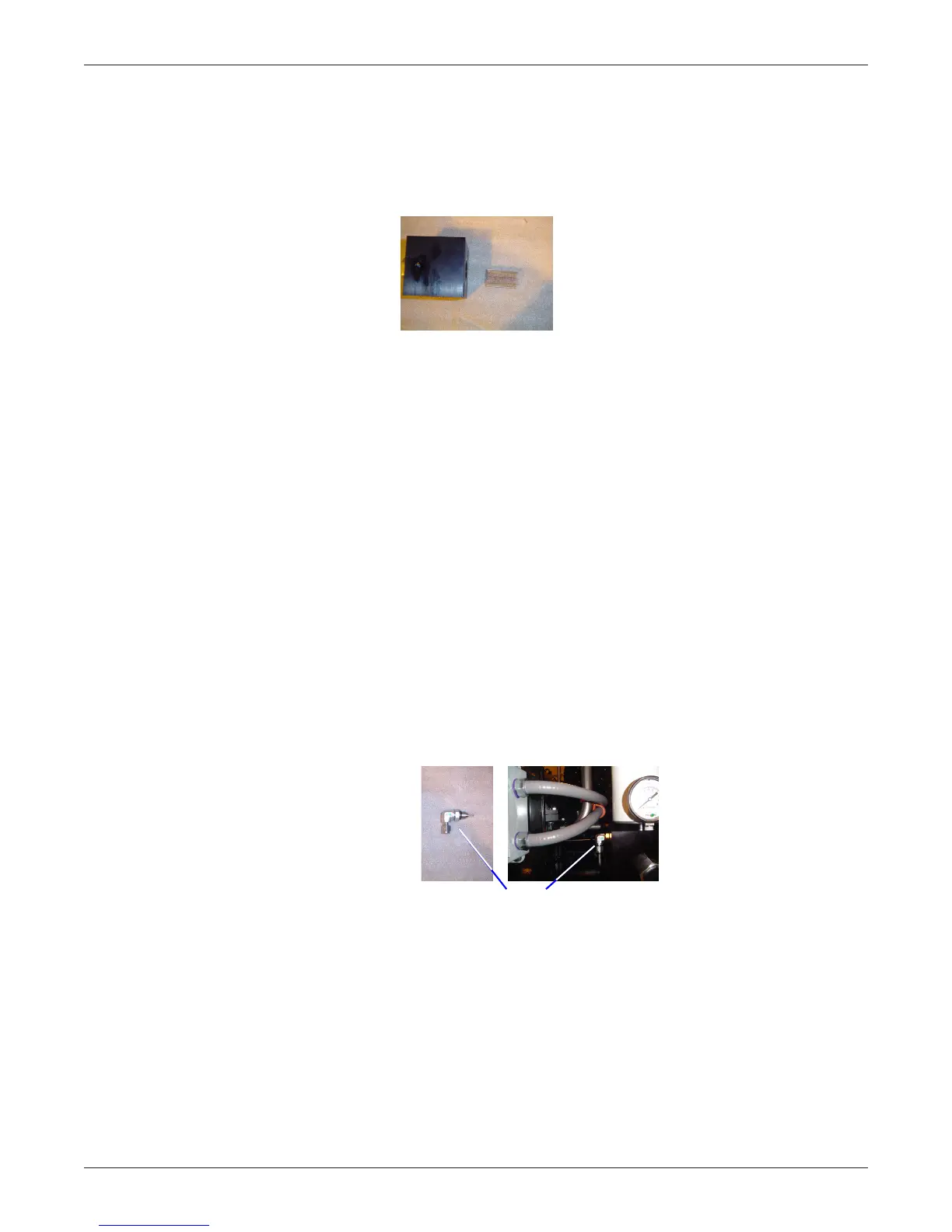

Figure 16 Gas Inlet Block and Screen
To inspect and clean the inlet screen:
1. Turn off and isolate the Compressor from all power sources.
2. Turn off the gas supply.
3. Vent the system to 0 psig.
4. Remove the SAE plug on the side of the inlet block.
5. Remove the screen.
6. Inspect the screen and inside of the block. Clean or replace if necessary.
7. Replace SAE nut.
8. Return the Compressor Package to service.
9. Check for leaks at all ttings that have been disturbed.
4.7 Servicing the Scavenge Line Orice
The scavenge line orice in the oil separator block must remain clear of obstruction. If this orice is
restricted, the secondstage oil separator can become saturated, increasing oil consumption.
Figure 17 Scavenge Line Orice
Orifice
To inspect and clean the orice:
1. Turn off and isolate the Compressor from all power sources.
2. Turn off the gas supply.
3. Vent the system to 0 psig.
4. Disconnect the tube and remove the tting.
5. Inspect the screen. Clean or replace the tting assembly if necessary.
6. Replace the tting and reconnect the tube. Tighten the swage nut hand tight plus 1/4 turn.
7. Return the Compressor Package to service.
8. Check for leaks at all ttings that have been disturbed.
