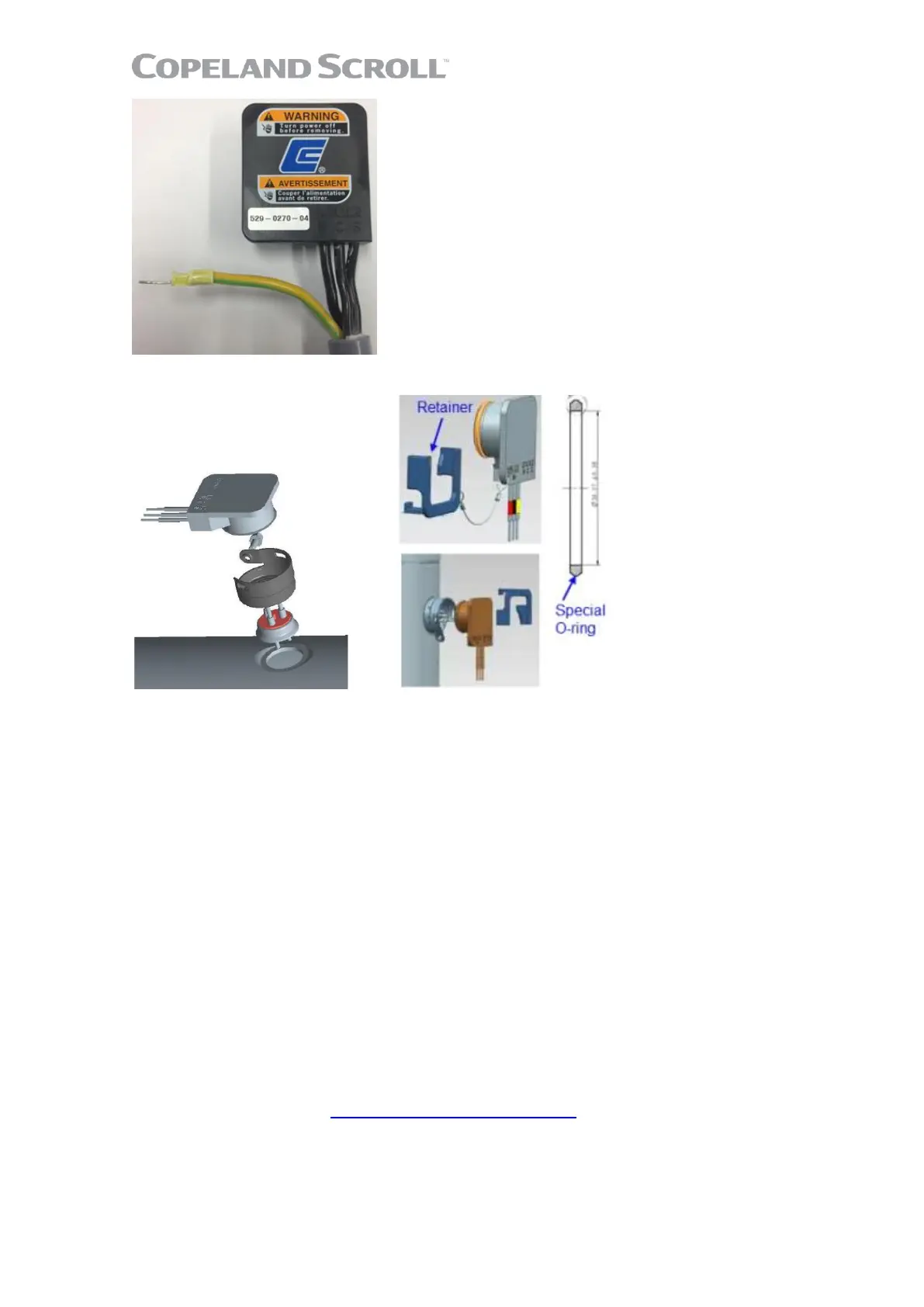

Figure 15: Power cable molded plug (IP65)
Figure 16: Connecting the molded plug power cable to the connection pins
4.2.3 Assembly of the molded plug cable
▪ Make sure to use only R290 qualified and dedicated molded plug power cables with grounding
connection and retainer.
▪ Check that the O-ring on the molded plug connector is in place and not damaged.
▪ Shut off power supply.
▪ Check that the circle fence is clean and dry before connecting the molded plug power cable.
▪ Connect the grounding of the molded plug power cable to the compressor circle fence.
▪ Attach the molded plug connector to the compressor connection pins. Smoothly push the molded
plug connector by hand as far as possible towards the pins. Never use a tool to knock the molded
plug as this could damage the glass inserts of the pins
▪ Secure the connection with the retainer.
4.2.4 Removing the molded plug power cable
▪ Shut off power supply.
▪ Remove the retainer from the connection.
▪ Remove the molded plug connector from the connection pins.
▪ Disconnect the grounding from the compressor circle fence.
NOTE: To select the appropriate molded plug power cables, please refer to the Emerson spare
parts software available at www.climate.emerson.com/en-gb.
