Emerson Copeland Scroll ZP KC Series - Tandem Oil Balancing; Tilted Tandem

Emerson Copeland Scroll ZP KC Series
32 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
30
© 2016 Emerson Climate Technologies, Inc.
AE4-1303 R15

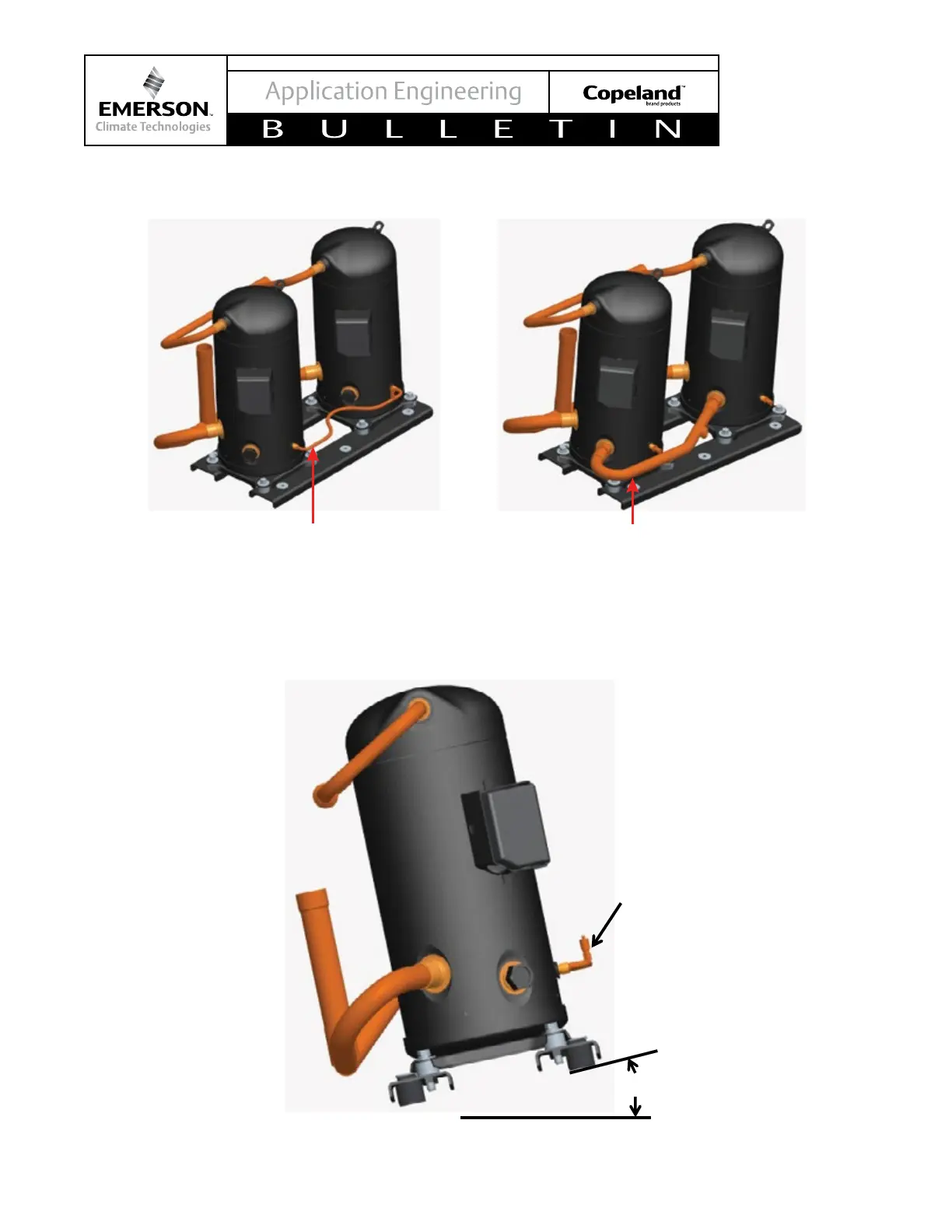

Figure 10
Tilted Tandem
12
°
Tilting the Compresso
r
For Installation of the
Oil Equalization Line
Oil Equalization Line
Oil Equalization Line Two-Phase Tube Line
Figure 9
Tandem Oil Balancing
Two-Phase Tandem Line
