Figure 6
11. Carefully turn the partially assembled ceiling fan
right side up and place the fan securely into the
packing styrofoam in preparation for final assembly.

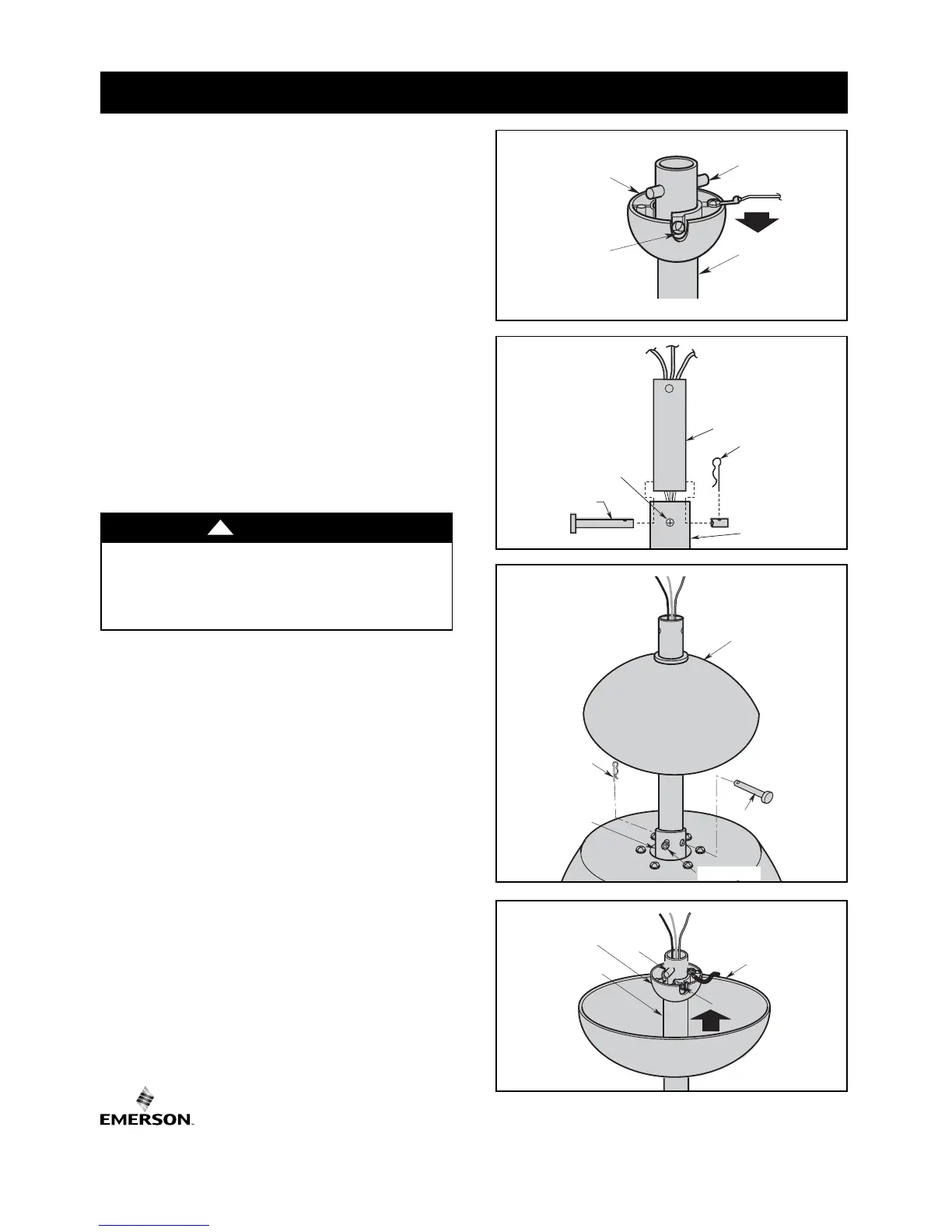

12. Remove the hanger ball by loosening the setscrew
in the hanger ball until the ball falls freely down the
downrod (Figure 5). Remove the pin from the
downrod, then remove the hanger ball. Retain the
pin and hanger ball for reinstallation in Step 16.
13. Loosen setscrew in motor coupler if necessary.
Separate, untwist and unkink the three 80” motor
leads. Route the motor lead wires through the
downrod. Align the clevis pin holes in the downrod
with the holes in the motor coupler. Install the clevis
pin and secure with the hairpin clip (Figure 6). The
clevis pin must go through the holes in the motor
coupler and the holes in the downrod. Be sure to
push the straight leg of the hairpin clip through the
hole near the end of the clevis pin until the curved
portion of the hairpin clip snaps around the clevis
pin. The hairpin clip must be properly installed to
prevent the clevis pin from working loose. Pull on
the downrod to make sure the clevis pin is properly
installed.
14. While pulling up on the downrod, securely tighten
the two setscrews in the motor coupling (Figure 7).
NOTE: The setscrews must be properly installed as
described above, or fan wobble could result.
15. Make sure the grommet is properly installed in the
coupling cover then slide the coupler cover on the
downrod until it rests on the motor housing. Place
the ceiling cover over the downrod. Be sure both
the ceiling cover and the coupler cover are oriented
correctly (Figure 7).
16. Reinstall the hanger ball (Figure 8) on the downrod
as follows. Route the motor leads through the
downrod. Position the pin through the two holes in
the downrod and align the ball so the pin is
captured in the groove in the top of the hanger ball.
Pull the hanger ball up tight against the pin and
securely tighten the setscrew in the hanger ball. A
loose setscrew could create fan wobble.
17. The fan comes with blue, black and white leads that
are 80” long. Before installing fan, measure up
approximately 6 to 9-inches above top of hanger
ball/downrod assembly. Cut off excess leads and
strip back insulation 1/2-inch from end of leads.
It is critical that the clevis pin in the motor coupler is
properly installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are properly
installed (as shown in Figure 6) could result in the fan
falling.
WARNING
!
6
U.L. Model No.: CF244 & CF252
