8
U.L. Model No.: CF244 & CF252
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
CAUTION: To reduce the risk of electrical shock,
disconnect the electrical supply circuit before
installing the fan, light kit or receiver.
NOTE: Make all wiring connections using wire
connectors (supplied). Make sure that all
connections are tight, including ground, and that
no bare wire is visible at the wire connectors,
except for the ground wire.

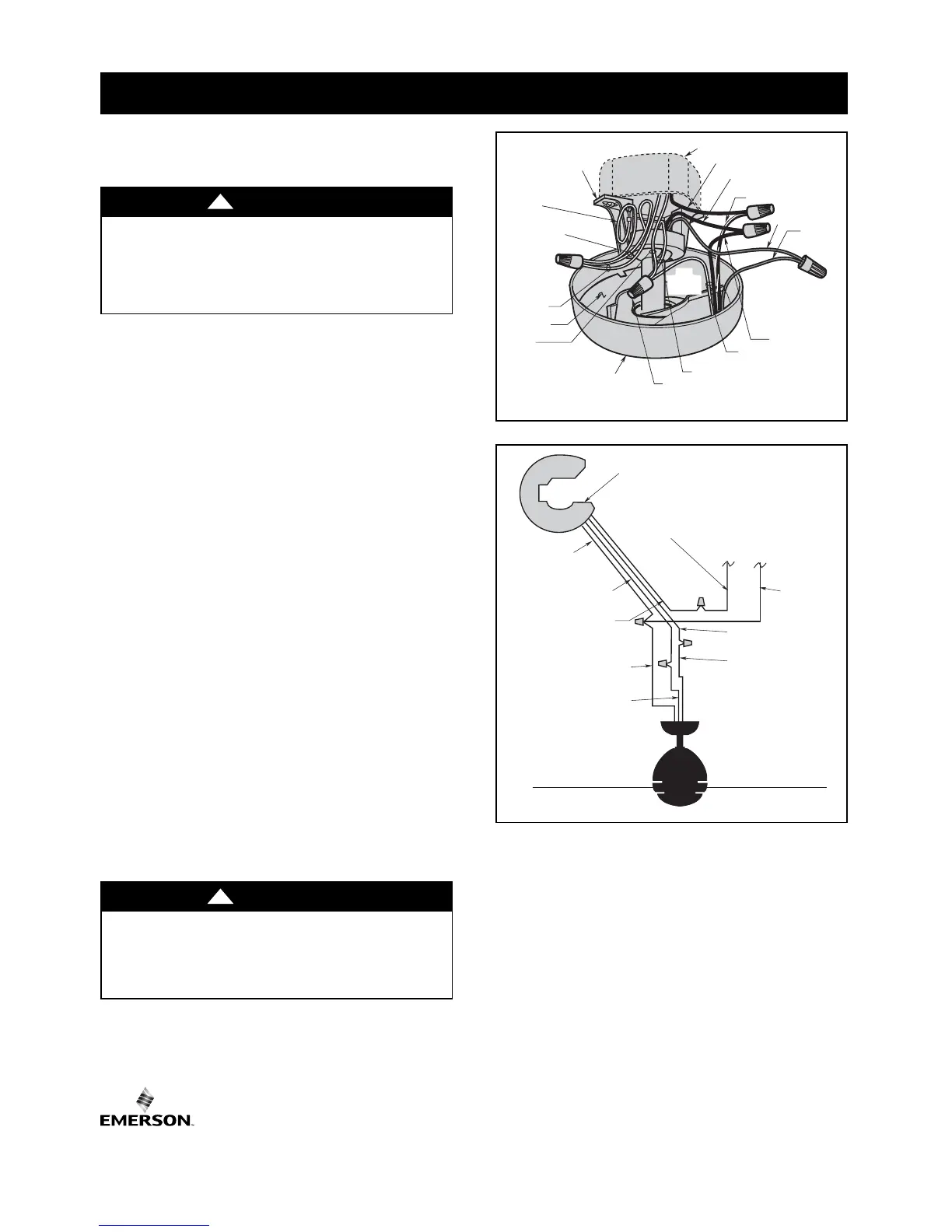

1. Position the receiver into the ceiling cover as shown
in Figure 12. Place the antenna wire on top of the
receiver.
2. Refer to Figures 12 and 13 to connect the receiver
wires to the supply wires and the fan motor wires
using the wire connectors supplied with the fan as
follows:
a. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this
may be a bare wire or wire with green colored
insulation). Securely connect wires with wire
connectors supplied (Figure 12).
b. Securely connect the supply white (neutral) wire to
the receiver white (AC IN N)/(TO MOTOR N) wire
and white (neutral) fan wire.
c. Securely connect the supply black wire to the
receiver black/white (AC IN L) wire.
d. Securely connect the fan motor black wire to the
receiver black (TO MOTOR L) wire.
e. Securely connect the fan motor blue wire to the
receiver blue (FOR BOTTOM LIGHT) wire.
How to Wire Your Ceiling Fan
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring must
be in accordance with National and Local codes and
the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until blades are in place. Noise and fan damage
could result.
WARNING
!
