Emerson E2 Quick Start Guide

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 5 of 14
©2014 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
STEP 4: Setting the Baud Rate in the E2 Controller
1. Press , (System Configuration), (Remote Communication) and  (TCP/IP Setup).
2. Press
 (NEXT TAB) to shift over to the Serial tab. Select COM port, then set Baud rate to 19200,
Data Size to 8, Parity to None and Stop Bits to 1.

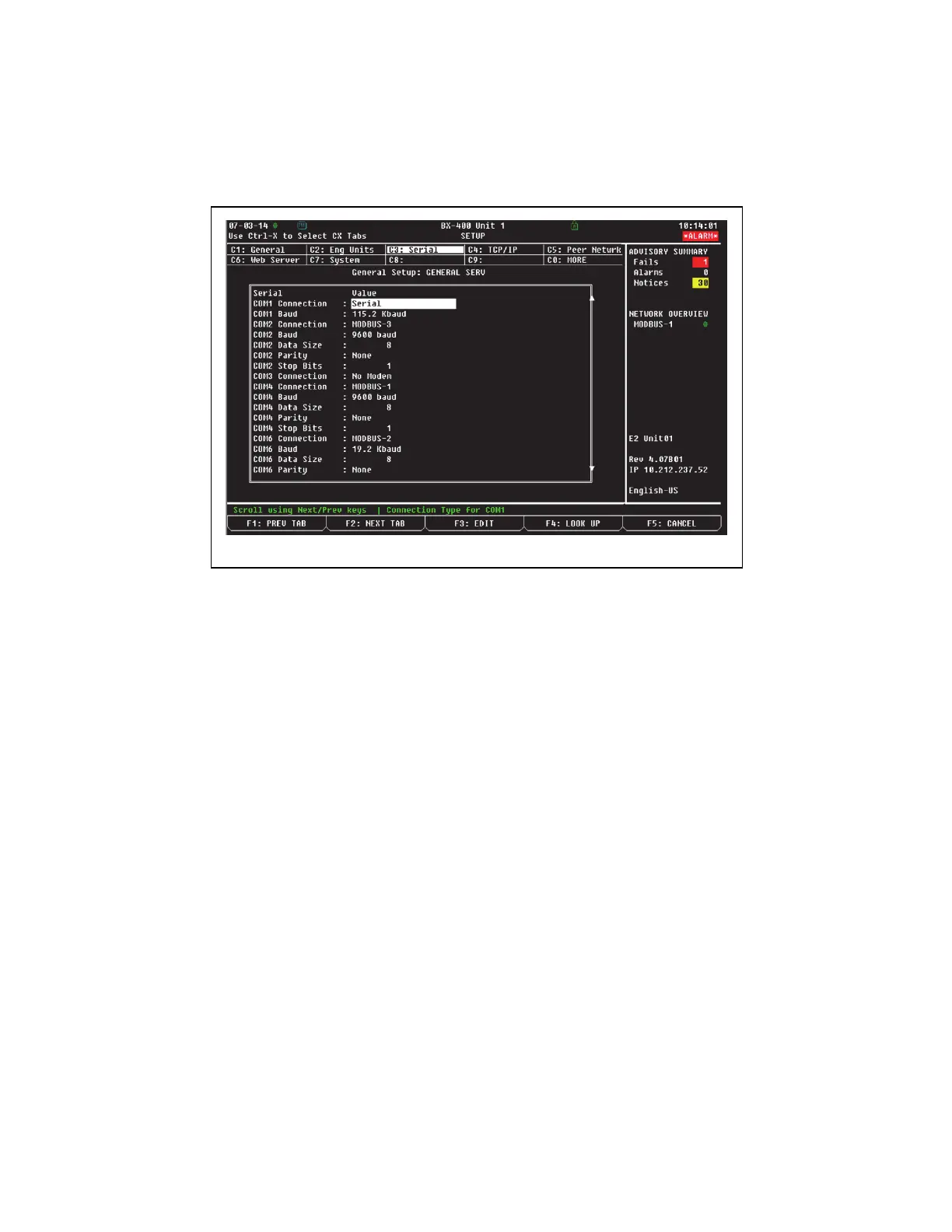

Figure 4 - Set the Baud Rate, Data Size, Parity and Stop Bits

Emerson E2 Specifications

General

Model	E2
Manufacturer	Emerson
Category	Controller
Power Supply	24 VAC/VDC
Communication Protocols	Ethernet
Output Type	Relay, Analog
Communication Protocol	Ethernet
Application	Refrigeration and HVAC system control
