STEP 5: Wiring the M400 VFD Device
Wire the device as shown below.
Note: Do not connect device communications to the E2 controller.

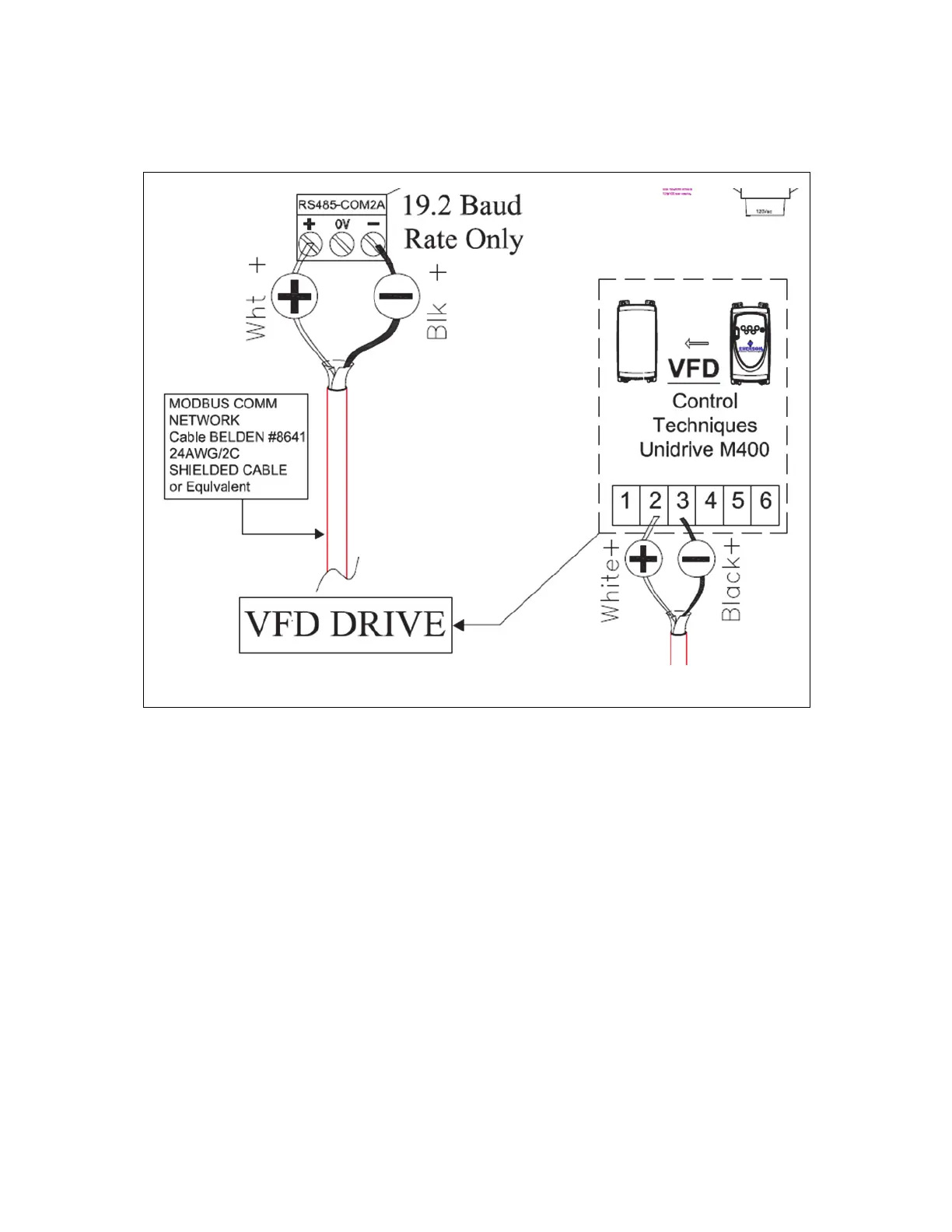

Figure 5 - Wire the M400 VFD Device
