Document Part # 026-4950 Rev 0 08-OCT-2014 Page 7 of 14
©2014 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
STEP 6: Adding the Device to the E2 Controller
1. Press , (System Configuration), (Network Setup), (Connected I/O Boards & Controllers).
2. Press
(NEXT TAB) to shift over to the C4: Third Party tab. The name of the device will display in
the list. Highlight the device name and enter the number of devices. Then press
to save
changes.

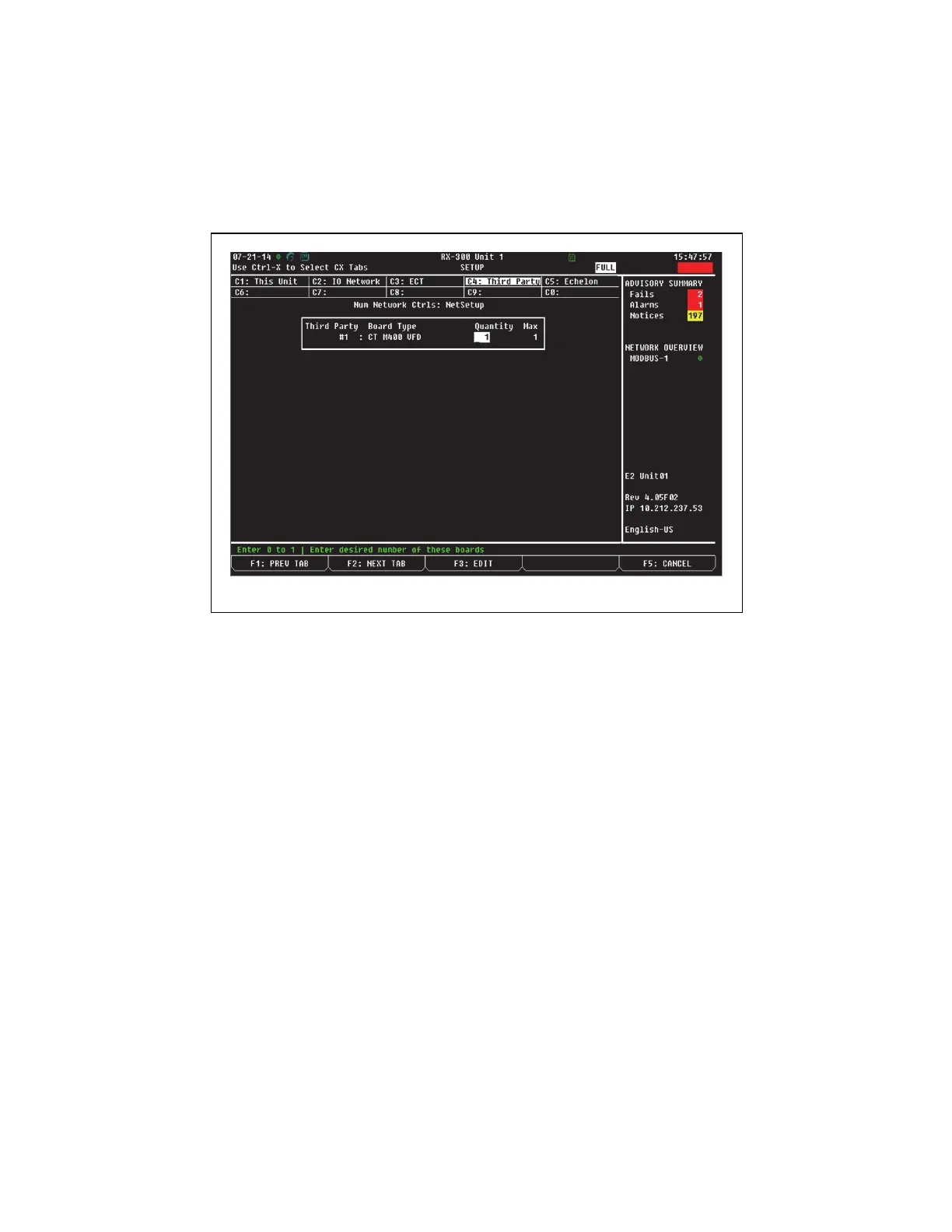

Figure 6 - Third Party Tab
