Emerson EC3-X33 User Manual

Operating instruction
EC3-X33 Superheat Controller and ECD-002
Keypad / Display Unit
Emerson Climate Technologies GmbH www.emersonclimate.eu
Am Borsigturm 31 I 13507 Berlin I Germany Date: 03.04.2017 EC3-X33_OI_ML_R12_865009.docx

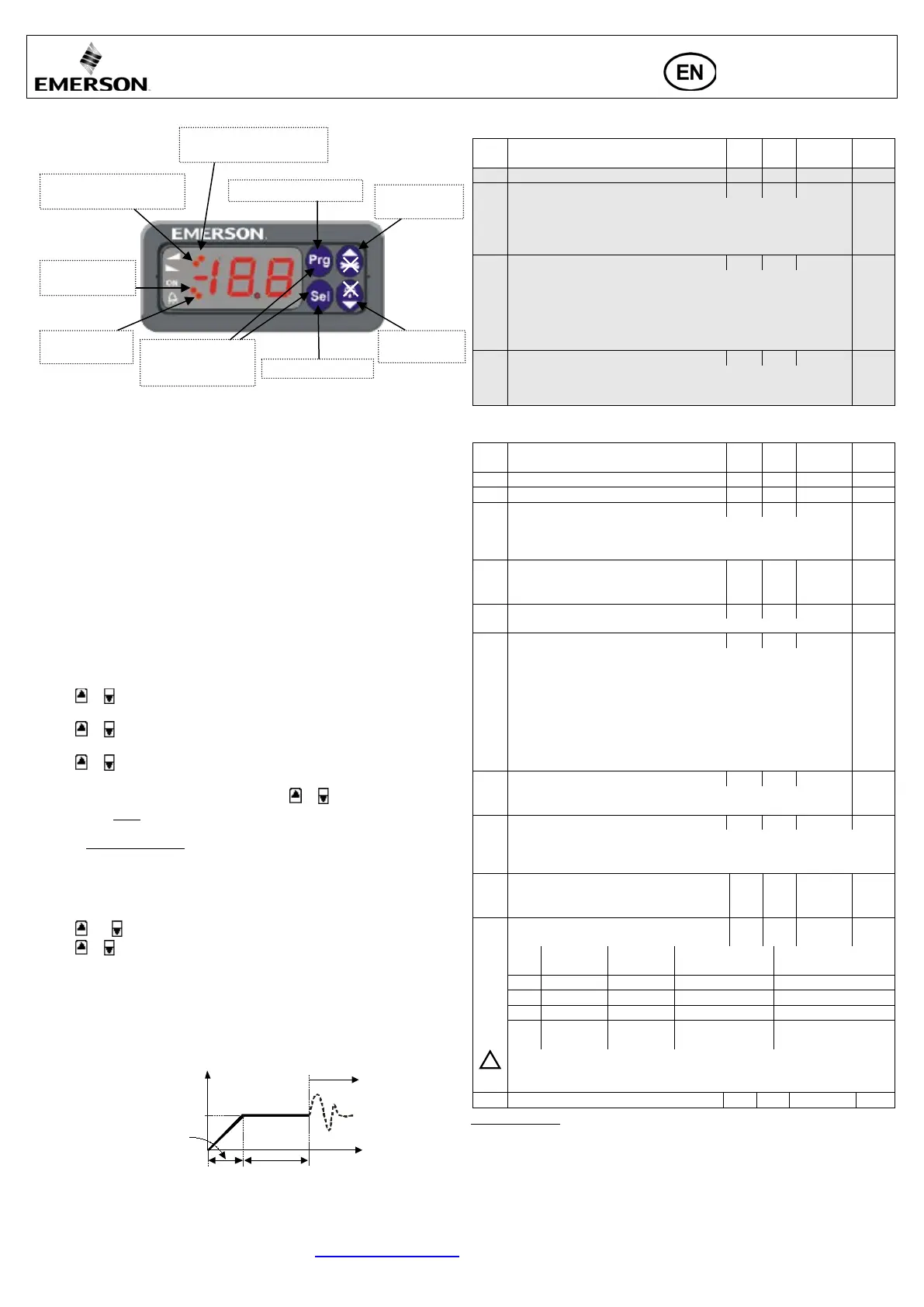

ECD-002 display/keypad unit: (LEDs and button functions)
Setup of main parameters using ECD-002:
(need to be checked/modified before start-up)
• Make sure that digital input is 0V (open). Turn the power supply ON.
• Important: Three main parameters i.e. refrigerant type (u0), pressure sensor type
(uP) and valve type (ut) can be set only when digital input is open (0V) while the
power supply is ON (24 V). This feature is for added safety to prevent accidental
damage of compressors and other system components.
• For easy setting of main parameters, follow the pictorial procedure of “Quick
start-up” on the attached individual paper.
• Once the main parameters have been selected/saved the EC3 is ready for
startup. All other parameters can be modified at any time during operation
or standby if it is necessary.
Procedure for parameters modification using ECD-002:
• The parameters can be accessed via the 4-button keypad. The configuration
parameters are protected by a numerical password. The default password is “12”.
To select the parameter configuration:
• Press the PRG button for more than 5 seconds. A flashing “0” is displayed
• Press or until “12” is displayed; (password)
• Press SEL to confirm password
• Press or to show the code of the parameter that has to be changed;
• Press SEL to display the selected parameter value;
• Press or to increase or decrease the value;
• Press SEL to temporarily confirm the new value and display its code;
• Repeat the procedure from the beginning "press or to show..."
• To exit and save the new settings: P
ress PRG to confirm the new values and
exit the parameters modification procedure.
• To exit without modifying any parameters: Do not press any button for at least
60 seconds (TIME OUT).
Reset all parameters to factory setting:
• Make sure that digital input is 0V (open).
• Press and together for more than 5 seconds. A flashing “0” is displayed.
• Press or until the password is displayed (Factory setting = 12).
If password was changed, select the new password.
• Press SEL to confirm password
“0” is displayed.
• Press SEL to reset all parameters to factory setting
• Press PRG to activate the function and leave the special function mode.
Control (valve) start-up behavior: (Parameter uu and u9)
EX4/5/6 ≤ 1.5 seconds
EX7 ≤ 3.2 seconds
EX8 ≤ 7.2 seconds
FX5-8 ≤ 7.3 seconds
FX9 ≤ 9.7 seconds
Main parameters:
(must be checked and modified if necessary)
Code Parameter description and choices Min Max
Factory
setting
Field
setting
H5
Password
1
199
12
u0
System refrigerant
0
16
1
0 = R22 1 = R134a 2 = R507 3 = R404A 4 = R407C
5 = R410A 6 = R124 7 = R744 (subcritical application)
8 = R407A 9 = R407F 10 = R32* 11 = R448A
12 = R449A 13 = R450A 14 = R513A 15 = R1234ze
uP
Installed pressure sensor type
0
3
0
0 = PT5-07x (for R22 / R134a / R507 / R404A / R407A / R407C /
R407F / R124 / R448A /R449A / R450A / R513A /
R1234ze)
1 = PT5-18x (for R410A/ R32)
2 = PT5-30x (for R410A / R744 / R32)
3 = PT5-50x (for R744)
ut
Installed valve type
1
12
5
1 = EX4 2 = EX5 3 = EX6 4 = EX7
5 = EX8 6 = FX5 7 = FX6 8 = FX6.5
9 = FX7 10 = FX7.5 11 = FX8 12=FX9
Optional parameters:
(recommended factory setting for majority of applications)
Code Parameter description and choices Min Max
Factory
setting
Field
setting
uu
Start valve opening (%)
0
100
50
u9
Start opening duration (second)
0
120
5
uL
Low superheat alarm function
0
2
1
0 = disable (for flooded evaporator)
1 = enable auto reset 2 = enable manual reset
Cut-out at 0.5K (if it maintains 1 min.); Cut-in immediately at 3K
u5
Superheat set-point (K)
If uL enabled (auto or manual)
If uL disabled
3
0.5
30
30
6
6
u2
MOP function
0
1
1
0 = disable 1 = enable
u3
MOP set-point (°C) saturation temperature
*
*
**
**) Factory setting is according to selected refrigerant (u0):
+13°C - R22 +15°C - R134a +7°C - R507
+7°C - R404A +15°C - R407C +15°C - R410A
+50°C - R124 -5°C - R744 +10°C - R407A
+10°C - R407F +10°C - R32 +12°C - R448A
+12°C - R449A +19°C - R450A +13°C - R513A
+24°C - R1234ze
*) Min. and Max. setting values are dependant to selected type of
refrigerant
┌┘5
Units conversion (only for u3, u5, ┌┘1)
0
1
0
0 = °C, K, bar 1 = °F, R, psig
(Psig values are divided by 10. Example: Display 12.5 is 125 psig)
┌┘
1
Value to show
0
4
0
0 = Measured superheat (K) 1 = Measured evaporating pressure, (bar);
2 = Valve opening (%) 3 = Measured coil-out temperature (°C)
4 = Calculated evaporating temperature (°C) from the pressure
u4
Superheat control mode
0 = Standard, 1 = Slow
2 = intermediate control
0
2
0
b1
Battery error management, when battery is
defective, see below
0
3
2
value
Alarm
display
Alarm relay
Valve
Reset possibility after
recovery/replacement
0
-
-
Regulating
-
1
Ab
-
Regulating
-
2
Ab
Signalling
Fully close
Auto
3
Ab
(blinking)
Signalling
Fully close
Manual
When setting b1 to option 0 or 1, the user must ensure appropriate
safety precautions are in place to protect the system against damage
caused by a power failure.
uF
Control range valve %
5
100
100
*) Notes for R32: R32 is classified as low flammable refrigerant in Europe. EC3-
X33 is designed under consideration of European safety standards and directives
for none flammable refrigerants. The use of EC3-X33 with R32 is for
systems/regions which it does not require consideration of additional safety
standards as for flammable refrigerant.
After selecting the parameters the EC3-X33 is fully functional without
keypad/display unit. ECD-002 may be removed or connected at any time.
!
Blinking: valve is closing
ON: valve is fully close
Blinking: valve is opening
ON: valve is fully open
ON: demand
OFF: no demand
ON: alarm
OFF: no alarm
Parameters setting/saving
Selecting/confirming
Next parameter/
value (higher)
Next parameter/
value (lower)
Prg&Sel (5 sec)
Manual reset for
blinking alarm codes
Sec.
uu
u9
%
EC3-X3 BA.cdr
