CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH
DIGITAL INPUT JACKS (for DVD)
Use an audio coaxial digital cable (commercially available) for the audio connections.
Connect to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.
NOTES:
•
The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital
sound by an MD or DAT deck.
•
Be sure to turn off the power to all components in the system before connecting another component.
•
Refer to the Owner’s Manuals for the components to be connected to the unit.
•
Set DOLBY DIGITAL to “OFF” for audio output in the setup mode. Playing a unit using incorrect settings
may generate noise distortion, and may also damage the speakers. (Refer to page 27 to set DOLBY
DIGITAL to “OFF”.)
DC 13.2V
COAXIAL
ANT.
ex.
MD deck, DAT deck, etc.
To Coaxial digital
Audio input jack
Audio coaxial digital cable
(commercially available)
To COAXIAL jack
(Only DVD AUDIO OUT)
(OUT)(IN)
COAXIAL

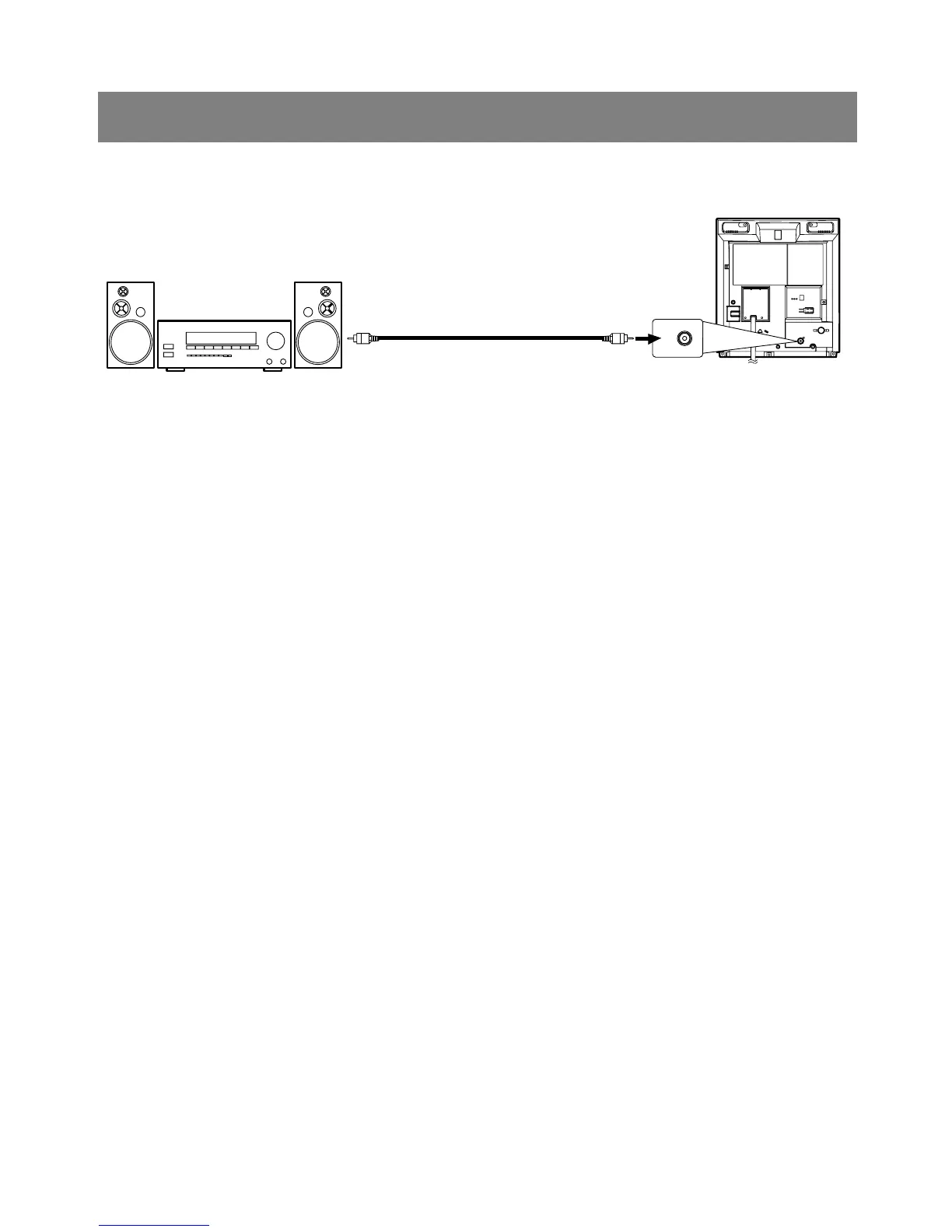

[Fig. 7]
–
