EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.

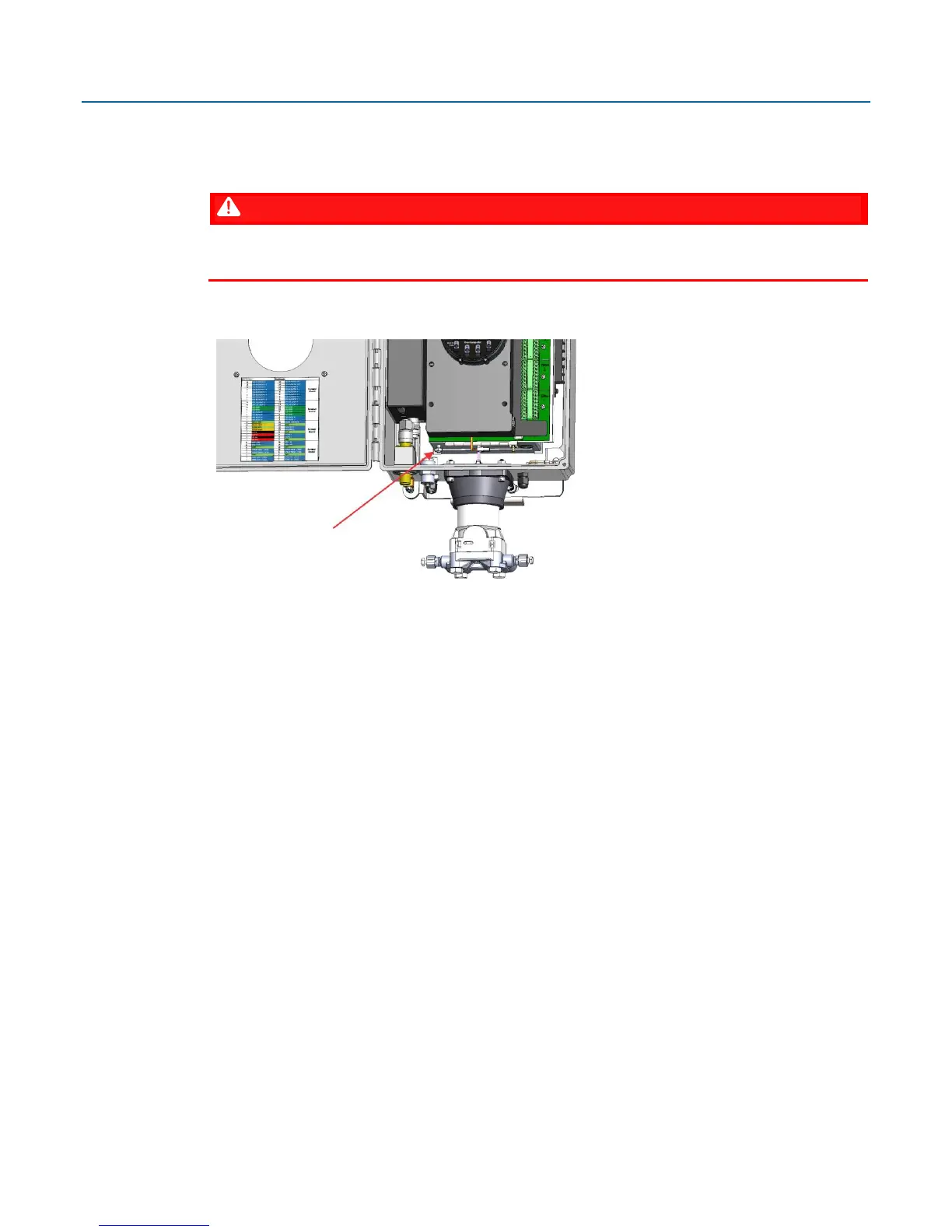

The flow computer includes a ground stud on the bottom of the battery box enclosure.
▪ Once you have installed the unit, run a ground wire between the ground stud on the
bottom of the battery box enclosure and a known good earth ground. You route the
ground wire through one of the conduit fittings.
▪ Use stranded copper wire to earth ground and keep the length as short as possible.
▪ Clamp or braze the ground wire to the ground bed conductor (typically a stranded
copper AWG 0000 cable installed vertically or horizontally).
▪ Using a high-wattage soldering iron, tin the wire ends with solder before you insert
them into the chassis ground lug.
▪ Run the ground wire so that any routing bend in the cable has a minimum radius of
30.48 cm (12 inches) below ground and 20.32 cm (8 inches) above ground.
▪ For more information on grounding or if your installation uses cathodic protection, refer to
Site Considerations for Equipment Installation, Grounding, and Wiring (D301452X012).
