Emerson FB2200 Flow Computer Quick Start Guide
D301788X012
March 2019
9
Wiring Communications
DANGER
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.
Notes
◼ You do not need to add termination resistors; you can configure termination through
software selections in FBxConnect.
◼ You should terminate all shields at chassis ground.

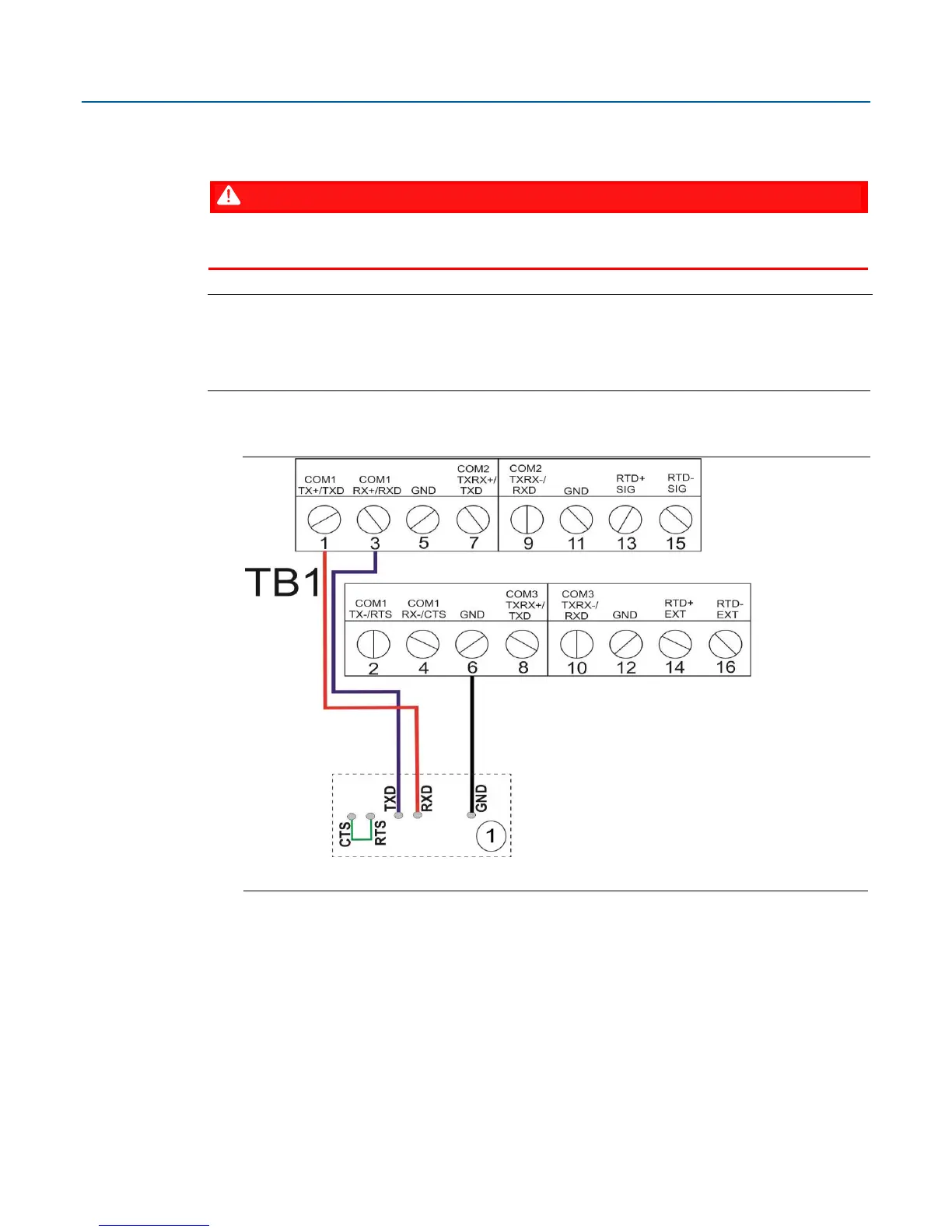

COM1
1
RS-232 port on other device
