Emerson FB2200 Quick Start Guide

Emerson FB2200 Flow Computer Quick Start Guide
D301788X012
March 2019
7
Pole Mounting –Fiberglass Enclosure
DANGER
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.

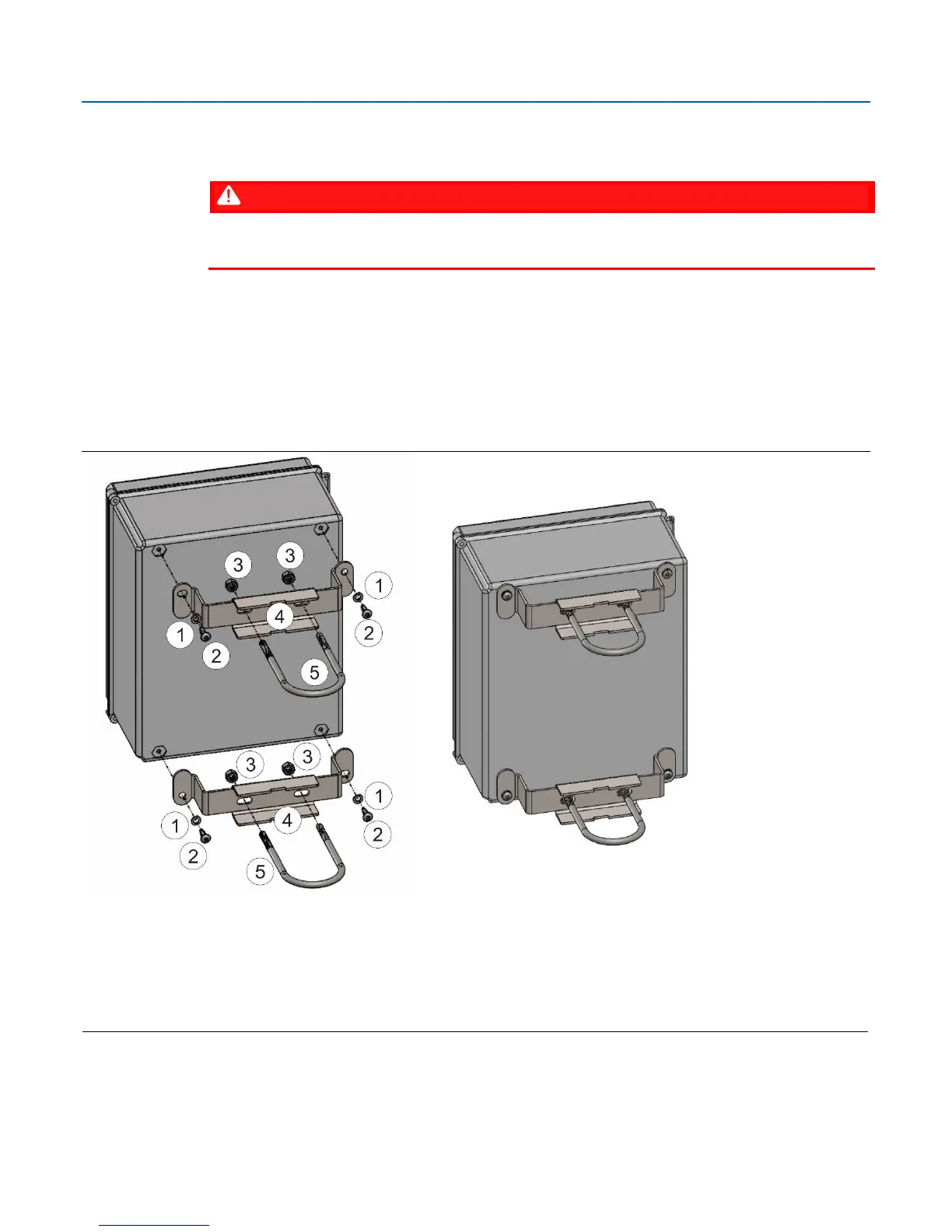

1. Attach pole mounting brackets (Item 4) to enclosure using split lock stainless steel washers
(Item 1) and Torx
®
head screws (Item 2).
2. Apply Loctite
®
#222 Low Strength Purple Threadlocker adhesive sparingly to threads of U-
bolts (Item 5).
3. Use U-bolts (Item 5) to mount enclosure to pole using hex nuts (Item 3). Torque hex nuts to
30 in-lbs (3.4 N m).
1
¼ inch screw split lock stainless steel washer
2
¼-10 x .75LG thread forming Torx head screw
3
5/16-18 keps stainless steel hex nut
4
Pole mounting bracket
5
2 inch diameter 5/16-18 x 4.0LG U-bolt
