Emerson FD113 User Manual

4
208/240V - 3 Phase - 50/60 Hz
GROUND FOR
100/120 VAC
ONLY
208/240V - 3 Phase - 50/60 Hz

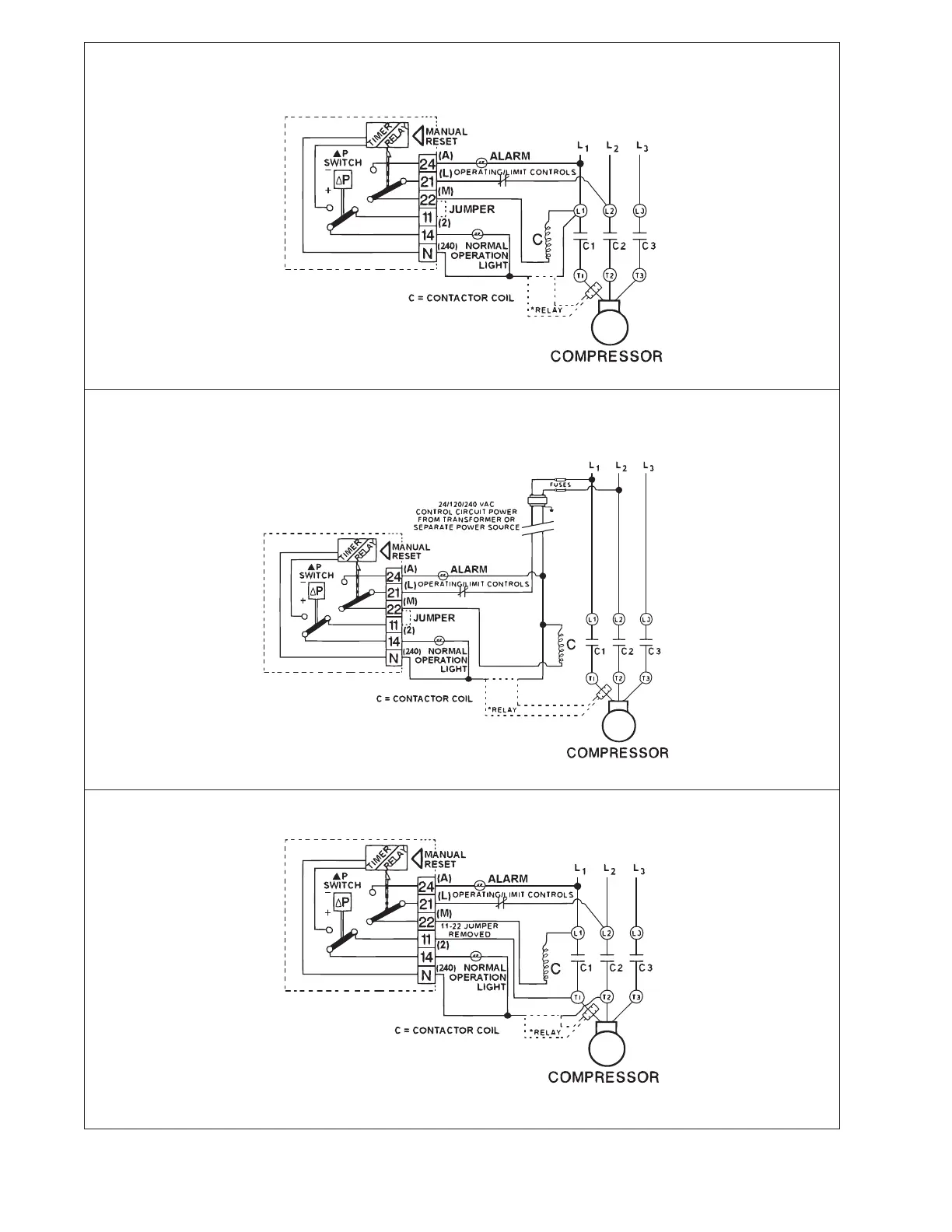

Typical 4-Wire Wiring – 208/240 Oil Pressure Safety Control Power Common to Compressor
* Optional Current Sensing RelayinSerieswithN/T2line
 forcompressorswithinternallinebreakmotorprotectors.
 (Preventsoilpressuresafetycontrolfromtrippingwheninternal
 line-breakmotorprotectortrips.)
FIGURE 8
Typical New Copeland 3-Wire Oil Pressure Safety Control Wiring
ThiscircuiteliminatesnuisancetripsoftheOPSCfrom“sneak”voltagesonthe“T”sideofthecontactorfromauxiliary
devicesconnectedfromthe“T”sideto“L”orneutralofthecontactor,orminorvoltage-leakagepathsfromthecompressors
connections/windingtoground.
* Optional Current Sensing RelayinSerieswithN/L1line
 forcompressorswithinternallinebreakmotorprotectors.
 (Preventsoilpressuresafetycontrolfromtrippingwheninternal
 line-breakmotorprotectortrips.)
FIGURE 6
Typical 3-Wire Separate Power Source
NOTE:ContactorCoil,AlarmandNormalLightmustbesamevoltageasthecontrolcircuitvoltage.
* Optional Current Sensing RelayinSerieswithNline
 forcompressorswithinternallinebreakmotorprotectors.
 (Preventsoilpressuresafetycontrolfromtrippingwheninternal
 line-breakmotorprotectortrips.)
FIGURE 7
3 Phase - 50/60 Hz
EmersonClimate.com/FlowControls
Technical Support: 1-866-625-8416
PA-00250 (06/13) Emerson is a trademark of Emerson Electric Co. ©2013 Emerson Climate Technologies, Inc. All rights reserved.
