Instruction Manual
D102087X012
585C Actuator
October 2013
30

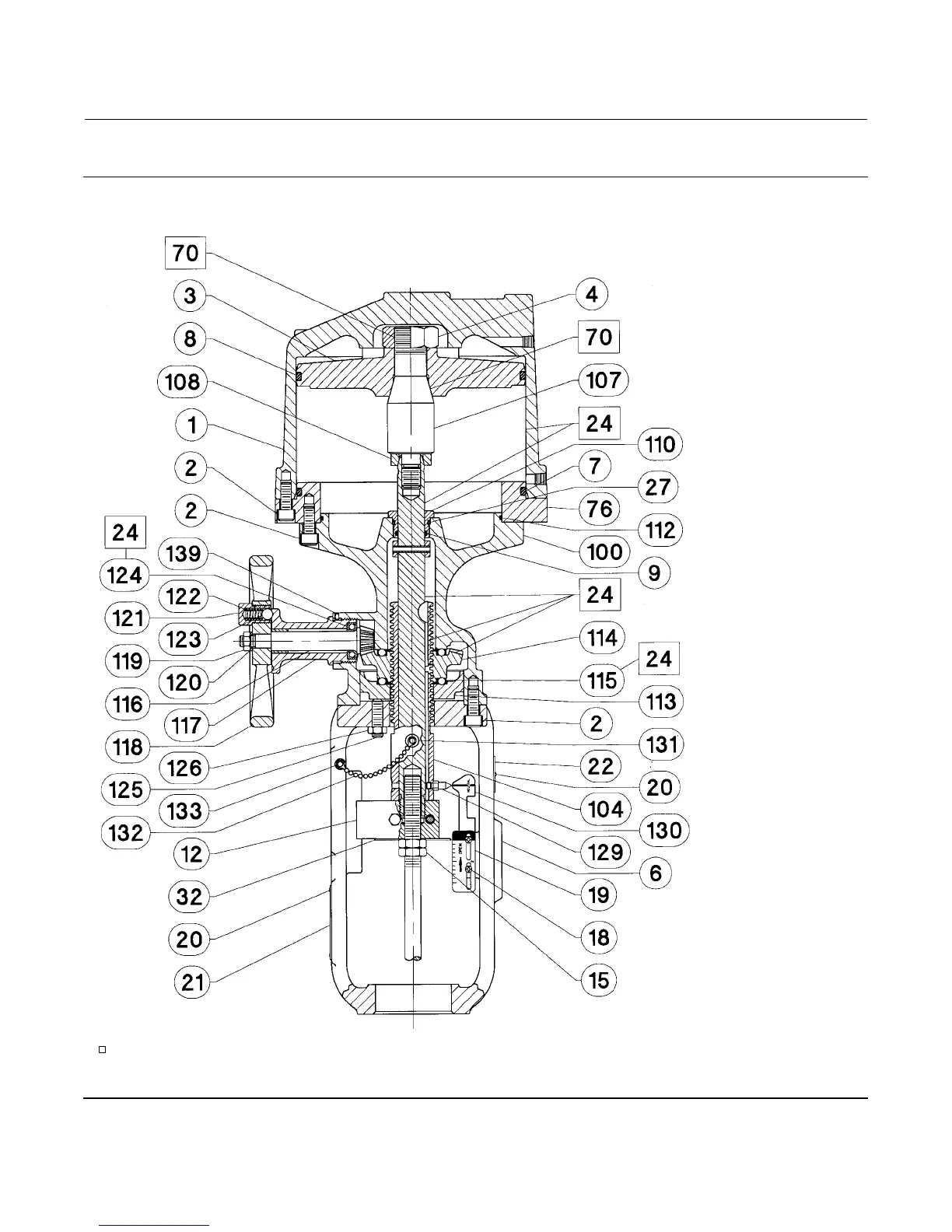

Figure 9. Fisher 585C Actuator with Integral Handjack Size 68 with 2- and 4-Inch Travel
58B1370-A
APPLY LUB/SEALANT
PARTS NOT SHOWN: 33, 145, 146
FOR BYPASS ASSEMBLY, S EE FIGURE 13
