Instruction Manual
D102087X012
585C Actuator
October 2013
31

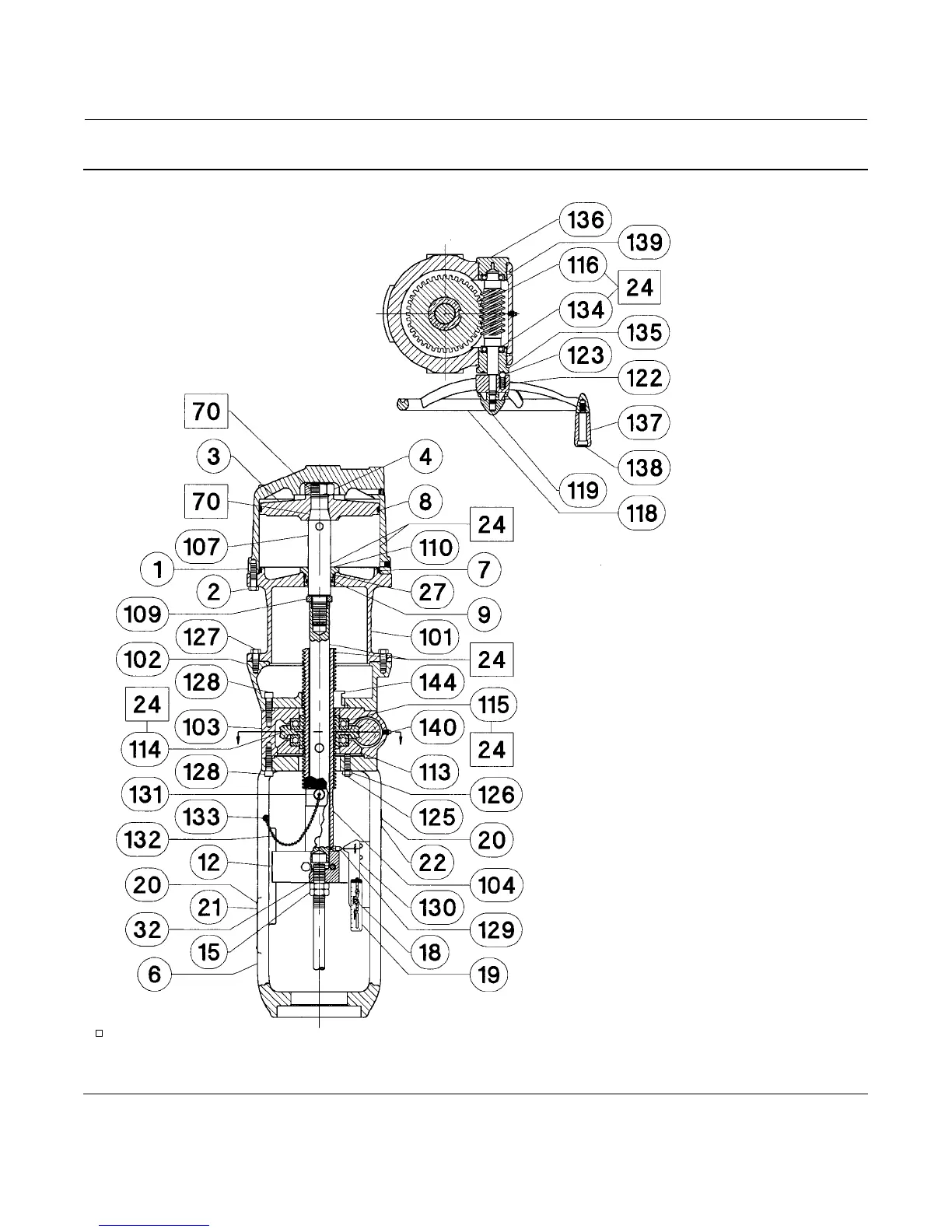

Figure 10. Fisher 585C Actuator with Integral Handjack Size 80 and 100 with 4-Inch Travel
58B1373-A
PARTS NOT SHOWN: 141, 145, 146
FOR BYPASS ASSEMBLY, SEE FIGURE 13
SECTION A–A
A
A
APPLY LUB/SEALANT
