Instruction Manual
D102087X012
585C Actuator
October 2013
32

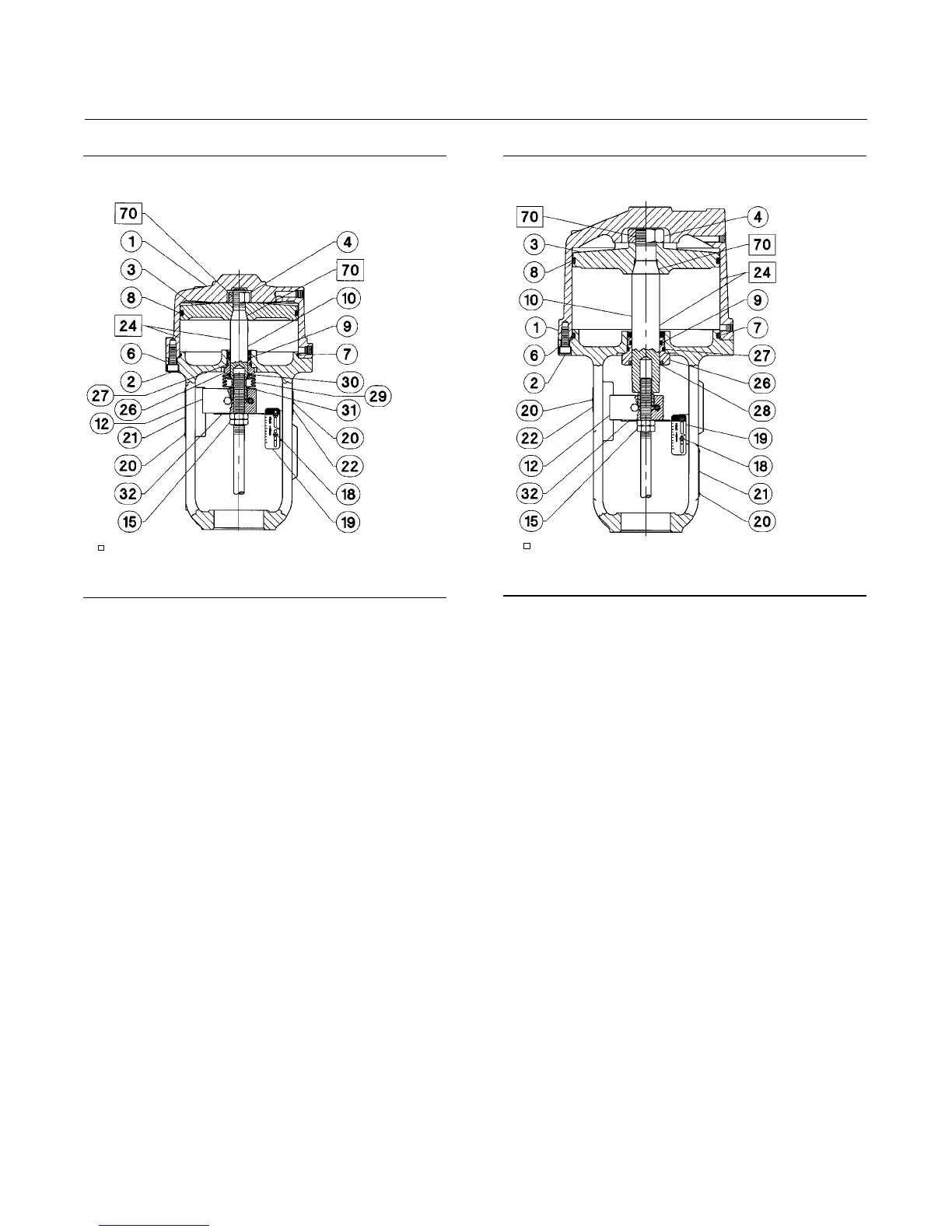

Figure 11. Fisher 585C Actuator
Size 60 with 2- and 4-Inch Travel
58B1365-A
PARTS NOT SHOWN: 33
APPLY L UB/SEALANT
Figure 12. Fisher 585C Actuator Size 60 with 8-Inch
Travel and Size 68 with 2-, 4-, and 8-Inch Travel
58B1366-A
PARTS NOT SHOWN: 33
APPLY LUB/SEALANT
