Emerson Fisher FIELDVUE DVC6200 SIS - Disable Short Duration PST

Instruction Manual Supplement
D104299X012
DVC6200 SIS
October 2018
17
A PST Diagnostic can be run with Short Duration PST disabled, as shown in the figure below. When Short Duration PST
is disabled the pause time will be in effect once the valve reaches the desired test point, resulting in a slower PST.

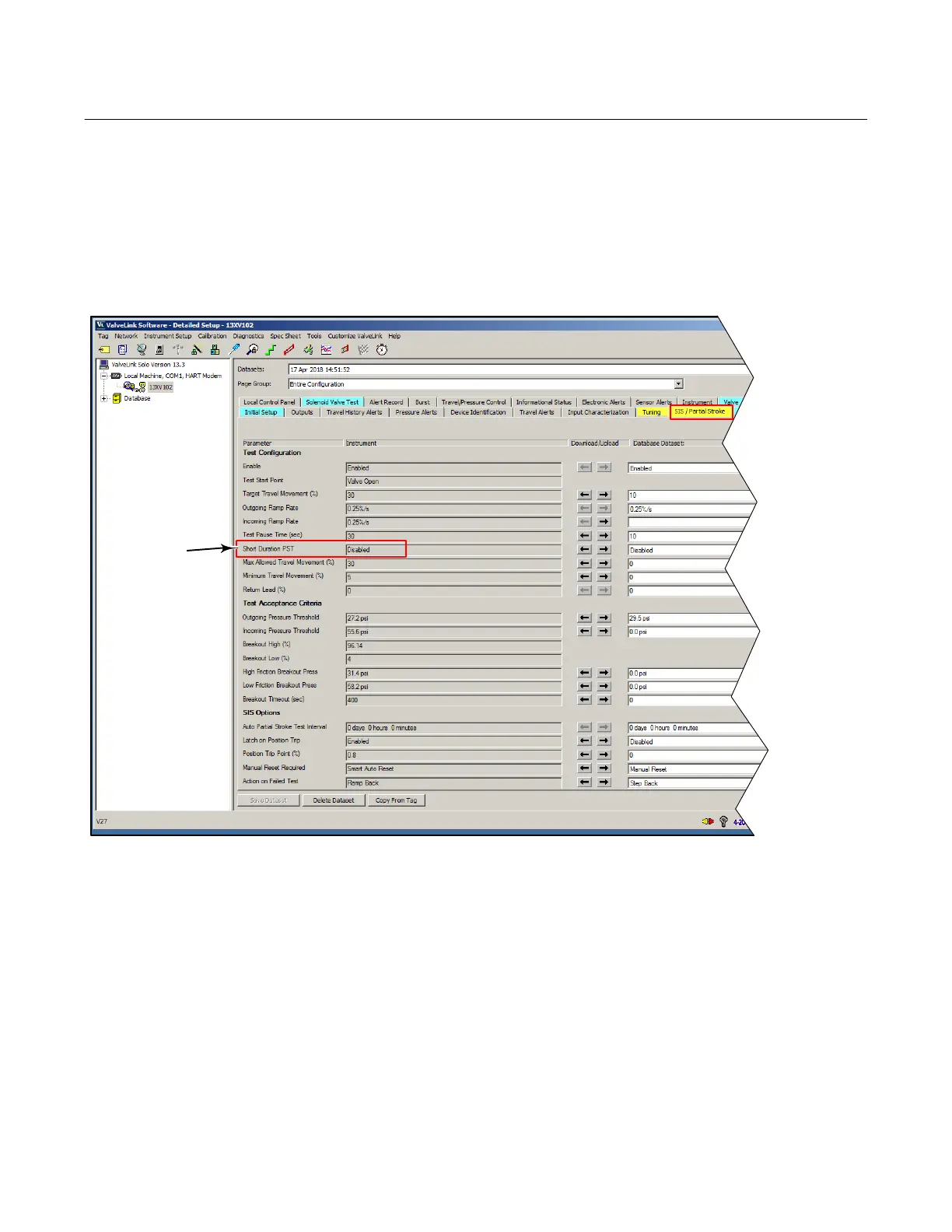

Figure 24. Disable Short Duration PST in SIS/Partial Stroke
Short Duration
PST disabled
