DVC6200 Digital Valve Controllers
August 2015
63
1 SEE NOTES IN FIGURE 54
ATEX
APPROVED
ENTITY
DEVICE
HAZARDOUS LOCATION
NON‐HAZARDOUS LOCATION
ZONE 0, Ex ia IIC
Ui = 30 VDC
Ii = 226 mA
Ci = 50 nF
Li = 0.55 mH
Pi = 1.4 W
ATEX APPROVED
BARRIER
NON‐HAZARDOUS LOCATION
HAZARDOUS LOCATION
ENTITY FIELDBUS LOOP
ATEX
APPROVED
FISCO BARRIER
ATEX APPROVED
FISCO
TERMINATOR
ATEX
APPROVED
FISCO DEVICE
FISCO LOOP
1 NOTE 1, 3, 4
NOTE 1, 3 1
NOTE 5 1
1 NOTE 2, 3, 4
NOTE 2, 3 1
GE42818 Sheet 10, Rev. B
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C

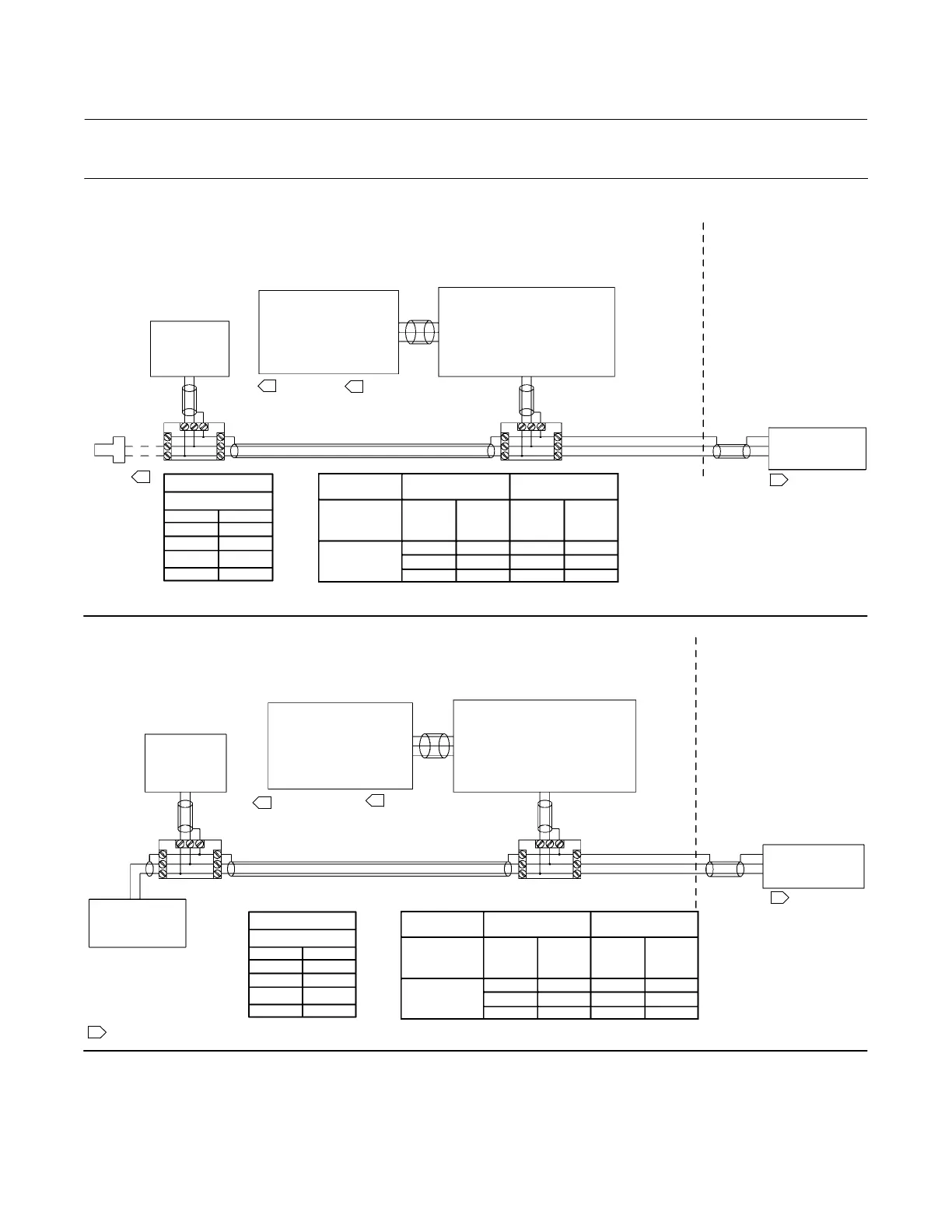

Figure 53. ATEX Loop Schematics—FIELDVUE DVC6205f, DVC6205p, and DVC6215
NOTE 1, 3 1
DVC6205f, DVC6205p
Uo = 24 VDC
Io = 44 mA
Ca = 121 nF
La = 30 mH
Po = 0.33 W
Ui = 24 VDC
Ii = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
DVC6215
NOTE 2 1
ZONE 0, Ex ia IIC
ZONE 20, Ex ia IIIC
T CODE T (amb)
T4 ≤ 125_C
T6 ≤ 80_C
T5 ≤ 95_C
MAX
SURFACE
TEMP
T(amb)
T85_C ≤ 62_C
T100_C ≤ 77_C
T103_C ≤ 80_C
ZONE 0, Ex ia IIC ZONE 20, Ex ia IIIC
ZONE 0, Ex ia IIC
DVC6205f
DVC6205p
TYPE
DVC6215
T CODE T (amb)
---- ----
T CODE T (amb)
T4 ≤ 125_C
T6 ≤ 80_C
T5 ≤ 95_C
MAX
SURFACE
TEMP
T (amb)
T85_C ≤ 62_C
T100_C ≤ 77_C
T103_C ≤ 80_C
ZONE 0, Ex ia IIC
ZONE 20, Ex ia IIIC
ZONE 0, Ex ia IIC
DVC6205f
DVC6205p
TYPE
DVC6215
T CODE T (amb)
---- ----
ZONE 0, Ex ia IIC
Ui = 30 VDC
Ii = 226 mA
Ci = 50 nF
Li = 0.55 mH
Pi = 1.4 W
DVC6205f, DVC6205p
Uo = 17.5 VDC
Io = 44 mA
Ca = 121 nF
La = 30 mH
Po = 0.33 W
Ui = 17.5 VDC
Ii = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
DVC6215
ZONE 0, Ex ia IIC
ZONE 20, Ex ia IIIC
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C
GE42818 Sheet 9, Rev. B
