Application Guide Chapter 4
GFK-2928C Oct 2019
Toolchest Components 10

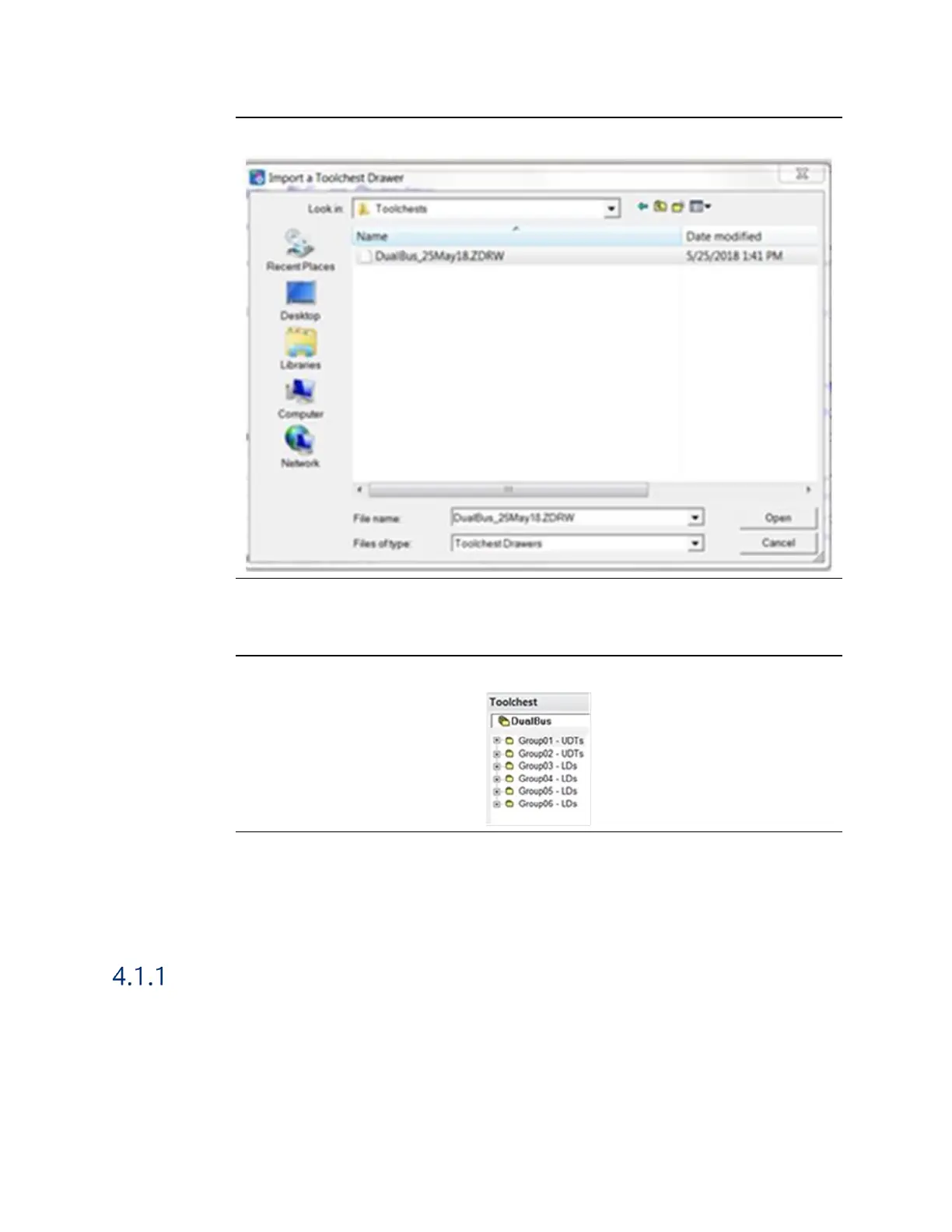

Figure 7: Select Toolchest Drawer File to Import
The Toolchest now contains the DualBus drawer. Using the dropdown text box, click on
DualBus. Expand the drawer so that the individual folder items are visible as shown below:
Figure 8: Folders in DualBus Drawer
4.1 Add Toolchest items to your project
While depressing the Ctrl key, drag the following items from the Toolchest’s DualBus folders
into the PLC target. Please make certain that the items are added in the proper order:
Place into User Defined Types
Group01 – UDTs
•
GCG
•
G_Device
Group02 – UDTs
•
G_Bus
