Unpack tap components.
On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
a
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
We are delighted that you have chosen the InSinkErator
®
steaming hot water tap
to be a part of your home. This unique appliance will save you time and effort in the kitchen,
and you’ll enjoy discovering new uses for it each day. That’s exactly why millions of people are
now using an InSinkErator steaming hot water tap.
We are confident that by following our step-by-step instructions, you’ll soon be enjoying the
convenience of instant hot water.
For your satisfaction and safety, read all instructions, cautions and warnings before installing or using this
steaming hot water tap.
This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.
A standard grounded electrical outlet is required under the sink for the tap’s electrical power.
The wall outlet powering your tap must have power supplied to it continuously.
This outlet must be fused and should not be controlled by the same wall switch that operates the disposer,
unless you have a SinkTop Switch
™
from InSinkErator
®
.
Tap must be installed such that the outlet opening is greater than 25mm above the overflow rim of the sink.
It is recommended that a dedicated control valve be installed on the cold water line supplying water to this system.
If you suspect elevated levels of chlorine in your water, or your water has a rusty appearance before the
installation of this unit, it is recommended to use our water filtration system.
This product contains stainless steel. The manufacturer cannot guarantee against rusty water because of the
number of factors that are involved beyond the manufacturer’s control. However, the sudden appearance of rusty
water discharged from the hot water tap may indicate the need for service or replacement of this product.
The use of a water filter should NOT result in a drop in water pressure below 25 psi (172kPa). If it does, this
will prevent your unit from operating properly.
In Australia and New Zealand, all plumbing and electrical work must be completed by a qualified tradesperson.
The installation must conform to AS3500.4.1 or AS/NZS 3500.4.2 (Clause 9.b).
In Australia, an Australian water mark approved 350 kPa set pressure limiting valve and dual check valve must
be used. Ambient (room) temperature between 10ºC and 38ºC.
Moving parts inside the tank causing a rattling noise is normal.
WHAT YOU SHOULD KNOW BEFORE YOU BEGIN
n Phillips and flat blade screwdrivers
n Pencil
n Tape measure
n Level
Equipment You May Need:
Equipment Required:
n Drill
n T-fitting
n Dedicated control valve
n Adjustable wrench
n Phillips and flat blade screwdrivers
n Pencil
n Tape Measure / Ruler
n Level
Anchors for drywall
Hole saw
Basin wrench
Hole punch
If you intend to use the sprayer hole in your sink for your tap, you may need a basin wrench and a
3mm plug or a 6mm cap (not supplied) for the sink spray hose line. See Step 1-B.
If you need to cut a mounting hole in your stainless steel sink, you may need a 32mm – 38mm hole
saw made for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a
surface other than stainless steel.
WHAT YOU NEED TO GET STARTED

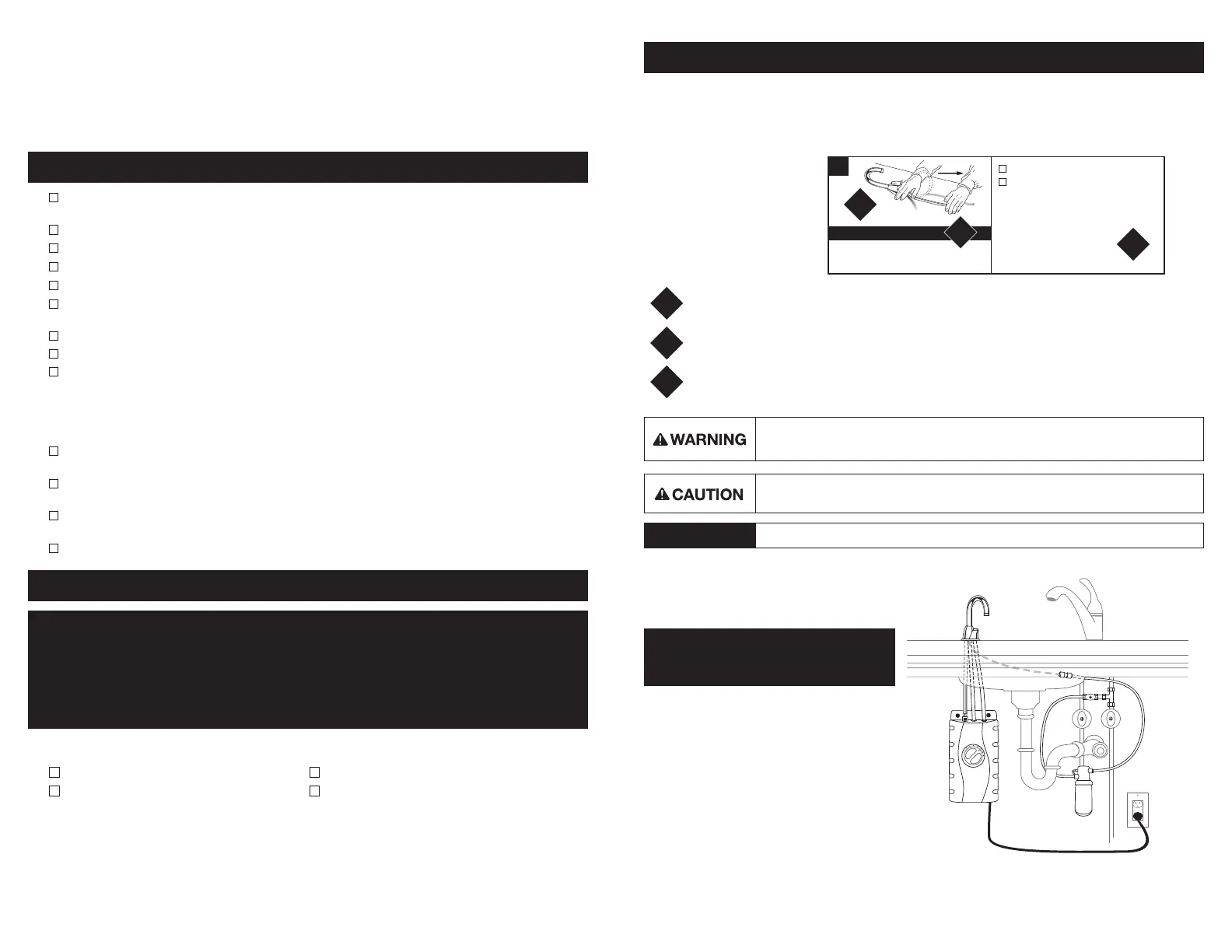

HOW TO USE THIS INSTRUCTION MANUAL
These instructions are separated into main sections, indicated by numbers, and
subsections, indicated by capital letters. The manual is setup this way to allow you to
take a break at any point after completing a section or subsection without affecting
the installation process.
What you’ll see in the
instruction manual:
1
2
Provides a step-by-step narrative describing the installation step, with check boxes
that can be marked as you progress through the installation.
Contains simple illustrations that provide visual instruction to support the narrative.
IMPORTANT SAFETY MESSAGES that will require your attention during the step.
1
2
3
OVERVIEW OF A
COMPLETED SETUP
3
2
Warning indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
Caution indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
Notice is used to address practices not related to personal injury.
NOTICE
NOTICE
NOTICE
NOTICE
3
