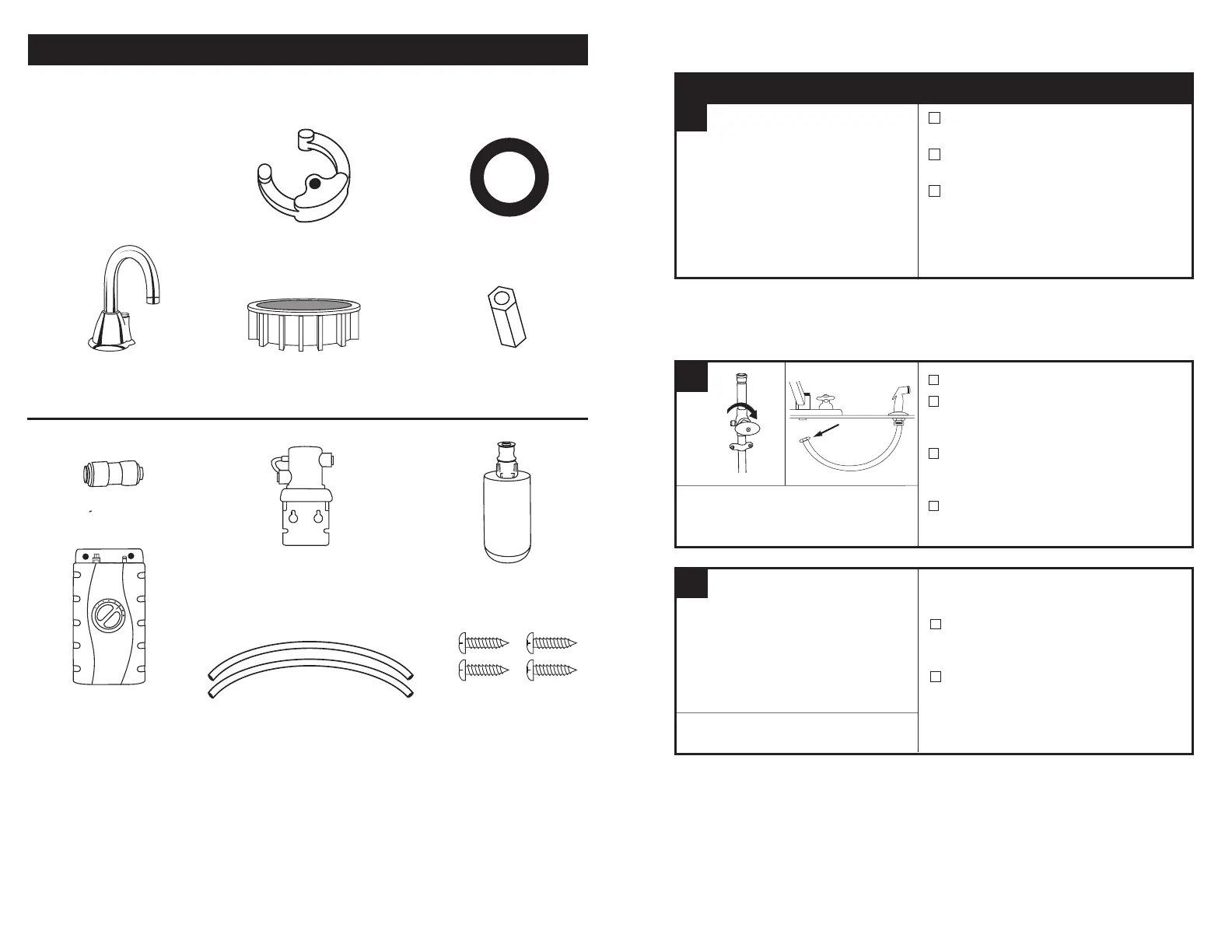

COMPONENTS IN THIS PACKAGE
The wall outlet for your tap must have power supplied to it continuously
and must be fused. It should not be controlled by the same wall switch
that operates your disposer, unless using an InSinkErator SinkTop Switch
™
.
PREPARATION
START HERE
Identify locations for the tap, tank
and filter (if applicable).
Check to make sure counter is
51mm thick or less.
Make sure there is a grounded
electrical outlet under the sink.
Turn off water supply.
If using the sink sprayer hose hole,
remove nut that connects sprayer
hose at bottom of faucet.
Using adjustable wrench, remove nut
connecting sprayer washer flange in
sprayer hole.
Plug hose opening with either a 3mm
plug or a 6mm cap (not supplied).
1
a
b
If you have to drill through sink or
countertop, you may need to rent or
purchase the appropriate tools.
Consult a professional before drilling into
a surface other than stainless steel.
c
What if you don’t have a sprayer hole
or don’t want to use it?
Many homeowners replace the
soap dispenser in their sink with a
steaming hot water tap.
If drilling a hole into a stainless steel
sink or counter top, you can cut a
mounting hole for the tap with a hole
saw for stainless steel, or you can
use a hole punch.
51mm
51mm
32mm – 38mm
Required minimum from
center of hole to wall
Maximum counter thickness is
Required Hole Size
HWTF-1, -2, -3
HWT-LAMONA
Filter Head
6mm Tubes (2)
Filter Cartridge
Semi-circular
Mounting Plate
Plastic Spacer
Rubber Washer
19mm (4)
Quick Connector
H-HOT100
Long Nut
5
4
