Property Damage: Do not pinch or break copper
tubing. Do not distort the last 25mm of tubing.
2

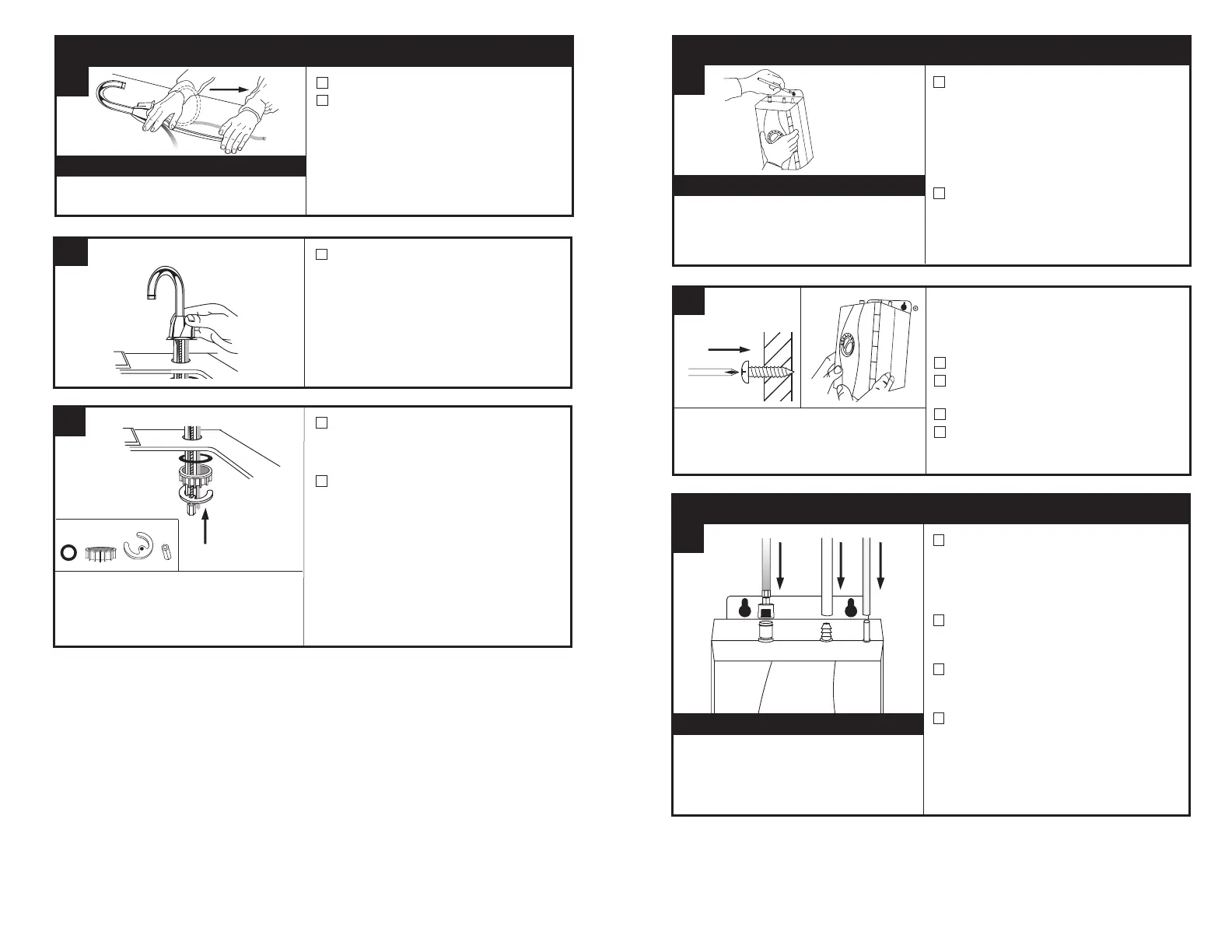

Unpack tap components.
On a firm, flat surface, carefully
straighten the copper tubing using
hands only.
Feed tubes down the hole in
the sink or countertop until the
base is at rest on the sink or
countertop surface.
From under the sink, place the
rubber washer, plastic spacer and
semi-circular mounting plate onto
the threaded stud.
Place long nut onto the threaded
stud. Make sure tap head is at the
desired angle. Tighten the long nut
until snug, while ensuring the semi-
circular mounting plate extends
beyond the sink hole.
Do not over tighten long nut. May cause
damage to faucet.
For sinks thicker than 25mm the plastic
spacer is not required
An assistant may be needed to hold
the tap head in place
while securing the tap.
INSTALLING THE TAP
b
a
c
a
Select a spot under the sink to
mount tank vertically within reach
of both plumbing and electrical
connections. The tank should be
within 400mm or less of faucet water
lines and within 760mm or less of a
standard grounded outlet.
While holding tank in place on
the spot selected for installation,
use a pencil to mark locations for
2 hanging screws.
Property Damage: Tank must be located
within 400mm of tap and within 760mm or less
of a standard grounded outlet. DO NOT
extend plumbing or electrical lines.
3
Tank must be
mounted level
to ensure
proper operation.
Mount tank vertically in an area that allows
clearance on the underside of the tank for drainage,
if necessary. DO NOT over tighten screws.
Pre-drill 3mm pilot holes at marks.
Turn screws into pre-drilled holes,
leaving 6mm exposed.
Hang the tank on the screws.
Tighten the screws with only
1/2 turn clockwise.
b
Screws provided are for use in wood
studs or cabinets only. Use wall anchors
(not supplied) for installation into drywall.
Leave 6mm for
hanging tank.
MOUNTING THE TANK
Without depressing the gray button,
place the snap-connect fitting at
the end of the blue 6mm tube onto
the left fitting on the tank, pushing
until it clicks into place. (1)
Slip the flexible white 11mm tube
over barbed steel fitting and slide
down approximately 13mm. (2)
Slip the clear 8mm tube over the
smooth plastic fitting and slide down
approximately 13mm. (3)
Visually check for pinched or
crimped tubes.
4
a
Property Damage: Pinched or blocked water
lines may cause damage to the tap tank. Check
to make sure tubes are connected
properly and are pushed down as far as possible.
Hose clamps are not needed for any
of the connections.
CONNECTING FAUCET TO TANK
(1) (2) (3)
7
6
To Next Page
