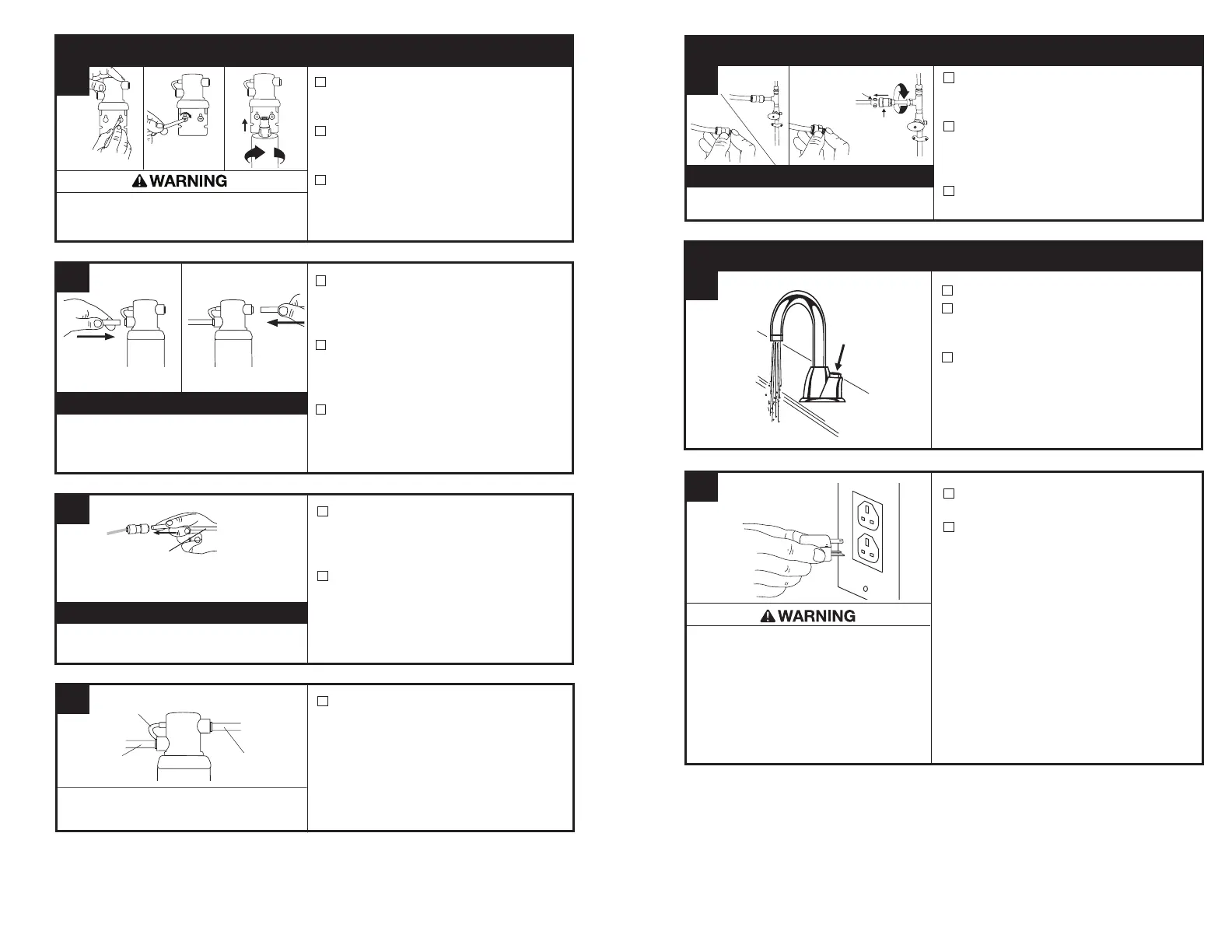

n Mark hole locations for filter head
and bracket in a spot that allows for
filter replacement.
n Drill 3mm starter holes and attach
bracket to wall with wood screws,
turning until snug.
n Remove red filter cap, insert filter
cartridge into filter head and twist
clockwise until “LOCK” arrow on the
filter aligns with arrow on bracket.
Personal Injury: Do not locate filter above an outlet or other
electrical device. Install head and bracket so that connections
require no stretching, kinking or pinching of tubing.
5
n Determine length of tubing
required, then cut to length making
sure the cut is perpendicular and
burr-free.
n Insert a white 9.5mm tube into
inlet side of filter head until it stops.
Press in again to ensure a
secure fit.
n Insert the other white tube into
outlet side of filter head until it
stops. Press in again to ensure
a secure fit.
Property Damage: Tube runs need to form to the cabinet’s
contours to allow storage space with no sharp bends. Tubes
need clean, perpendicular, burr-free cuts to ensure a true fit.
From water
supply line
To tap
n Insert the copper tube(s) from the
tap into the 9.5mm to 6.35mm
quick-connector. Press in again to
ensure a secure fit.
n Connect the white tube from the
right outlet on the filter head into the
quick-connector until it stops. Press
in again to ensure a secure fit.
Property Damage: Do not extend the
copper lines farther than the 40cm provided.
n To redirect filter replacement water
discharge, place 150mm clear tube
over vent hole on the left side of
filter head.
It is normal for approximately 60 ml of
water to discharge when filter is removed.
Discharge tube
From water
supply line
To tap
INSTALLING FILTRATION
From filter or
water supply line
NOTICE
NOTICE
a
b
n Turn on the cold water supply.
n Depress the tap’s hot button and
hold it until water flows from the
spout (approximately 1 to 2 minutes).
n Run the water for at least 4 minutes
to flush lines.
7
FILL TANK & THEN CONNECT POWER
a
Scalding Hazard: The faucet dispenses
near-boiling water which can
instantly cause scalds or burns. Use care
when operating this appliance.
n Check all connections to ensure they
are tight and that there are no leaks.
n Plug in instant hot water tank.
Water will be cold at first.
Allow 12-15 minutes for water to reach
target temperature.
Gurgling or hissing is normal during
the initial heating cycle.
Electric Shock Hazard: A standard grounded
outlet within 760mm of the tap is
required under the sink. Do not use an
extension cord set with the tap.
b
Property Damage: Join remaining
tube to cold water supply only.
n (UK) At the other end of the white
tube from the filter, install a 9.5mm
connection to the water supply.
n (AUS) 9.5mm to 6.35mm bspt
John Guest fitting and connect to
a female 6.35mm bpst fitting water
supply.
n Press in again to ensure a secure
fit.
FINAL WATER CONNECTION
6
a
c
D
9
8
UK AUS
Back flow
protection valve
Wall mount
clip
NOTICE
