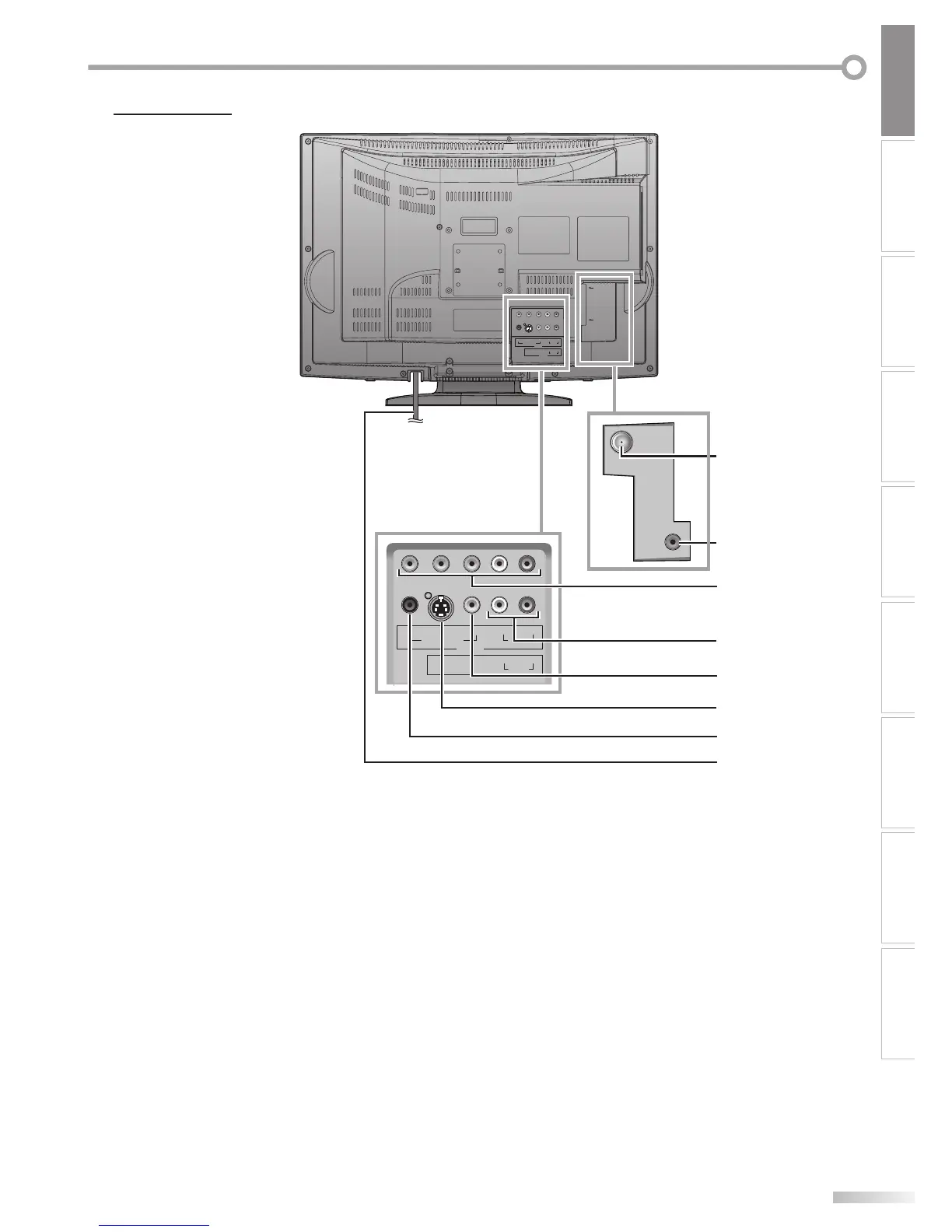

Rear Panel5
1. ANT jack (p10)
RF coaxial cable connection for your antenna or cable
box.
2. HEADPHONE jack
Headphone connection for personal listening.
3. COMPONENT and AUDIO input jacks (p11)
Component video cable connection for an external
device.
Use component video and audio output jacks of an
external device.
4. AUDIO input jacks (p11)
RCA audio cable connection for an external device.
5. VIDEO input jack (p12)
RCA video cable connection for an external device.
6. S-VIDEO input jack (p11)
S-video cable connection for an external device.
7. COAXIAL (digital audio) output jack (p12)
Digital audio coaxial cable connection for a decoder or
an audio receiver.
Use digital audio input jack of an external device.
8. AC power cord
Connect to a standard AC outlet to supply power to
this unit.
