Connection and Operation
The wiring configuration is shown as the following procedure:
a) Remove the small cover of the terminal block
b) Use 2.5mm
2
wires for wiring configuration
c) Upon completion of the wiring configuration, please check whether the wires
are securely affixed.
d) Put the small cover back to the rear panel.

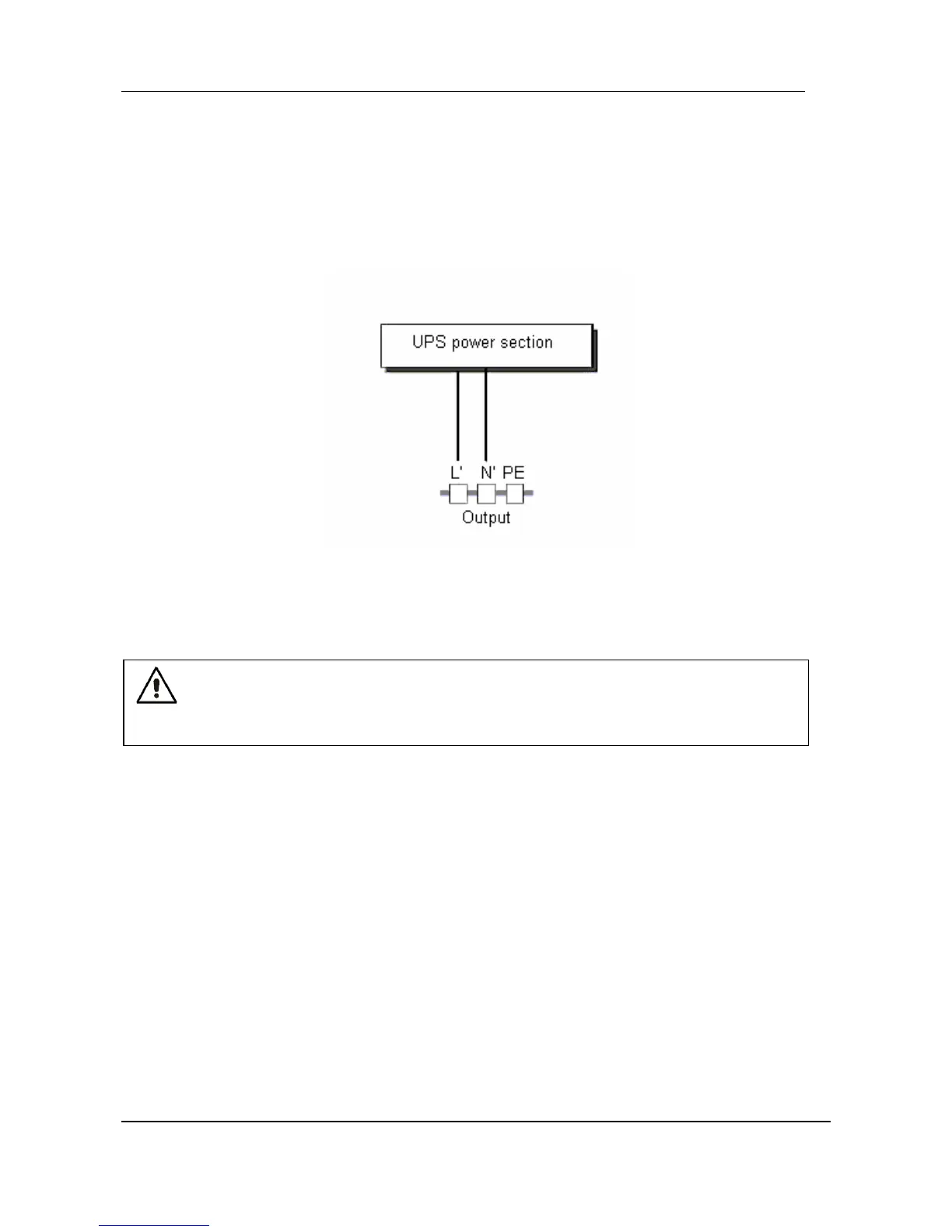

Figure 2: Connection diagram
2.3) Computer Connection:
Connect your computer to the outlet sockets of the UPS system following the above diagram.
3) Battery Charge:
Fully charge the batteries of the UPS system by leaving the UPS system connected to the mains for 8
hours. You may use the UPS system directly without charging it but the stored energy time may be
shorter than the nominal value specified.
Caution!
*Do not connect e
q
ui
p
ment, such as laser
p
rinters, which ma
y
overload the UPS s
y
stem
