COM wiring is the same polarity as E2 and E3.
• + On the Com port goes to + on the VFD.
•
- On the Com port goes to - on the VFD.
• Do NOT connect shield to any terminal on the controller or VFD. Connect shield directly to Earth Chassis at the
controller; clip and insulate shield at VFD end of cable.
• If VFD is the last device at end of Com segment, terminate with 150 ohms between terminals 2 and 3.

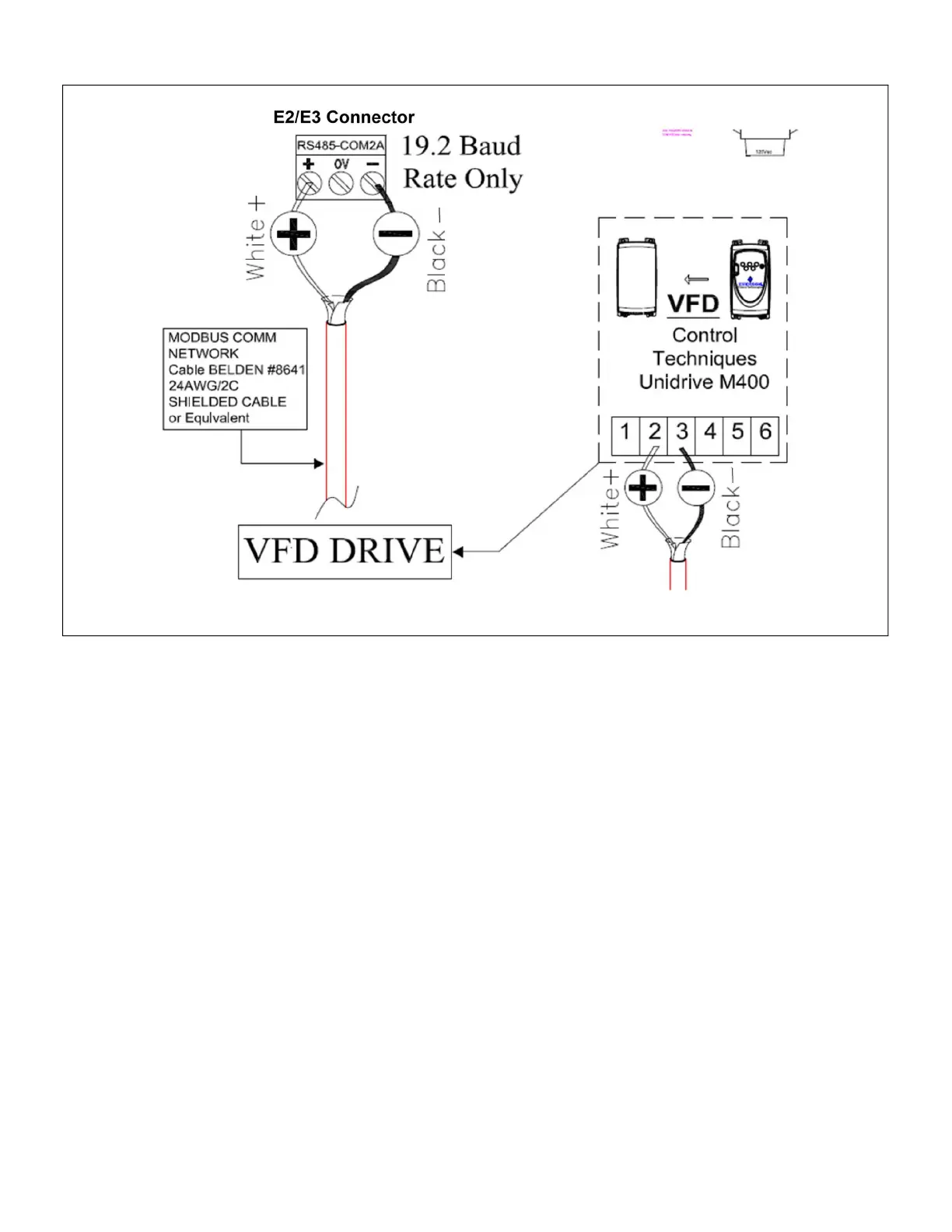

Figure 6 - Wire the M400 VFD Device to E2/E3
