Chapter 2 Installation Instruction 5
NetSure 211 C23 Embedded Power Supply System User Manual
279
Front view
Top view
461
428
482
32
43

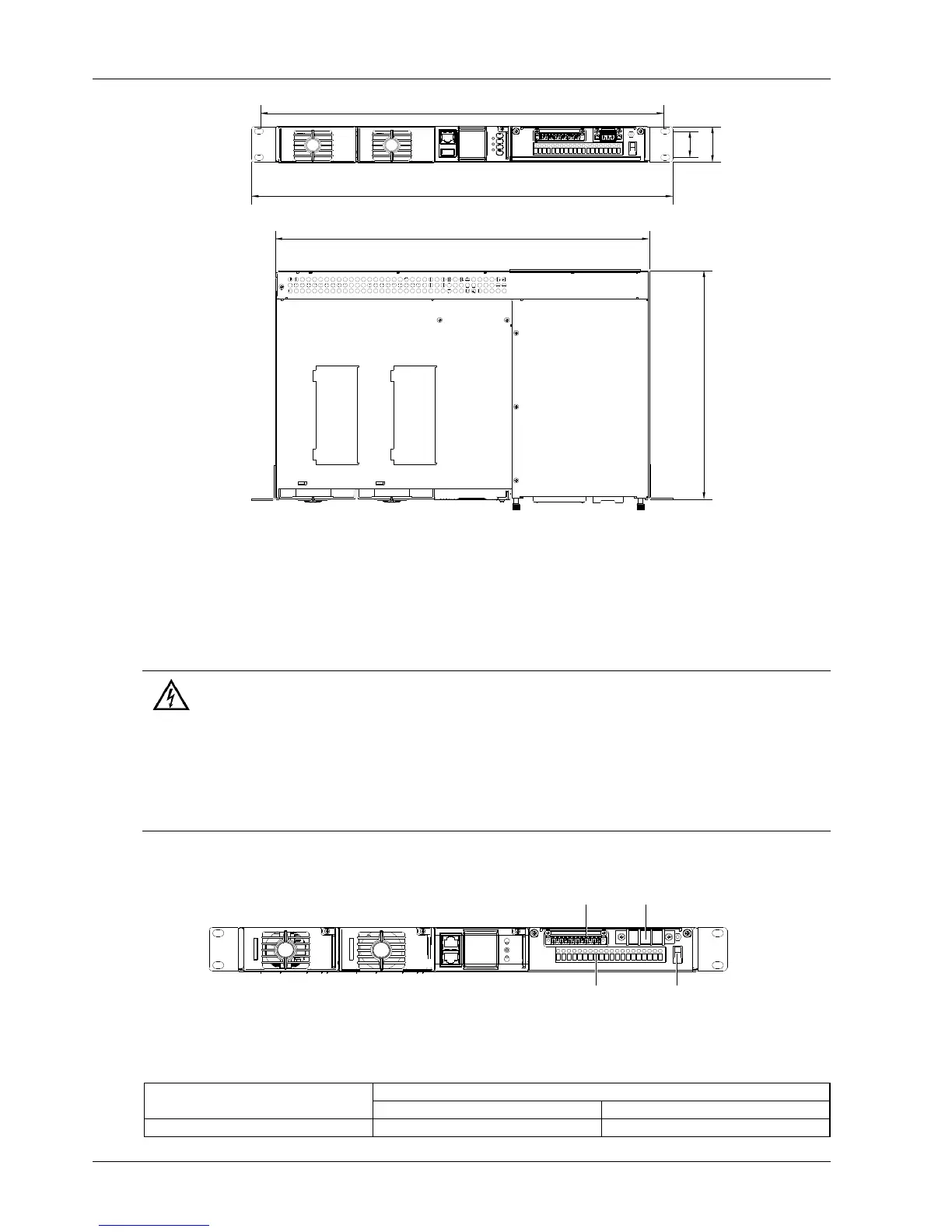

Figure 2-2 Installation dimensions (unit: mm)
2.4 Electrical Installation
2.4.1 Connecting Power Cables
1. Switch off all MCBs and fuses before the electrical connection.
2. Only the qualified personnel shall do the power cable connection.
3. The batteries may have dangerous current. Before connecting battery cables, make sure that the battery fuses at the system side
and the battery MCBs at the battery side are switched off. If there are no battery MCBs at the battery side, you should disconnect
any one of the connectors between battery cells to avoid live state of the system after installation.
4. Be careful not to reversely connect the battery. Otherwise, both the battery and the system will be damaged!
The positions of connection terminals are shown in Figure 2-3.
DI/DO/temperature probe terminals
AC input terminals
(removing plastic cover)
DC output terminals Battery terminals
Figure 2-3 Connection terminals
Refer to Table 2-5 to connect the input and output cables.
Table 2-5 Connection descriptions of input and output cables
To Next Page
