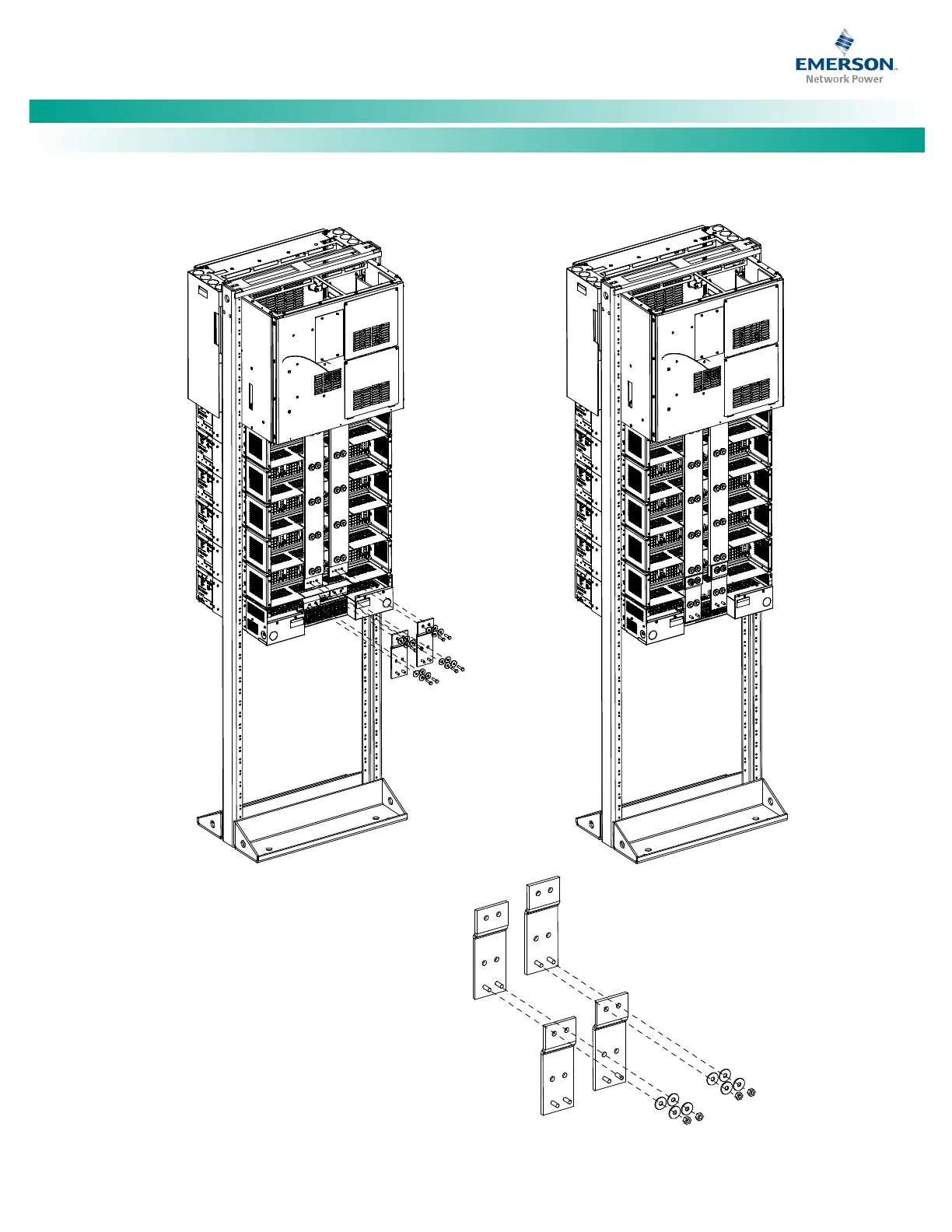

Figure 8. Installing a Field Expansion Module Mounting Shelf Spec. No. 588705000 (cont’d from previous page)
Rear View
(Install Output Busbars from Kit)
Completed View
1st
Expansion
Shelf
2nd
Expansion
Shelf
