Emerson NetSure 721NPBB User Manual

NetSure
™
-48V DC Power System
User Instructions, UM582127000 (Issue AD, January 20, 2014)
Spec. No: 582127000 Code: UM582127000
Model No: 721NPBB Issue AD, January 20, 2014
[14]

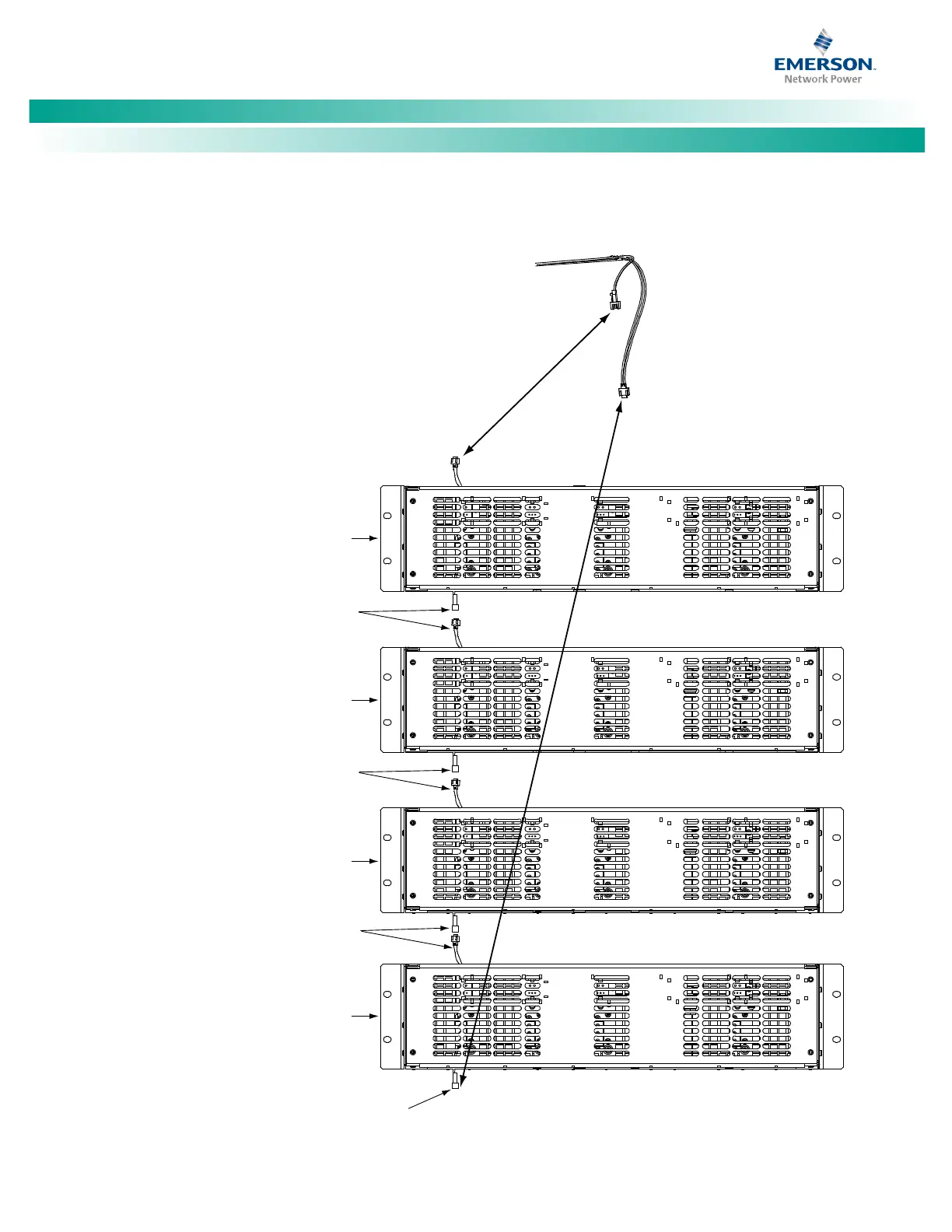

Figure 9. ACU+ CAN Bus, Module Mounting Shelf Spec. No. 588705000
Distribution
Cabinet Wire
Harness
Brown and
Brown/White Wires
Slate and
Slate/White Wires
Existing
Module Mounting Shelf
Existing
Module Mounting Shelf
These cables are
factory co
nnected.
These cables are
factory connected.
These cables are
factory co
nnected.
Existing
Module M
ounting Shelf
Expansion
Module Moun
ting Shelf
Exploded View Shown to Illustrate Wire Connections Only
Disconnect cable coming from distribution
cabinet from this connector on bottom-most
existing shelf, then connect to the
top connector on the expansion shelf.
Connect the cable disconnected above
(coming from distribution cabinet) to bottom
connector on expansion shelf.
