NetSure
-48V DC Power System
User Instructions, UM582127000 (Issue AD, January 20, 2014)
Spec. No: 582127000 Code: UM582127000
Model No: 721NPBB Issue AD, January 20, 2014
[41]

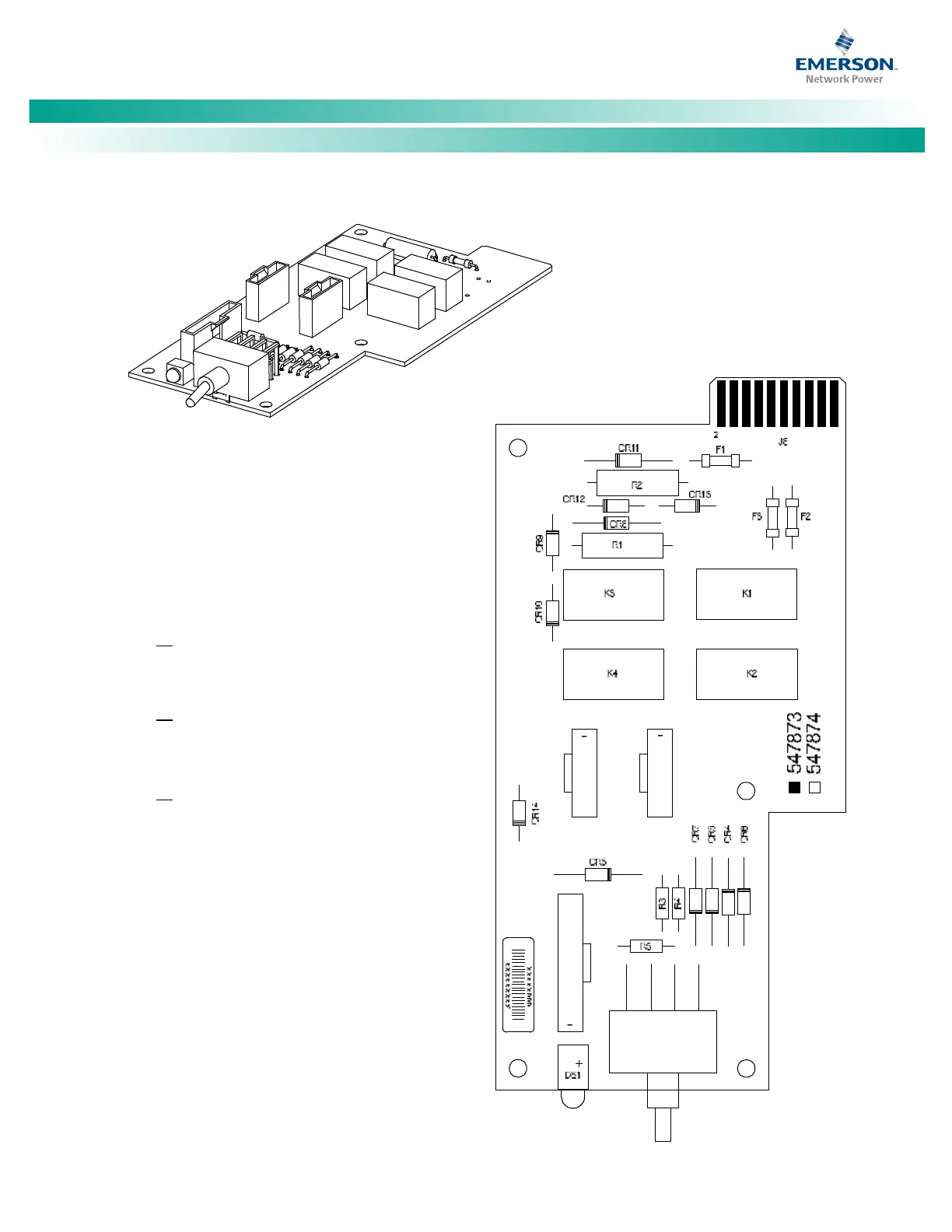

Figure 26. Optional LVD Driver Lite Circuit Card Connector Locations
Notes:
1. Connects up to (2) LVD
contactors rated at 600A or less.
2. Only one (1) contactor per level
can be accommodated. J2 and J3
are on Level 2, only one (1) of these
connectors can be used at a time.
3. Switch and indicator located
on circuit card installed in
Main Bay only.
J1
To LVLD contactor, uses AC
U+
LVD1 control setting (Level 1).
J3
To LVLD contactor, uses ACU+
LVD2 control setting (Level 2).
J2
To LVBD contactor, uses ACU+
LVD2 control setting (Level 2).
Can only be used if it is contained
in a List
21 (1-row) cabinet.
J1J3
J2
S1
DO NOT change a Low Voltage
Load Disconnect contactor to
LVD Control Level 2 (LVD2) if
the system is furnished with a
Low Voltage Battery Disconnect
contactor.
