20 AGL_Sol_PEC_01_E_Rev01
4.5 Connection of the digital outputs
The digital outputs are isolated from one another (no common contact).
The same voltage must always be used for the various groups of relays and within each group.
For the electrical specifications, refer to the relative paragraphs of the different models and to Table 13.
4.6 General overview of inputs and outputs

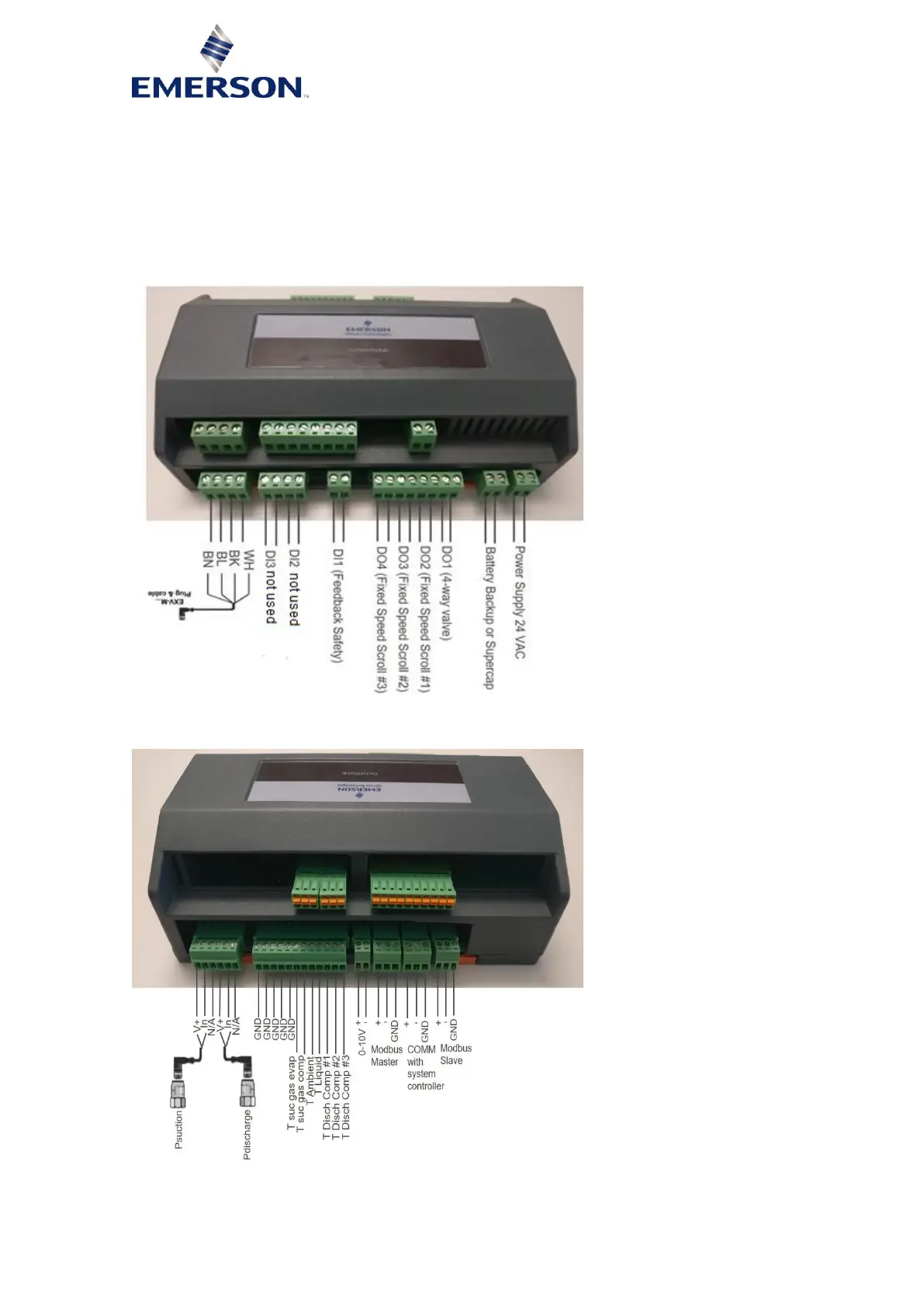

4.6.1 Circuit 1 Top side
Figure 17: Circuit 1 top side Power supply, digital outputs & inputs & EXV connections
4.6.2 Circuit 1 Bottom side
Figure 18: Circuit 1 bottom side Digital inputs, Modbus communication, pressure and temperature inputs
