Emerson QuickPanel+ IC755C S12CD Series Quick Start Guide

Quick Start Guide Section 4
GFK-2893P Sep 2019
Mounting & Installation 20

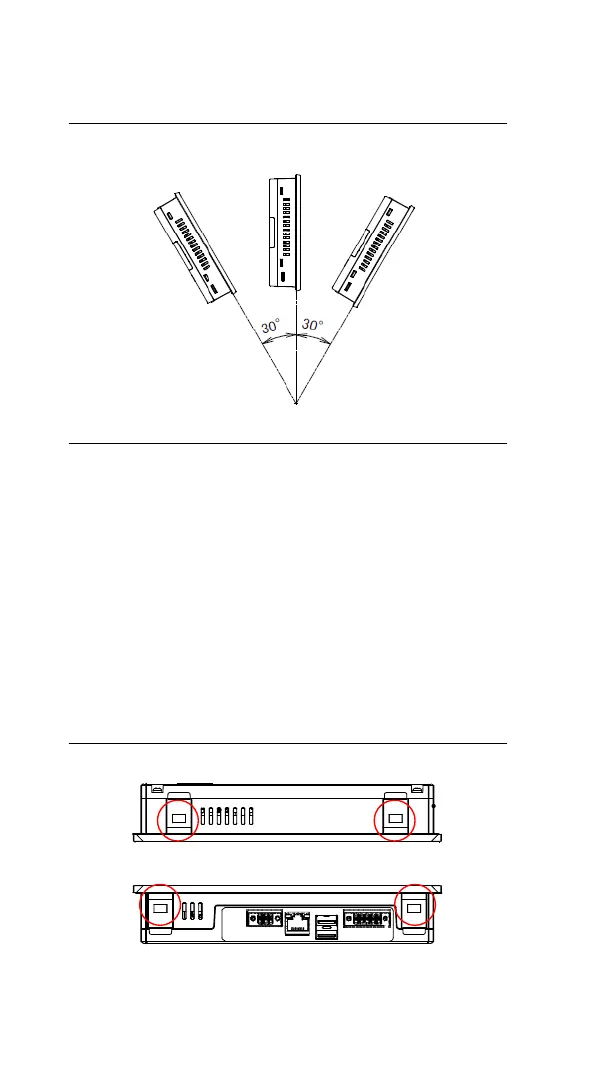

Figure 4.1: Mounting Angle
4.3 Panel Mounting
To mount the Quick Panel
+
in an enclosure, you will need
the following equipment:
• One #2 Phillips head screwdriver
• Mounting brackets (supplied)
The mounting holes for the IC755CxS06RDx,
IC755CxW07CDx, and IC755CxS10CDx are located on
the top and bottom sides of the unit.
Figure 4.2: IC755CxS06RDx Mounting Holes
