Quick Start Guide Section 4
GFK-2893P Sep 2019
Mounting & Installation 30

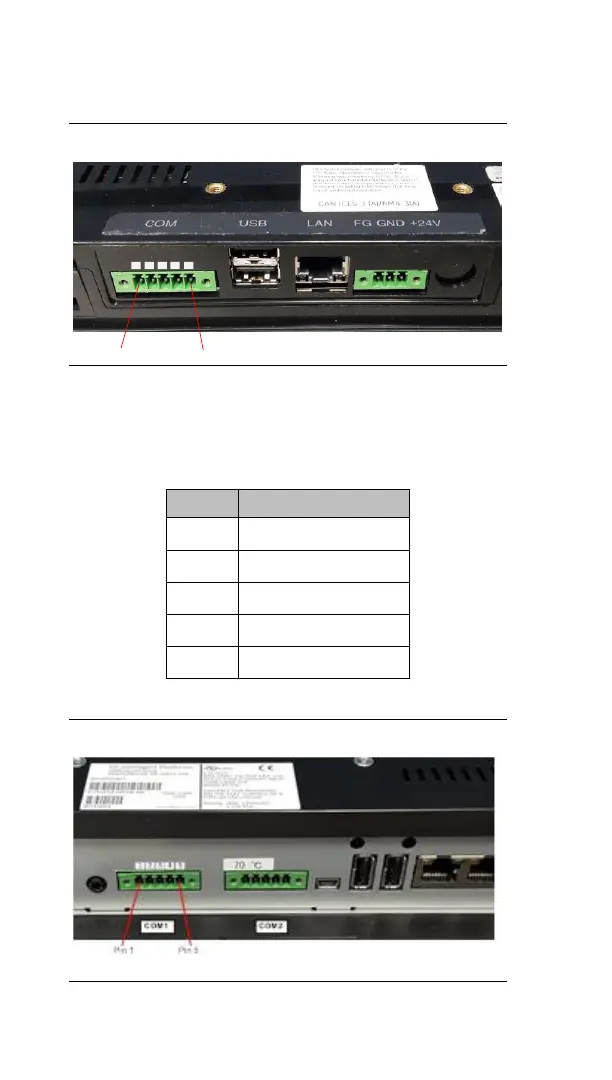

Figure 4.3: IC755CxW07CDx Serial Port COM1 Pin-out
Pin 1
Pin 5
1 2 3 4 5
4.6.4.3 IC755CxSxxCDx
4.6.4.3.1 Serial Port COM1
Interface: RS-232
Pin #
Signal Name
1
TXD
2
RXD
3
RTS
4
CTS
5
SGND
Figure 4.4: C755CxSxxCDx Serial Port COM1 Pin-out
