Installation of the Decorative Support Rods Assembly
NOTE: The following procedures are to be
performed only if you have installed the 18” or
longer downrod.

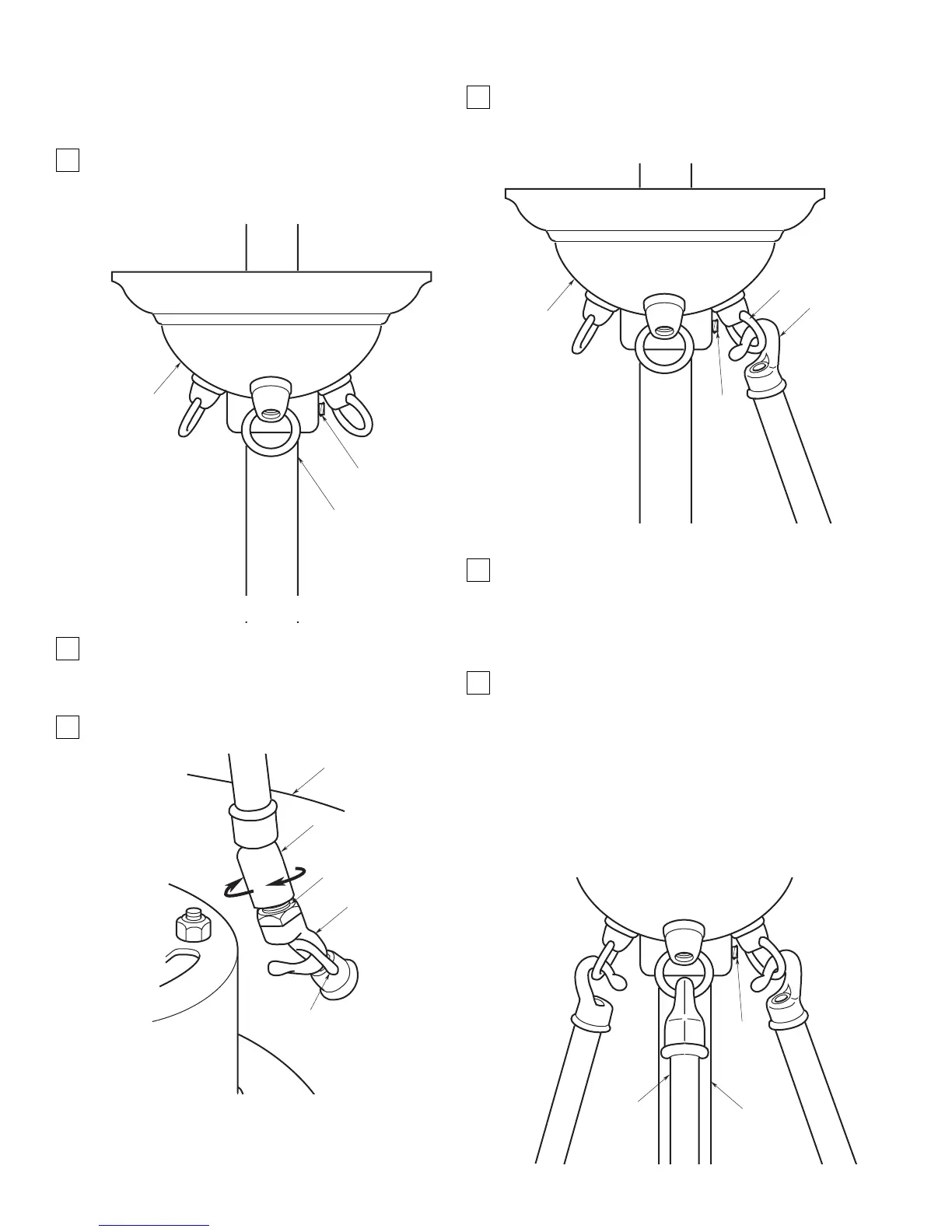

1. Loosen the setscrew in the collar of the rod
support assembly using the 5/64” hex wrench
(supplied) and slide the support assembly over the
downrod (Figure 22).
2. Verify that three or four threads are visible
between the bottom hook and the barrel of the rod
assembly (Figure 23). If necessary, turn barrel to
expose more threads. Check all rod assemblies.
3. Engage the rod hook with the ring in the shade
assembly (Figure 23).
Figure 23
4. Raise the rod support assembly and loosely
engage the rod hook with one of the rings on the
support assembly (Figure 24). Then tighten the
setscrew using the 5/64” hex wrench (supplied).
5. Engage the other two support rods in the same
manner as above. Loosen the setscrew and raise
the rod support assembly until the support rods are
taut and in line with the downrod (Figure 25). Then
securely tighten the setscrew using the 5/64” hex
wrench.
6. Tighten (rotate) the barrels of the rod assemblies
to take up any slack, thereby reducing the chance
of noise due to vibration when the fan is operating
(Figure 23).
CAUTION: To avoid breaking the glass shade, do
not over tighten the rods.
NOTE: The decorative support rods are now
installed and the fan is ready for further
installation. Continue with Step 9 in “Ceiling Fan
Assembly Procedures” Section, Page 5.
