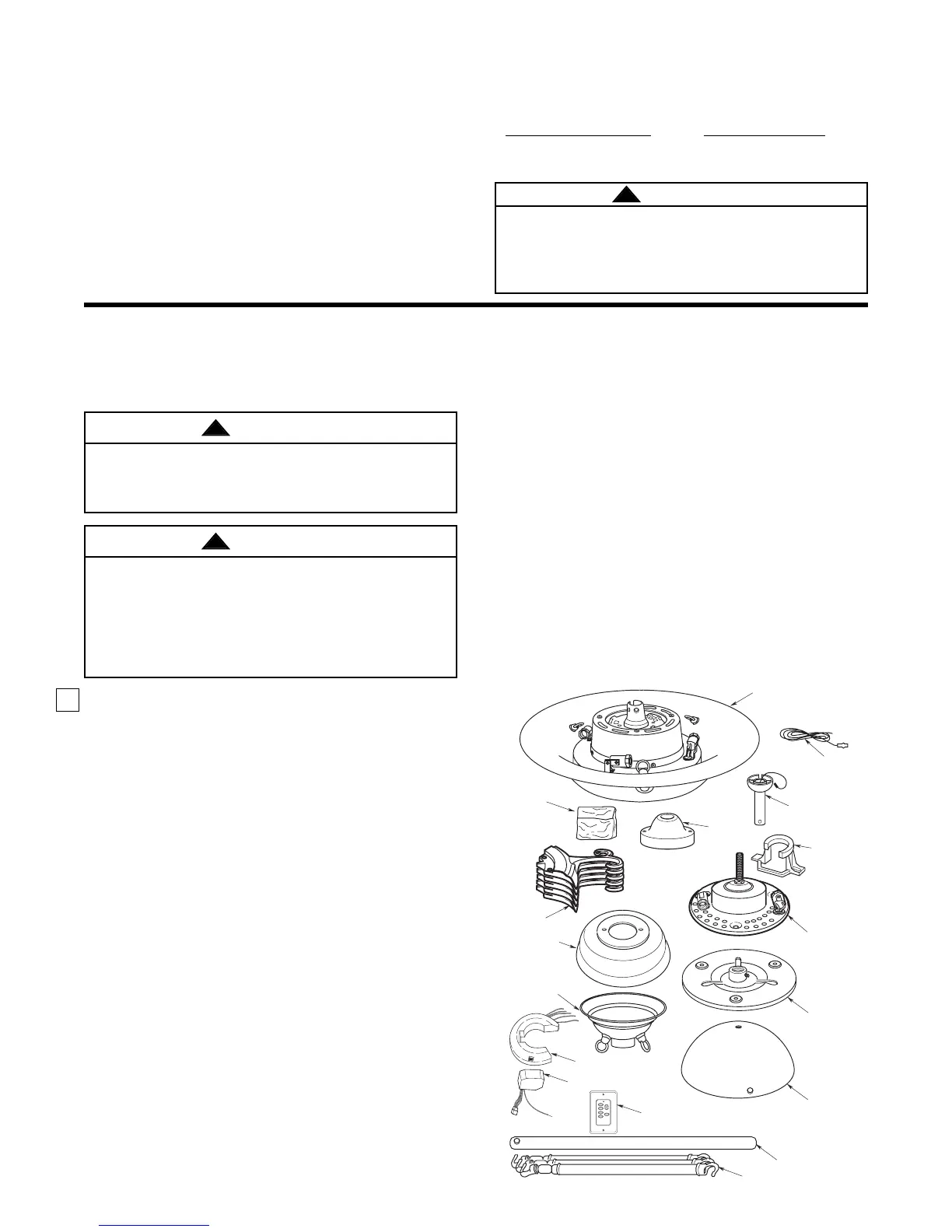

1. Open carton containing your ceiling fan. Remove
the top half of the styrofoam packing. Remove
parts and check to see that you have received the
following:
a. Fan motor housing and shade assembly
b. One motor cover
c. One ceiling cover
d. Five blade flanges
e. One hanger ball/downrod assembly
f. One hanger bracket
g. One yellow uplight lead assembly
h. One downrod, 18” length
i. Three rod assemblies
j. One rod support assembly
k. One light kit plate assembly
l. One light kit adapter assembly
m. One glass shade
n. One SW116 Fan/Light Wall Control (transmitter)
o. One SW105 Receiver (includes reversing module)
p. One loose parts bag containing:
1. One setscrew
2. One 5/32” hex wrench
3. One 5/64” hex wrench
4. Eleven 10-32 x 5/8" oval head screws
5. Two 1” threaded studs
6. Two 1-1/4” threaded studs
7. Four knurled knobs
8. Four lockwashers
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
Five wire connectors (supplied) One wire stripper
Four 60-watt candelabra base bulbs
Two 15-watt candelabra base bulbs (CF2605)
Two 25-watt candelabra base bulbs (CF2680)
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 4-conductor (3-wire with ground) of the following
size:
3
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a
check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
9. Five wire connectors
10. Three 5/32-32 x 3/16" screws
11. One finial nut
12. One hairpin clip
13. One clevis pin
14. Sixteen 10-32 x 3/8” pan head screws
15. Sixteen flat washers
16. One hex nut, 1/8-27
NOTE: Place the parts from the loose parts bags
in small containers to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
NOTE: Fan blades are ordered separately and are
packaged in separate carton.
Before assembling your ceiling fan, refer to “How to
Wire Your Ceiling Fan” section on proper method of
wiring your fan. If you feel you do not have enough
wiring knowledge or experience, have your fan installed
by a licensed electrician.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
WARNING
!
WARNING
!
To Next Page
