5

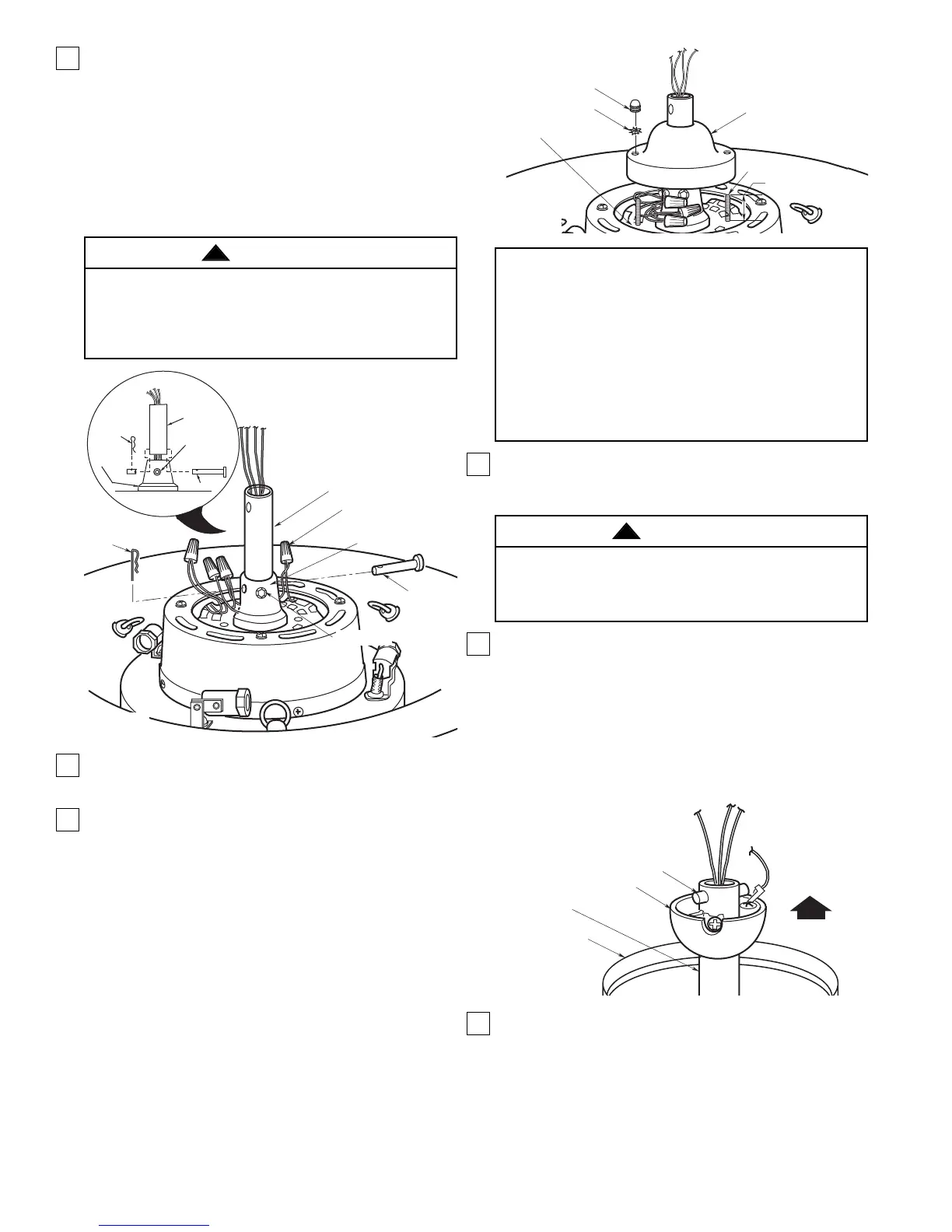

6. Align the clevis pin holes in the downrod with the
holes in the motor coupling. Install the clevis pin
and secure with the hairpin clip (Figure 2). The
clevis pin must go through the holes in the motor
coupling and the holes in the downrod. Push the
straight leg of the hairpin clip through the hole near
the end of the clevis pin until the curved portion of
the hairpin clip snaps around the clevis pin. The
hairpin clip must be properly installed to prevent
the clevis pin from working loose.
7. Install the setscrew (supplied) in the motor coupling
and tighten using the 5/32” setscrew wrench
(supplied) (Figure 2).
8. Screw two 1” threaded studs (supplied) into the
motor (Figure 3). Leave approximately 7/8” of the
stud extending above the motor. Coil the wires and
wire connectors around the motor coupling, then
slide the motor cover over the downrod and rotate
the cover until the threaded studs protrude. Install
two lockwashers (supplied) and knurled knobs
(supplied) to secure the cover to the motor. All
wires and wire connectors must be enclosed under
the motor cover.
NOTE: Lightly snug the knurled knob and make
sure the wires and wire connectors are completely
inside the motor coupling cover and not pinched
between the motor coupling cover and the motor.
DOWNROD
MOTOR COUPLING
CLEVIS
PIN
HAIRPIN
CLIP
CONNECT YELLOW
WIRES USING WIRE
CONNECTOR
SETSCREW
SETSCREW
CLEVIS PIN
MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
Figure 2
It is critical that the clevis pin in the motor coupling
is properly installed and the setscrew securely
tightened. Failure to verify that the pin and setscrew
are properly installed could result in the fan falling.
WARNING
!
9. Position the ceiling cover over the downrod. Be
sure the cover is oriented correctly, with the large
opening at the top (Figure 4).
10. Reinstall the hanger ball on the downrod
as follows. Route the motor leads through the
hanger ball and slide the hanger ball over the
downrod (Figure 4). Install the pin through the
holes at the top of the downrod and slide the
hanger ball up the downrod, aligning the ball so the
pin is captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight against the
pin and securely tighten the setscrew in the hanger
ball. A loose setscrew could create fan wobble.
11. Screw in four 60-watt (maximum) candelabra base
lamps in the housing sockets (Figure 5). Grasp the
sockets and pivot them until the lamp bulbs are
even with the top of the housing as shown. This will
provide the optimum lighting effect.
DOWNROD
PIN
HANGER BALL
CEILING COVER
Figure 4
IMPORTANT
A. If you have installed the 18” or optional longer
downrod and are planning to install the
decorative support rods assembly, proceed to
“Installation of Decorative Support Rods
Assembly” on page 10. After you have
installed the decorative support rods
assembly, continue with the following
installation procedures.
B. If you have installed the 4-1/2” downrod,
continue now with the following procedures.
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are
properly installed could result in the fan falling.
WARNING
!
7/8"
1" THREADED STUD
MOTOR COVER
KNURLED KNOB
LOCKWASHER
MOTOR
