Note
Enclosure covers must be fully engaged to meet explosion-proof
requirements.

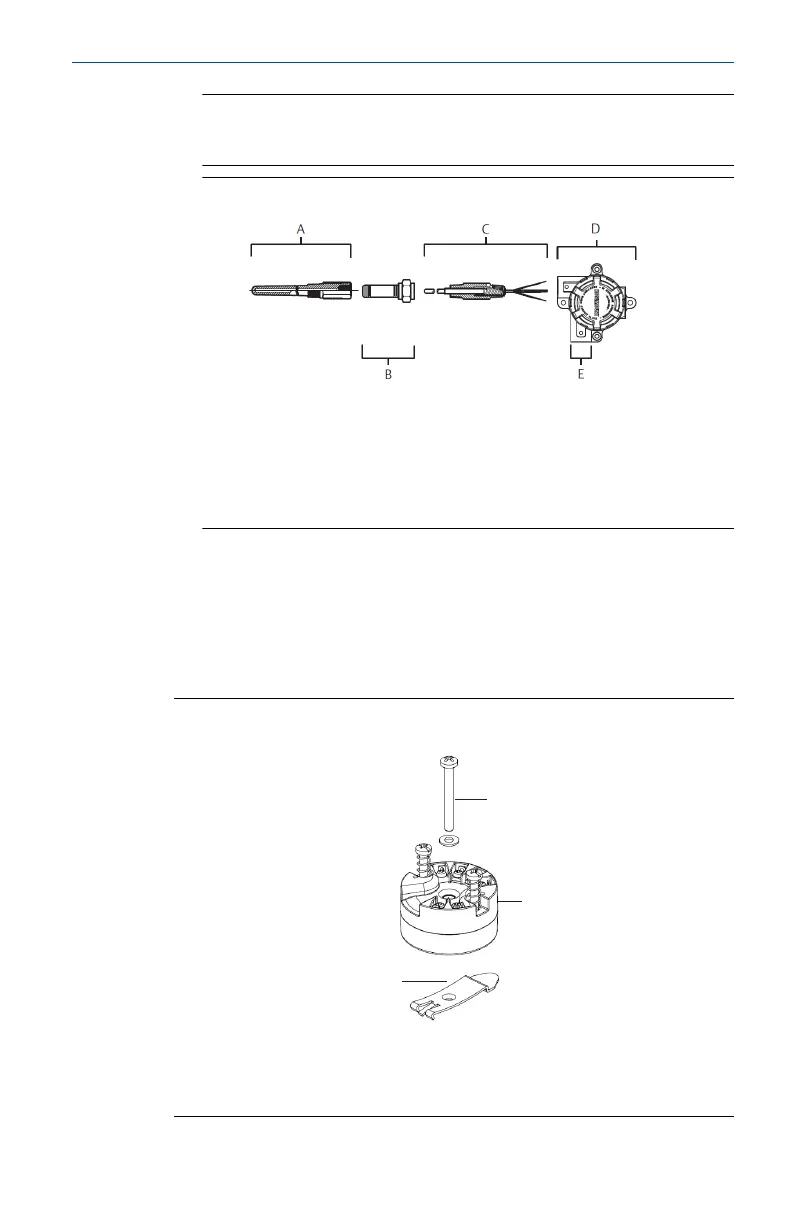

Figure 3-2: Typical North and South American Installation
A. Threaded thermowell
B. Standard extension
C. Threaded style sensor
D. Universal head
E. Conduit entry
3.4 Mounting to a DIN rail
Procedure
• To attach a head mount transmitter to a DIN rail, assemble the
appropriate rail mounting kit (part number 00248-1601-0001) .
Figure 3-3: Assembling Rail Clip Hardware
A. Mounting hardware
B. Transmitter
C. Rail clip
February 2021 Quick Start Guide
Quick Start Guide 9
