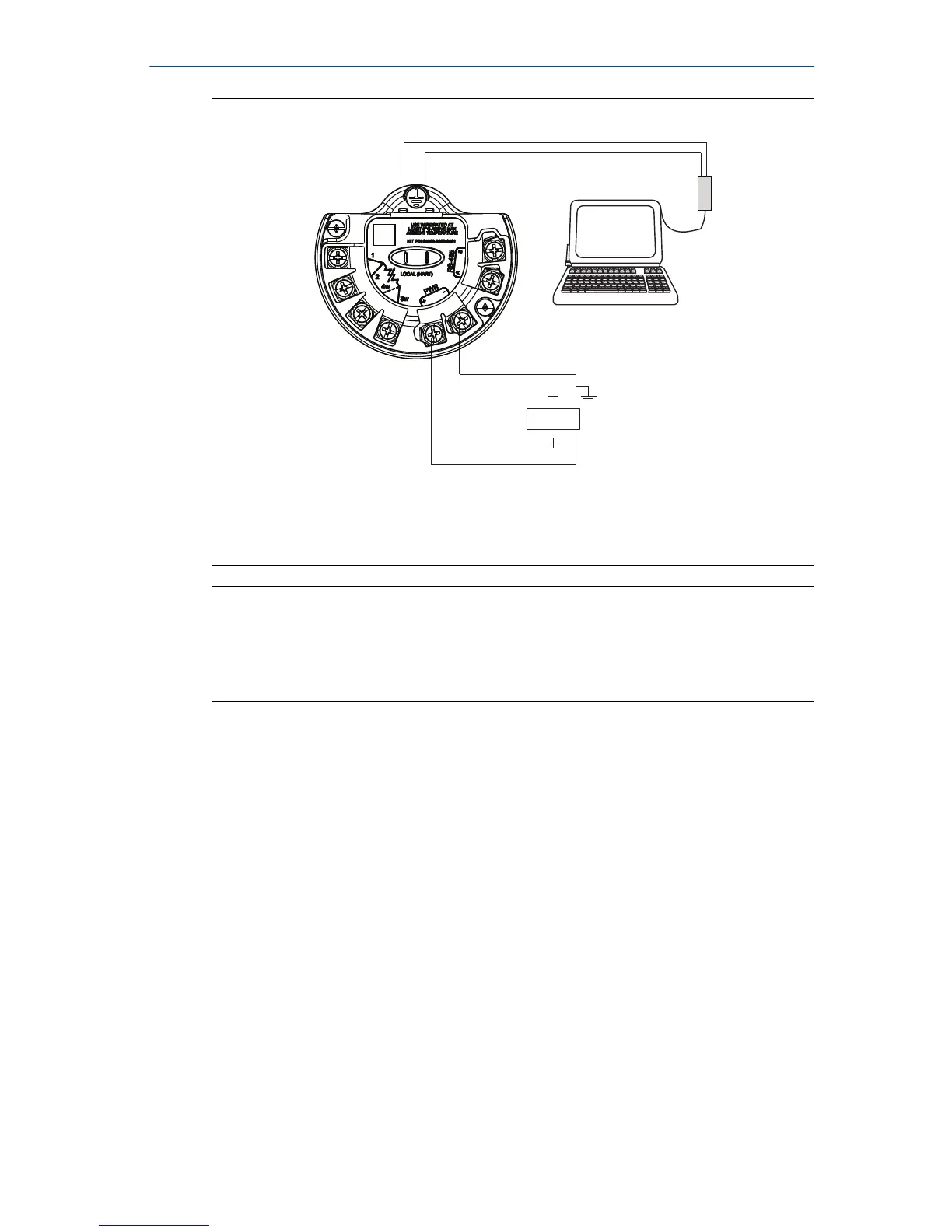

Figure 5-2: Configuration via HART
®
or BSAP (Local) Port
A
B
C
A. TechView (BSAP protocol) component of OpenEnterprise Field Tools
B. MACTek
®
Viator
®
USB HART Interface
C. User-provided power supply
Note
In the TechView component of OpenEnterprise Field Tools, specify a baud rate
of 1200 baud, and specify the transmitter’s local address. For more
information on Rosemount 4088B configuration/calibration tasks in
TechView, see the TechView User’s Guide (part D301430X012).
Configure the Rosemount 4088B either through a connection with a ROC
controller or FloBoss
™
flow computer using the ROCLINK
™
800 component of
OpenEnterprise Field Tools or through a connection with a ControlWave
™
controller or flow computer using the TechView component of
OpenEnterprise Field Tools.
